APEM Autoswitches Switches and Pushbutton

Panel Switches 666/2 – Autoswitches UAE

666/2 Industrial toggle switches for military use, available in 1-4 poles. Features neoprene protection caps and sealing/locking lever options.

Brand APEM
Category Autoswitches
Subcategory Switches and Pushbutton

Interested in this product? Panel Switches 666/2

Product insights

Everything you need to evaluate this product

Explore performance details, construction highlights, applications, and technical information in one clear overview.

Quality assured Technical details Industrial use Expert support

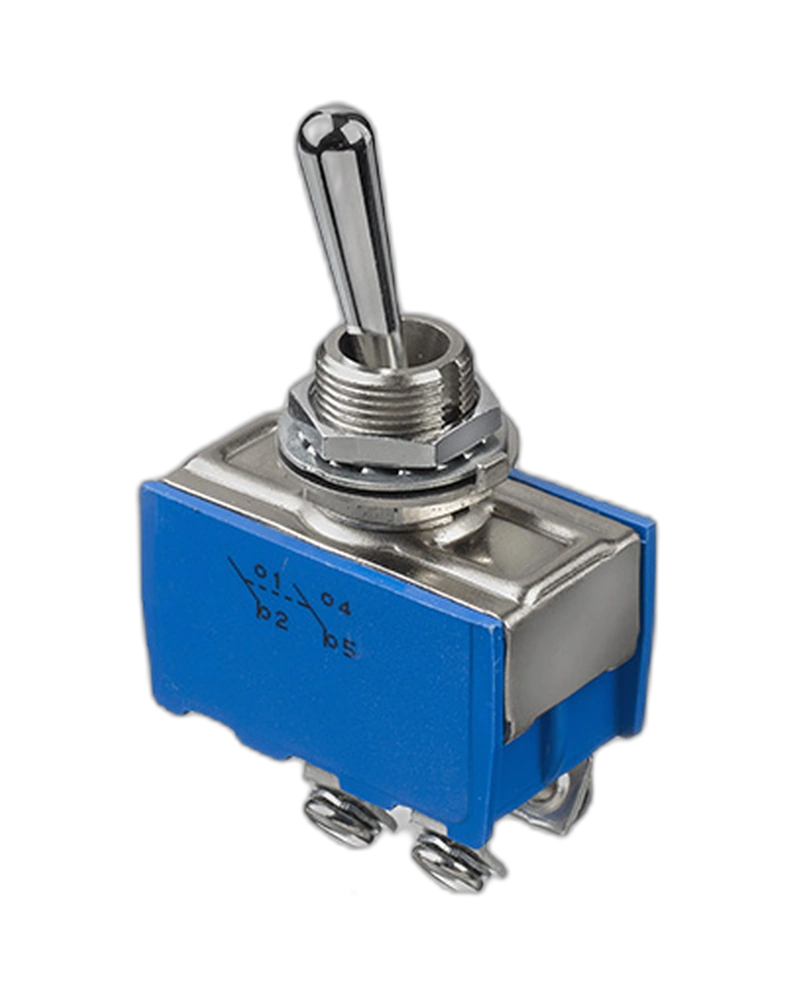

Panel Switches 666/2

666/2 Industrial toggle switches for military use, available in 1-4 poles. Features neoprene protection caps and sealing/locking lever options. Select Quantity

Key Features

Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut
Panel thickness: 5 mm (.196) max.
Insulation resistance: 1,000 MΩ min. at 500 VDC
Dielectric strength: 2,000 Vrms 50 Hz min. between terminals 3,000 Vrms 50 Hz min. between terminals and frame
Initial contact resistance: 10 mΩ max.
Electrical life: 10,000 cycles at full load
Operating temperature: -40 °C to +85 °C (-40 °F to 185 °F)
Actuator: brass, chrome plated, black Bushing : brass, chrome plated, black Contacts : A : silver
Case: diallylphthalate (DAP)
Sealing and locking lever options available Black finish on actuator and bushing
Black finish on actuator and bushing

Feature	Specification
Torque	1.50 Nm (1.10 Ft.lb) max. applied to nut
Panel thickness	5 mm (.196) max.
Insulation resistance	1,000 MΩ min. at 500 VDC
Dielectric strength	2,000 Vrms 50 Hz min. between terminals 3,000 Vrms 50 Hz min. between terminals and frame
Operating temperature	-40 °C to +85 °C (-40 °F to 185 °F)
