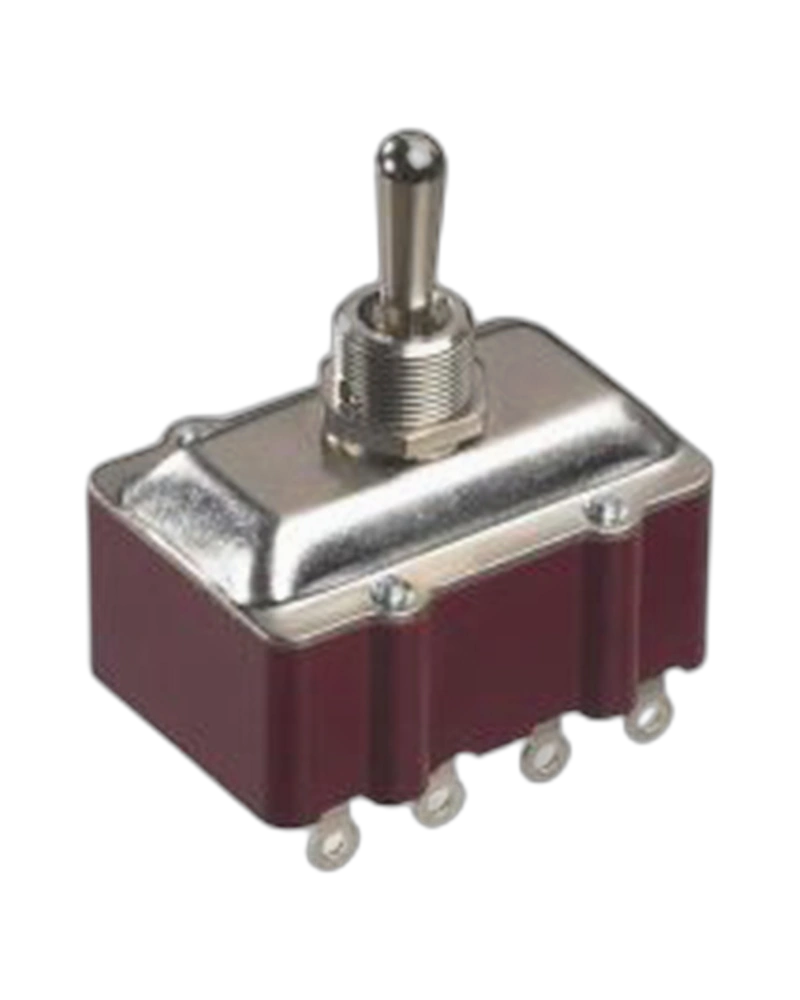

665/3T Versatile 665/3T Panel Switch with four poles and momentary on feature, ideal for controlling lighting and power in various applications. Select Quantity
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,500 Vrms 50 Hz min. between terminals2,500 Vrms 50 Hz min. between terminals and frame |
| Torque | 1.50 Nm (1.10 Ft.lb) max. applied to nut |
| Initial contact resistance | 10 mΩ max. |
| Operating temperature | -20 °C to +55 °C (-20 °F to 131 °F) |
| Number Of Poles | Four Poles |
| Feature | Specification |
|---|---|
| Panel thickness | 4.5 mm (.177) max. Four pole models |
| Max. current/voltage rating with resistive load | 10 A 30 VDC Decrease by 50 % for inductive load |
| Electrical Functions | MOM ON |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,500 Vrms 50 Hz min. between terminals2,500 Vrms 50 Hz min. between terminals and frame |
| Torque | 1.50 Nm (1.10 Ft.lb) max. applied to nut |
| Operating temperature | -20 °C to +55 °C (-20 °F to 131 °F) |
