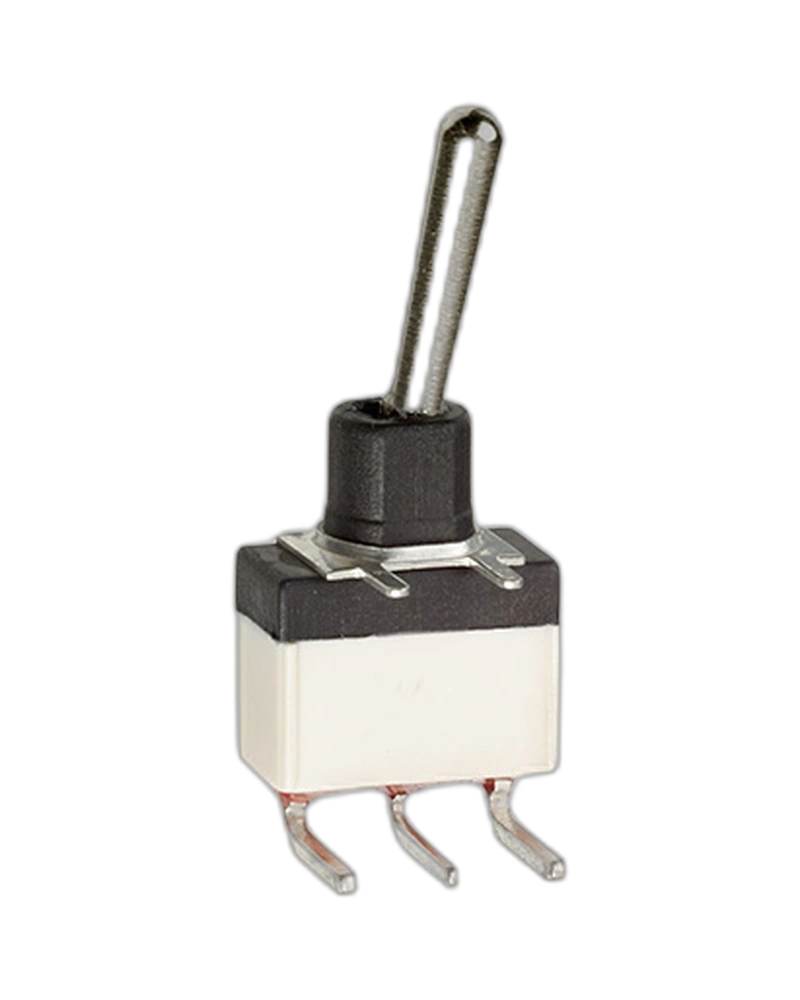

Panel Switches 6651-03

6000 6651-038K-1V/3 Case : For Other Models Finish : Black Lever with Fluorescent Tip Sealing : Front Panel Sealing with One O-Ring and Sealing Washer 6000 6651-038K-1V/3 Case : For Other Models Finish : Black Lever with Fluorescent Tip Sealing : Front Panel Sealing with One O-Ring and Sealing Washer 6000 6666-03BK-2V/3 Case : For Other Models Finish : Lever and Bushing with Grey Satin-Chrome Finish Sealing : Front Panel Sealing with One O-Ring and Sealing Washer 6666-03BK-2V/3 Finish : Lever and Bushing with Grey Satin-Chrome Finish 6000 6429-038K-2V/3 Finish : Black Lever with Fluorescent Tip Sealing : Front Panel Sealing with One O-Ring and Sealing Washer Terminals : Quick Connect 6429-038K-2V/3 Terminals : Quick Connect 6000 6658-038K-2V/2 Case : For Other Models Finish : Black Lever with Fluorescent Tip Sealing : Front Panel Sealing with One O-Ring and Sealing Washer 6658-038K-2V/2 6000 6655-038K-1V/3 Case : For Other Models Finish : Black Lever with Fluorescent Tip Sealing : Front Panel Sealing with One O-Ring and Sealing Washer 6655-038K-1V/3 6000 6645-038K-2V/2 Case : For Other Models Finish : Black Lever with Fluorescent Tip Sealing : Front Panel Sealing with One O-Ring and Sealing Washer 6645-038K-2V/2 6000 6627-03LMK-2V Case : For Other Models Finish : Nickel-Plated Bushing, Lever, and Upper Nut, Bright Chrome-Plated Sealing : Front Panel Sealing with One O-Ring and Sealing Washer 6627-03LMK-2V Finish : Nickel-Plated Bushing, Lever, and Upper Nut, Bright Chrome-Plated 6000 6655-03LMK-3V Case : For Other Models Finish : Nickel-Plated Bushing, Lever, and Upper Nut, Bright Chrome-Plated Sealing : Front Panel Sealing with One O-Ring and Sealing Washer 6655-03LMK-3V 6000 6645-03LMK-1V/3 Case : For Other Models Finish : Nickel-Plated Bushing, Lever, and Upper Nut, Bright Chrome-Plated Sealing : Front Panel Sealing with One O-Ring and Sealing Washer 6645-03LMK-1V/3 6000 6646-03LMK-2V/2 Case : For Other Models Finish : Nickel-Plated Bushing, Lever, and Upper Nut, Bright Chrome-Plated Sealing : Front Panel Sealing with One O-Ring and Sealing Washer 6646-03LMK-2V/2 6000 6627-03BK-3V/2 Case : For Other Models Finish : Lever and Bushing with Grey Satin-Chrome Fin

Key Features

• Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut
• Panel thickness: 5 mm (.196) max.
• Insulation resistance: 1,000 MΩ min. at 500 VDC
• Dielectric strength: 2,000 Vrms 50 Hz min. between terminals 3,000 Vrms 50 Hz min. between terminals and frame
• Initial contact resistance: 10 mΩ max.
• Electrical life: 10,000 cycles at full load
• Operating temperature: -40 °C to +85 °C (-40 °F to 185 °F)
• Finish: Nickel-Plated Bushing, Lever, and Upper Nut, Bright Chrome-Plated,Locking Levers:2 Locked Positions
• Actuator: brass, chrome plated, black Bushing : brass, chrome plated, black Contacts : A : silver
• Case: diallylphthalate (DAP)
• Number Of Poles: Three Poles
• Sealing: Front Panel Sealing with One O-Ring and Sealing Washer
• Terminals: Quick Connect
• Electrical Functions: ON OFF
• Sealing and locking lever options available Black finish on actuator and bushing
• Black finish on actuator and bushing
