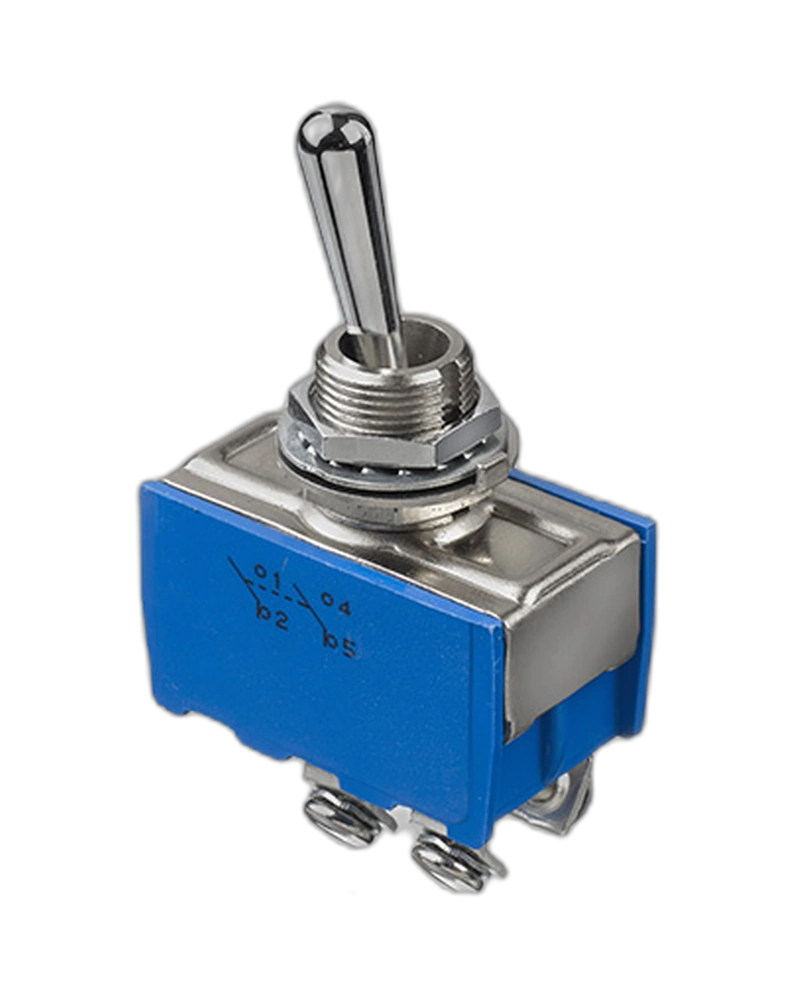

The APEM Panel Switches 6649-03LM is a double pole autoswitch designed for industrial applications. This nickel-plated and chrome-plated switch offers robust electrical performance with an insulation resistance of 1,000 MΩ min. at 500 VDC, dielectric strength of 2,000 Vrms 50 Hz min. between terminals and 3,000 Vrms 50 Hz min. between terminals and frame, and an electrical life of 10,000 cycles at full load. Its operating temperature range of -40 °C to +85 °C ensures reliable performance in extreme environments.
The APEM Panel Switches 6649-03LM is a double pole autoswitch engineered for demanding industrial environments. This switch delivers precise ON-OFF-ON electrical control with a robust construction featuring nickel-plated bushings, levers, and upper nuts, and bright chrome-plated finishes. Its exceptional electrical performance, including an insulation resistance of 1,000 MΩ min. at 500 VDC and dielectric strength of 2,000 Vrms 50 Hz min. between terminals and 3,000 Vrms 50 Hz min. between terminals and frame, ensures reliable operation under high-voltage conditions. The switch also supports 10,000 cycles at full load and operates across a wide temperature range from -40 °C to +85 °C, making it suitable for critical industrial applications where durability and precision are essential.
The APEM Panel Switches 6649-03LM delivers high electrical reliability with an insulation resistance of 1,000 MΩ min. at 500 VDC and dielectric strength of 2,000 Vrms 50 Hz min. between terminals and 3,000 Vrms 50 Hz min. between terminals and frame. This ensures robust protection against electrical faults and high-voltage transients in industrial settings.
Engineered for extreme conditions, the switch operates across a wide temperature range from -40 °C to +85 °C. Its nickel-plated bushing, lever, and upper nut, combined with bright chrome-plated finishes, provide excellent corrosion resistance and long-term mechanical stability in harsh environments.
The switch features a panel thickness of 5 mm max. and requires a maximum torque of 1.50 Nm (1.10 Ft.lb) when tightening the nut. This ensures secure installation without compromising the switch's operational integrity.
With an initial contact resistance of 10 mΩ max., the switch ensures minimal voltage drop during operation. The electrical life of 10,000 cycles at full load guarantees long-term reliability in high-demand applications.
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals3,000 Vrms 50 Hz min. between terminals and frame |
| Torque | 1.50 Nm (1.10 Ft.lb) max. applied to nut |
| Panel thickness | 5 mm (.196) max. |
| Operating temperature | -40 °C to +85 °C |
| Electrical Functions | ON OFF ON |
The APEMPanel Switches 6649-03LM is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals3,000 Vrms 50 Hz min. between terminals and frame |
| Torque | 1.50 Nm (1.10 Ft.lb) max. applied to nut |
| Panel thickness | 5 mm (.196) max. |
| Operating temperature | -40 °C to +85 °C |
| Electrical Functions | ON OFF ON |
