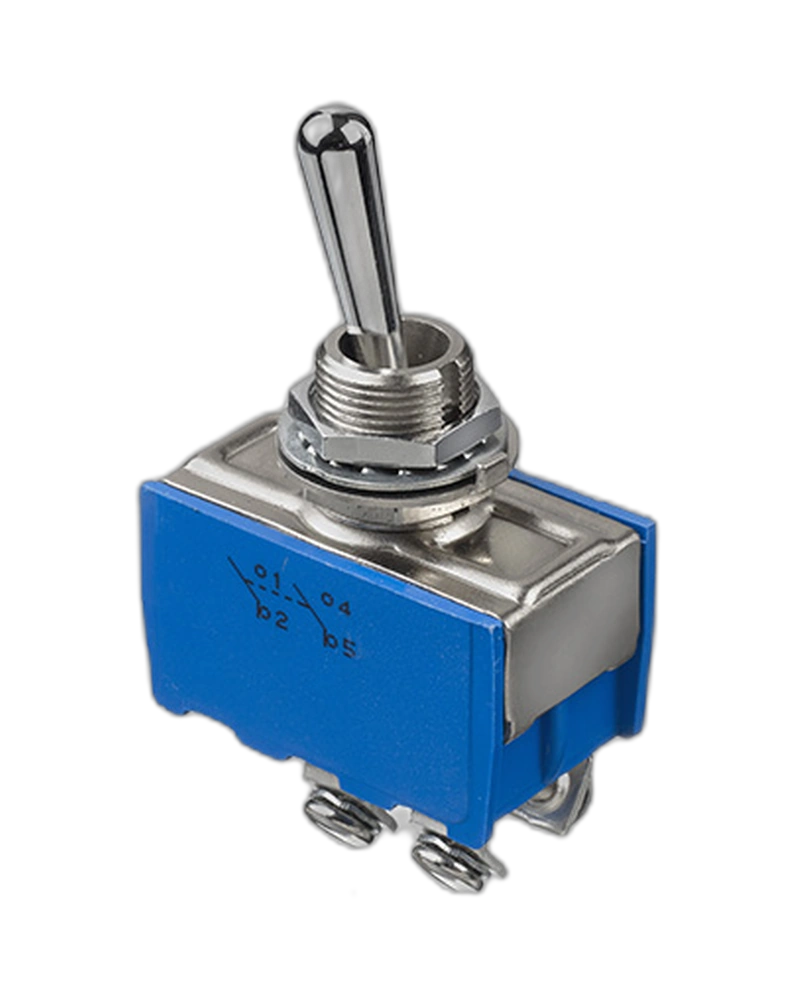

6641-03 Industrial toggle switches for military use, available in 1-4 poles. Features neoprene protection caps and sealing/locking lever options. Model: 6641-03. Select Quantity
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals 3,000 Vrms 50 Hz min. between terminals and frame |
| Torque | 1.50 Nm (1.10 Ft.lb) max. applied to nut |
| Panel thickness | 5 mm (.196) max. |
| Operating temperature | -40 °C to +85 °C (-40 °F to 185 °F) |
| Sealing | Front Panel Sealing with One O-Ring and Sealing Washer |
| Electrical Functions | ON OFF |
