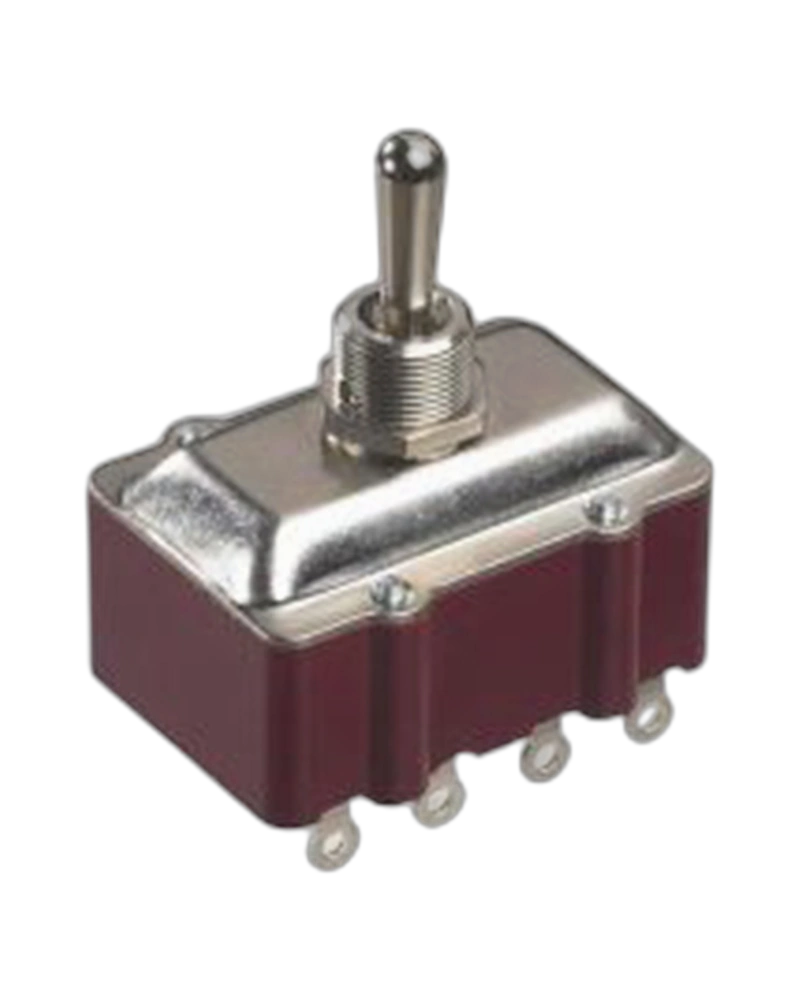

The 661/2T Panel Switch features a sleek design, four poles for reliable performance, and easy ON/OFF control, enhancing your electrical system's efficiency and safety. Select Quantity
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,500 Vrms 50 Hz min. between terminals2,500 Vrms 50 Hz min. between terminals and frame |
| Torque | 1.50 Nm (1.10 Ft.lb) max. applied to nut |
| Panel thickness | 4.5 mm (.177) max. Four pole models |
| Operating temperature | -20 °C to +55 °C (-20 °F to 131 °F) |
| Max. current/voltage rating with resistive load | 10 A 30 VDC Decrease by 50 % for inductive load |
| Electrical Functions | ON OFF |
