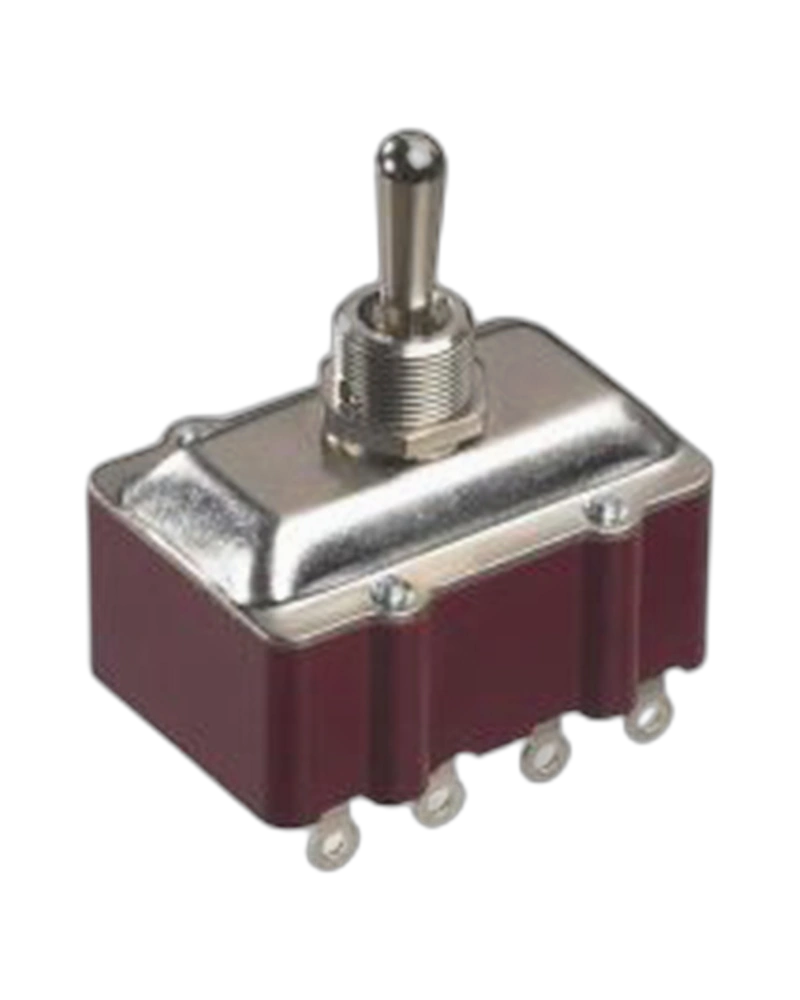

Panel Switches 661

661/3T Options : Tropicalized Case Terminals : Quick Connect Number Of Poles : Four Poles 660 661/3T Options : Tropicalized Case Terminals : Quick Connect Number Of Poles : Four Poles 660 666/2T Options : Tropicalized Case Terminals : Solder Lug Number Of Poles : Four Poles 666/2T Terminals : Solder Lug 660 665/3LUXE Options : Chrome Finish Terminals : Quick Connect Number Of Poles : Four Poles 665/3LUXE Options : Chrome Finish 660 669GK Options : Black Finish Front Panel Sealing Terminals : Screw Number Of Poles : Four Poles 669GK Options : Black Finish Front Panel Sealing Terminals : Screw 660 668/2G Options : Black Finish Terminals : Solder Lug Number Of Poles : Four Poles 668/2G Options : Black Finish 660 667/2LUXE Options : Chrome Finish Terminals : Solder Lug Number Of Poles : Four Poles 667/2LUXE 660 661/3G Options : Black Finish Terminals : Quick Connect Number Of Poles : Four Poles 661/3G 660 661GK Options : Black Finish Front Panel Sealing Terminals : Screw Number Of Poles : Four Poles 661GK 660 669T Options : Tropicalized Case Terminals : Screw Number Of Poles : Four Poles 669T 660 669/2T Options : Tropicalized Case Terminals : Solder Lug Number Of Poles : Four Poles 669/2T 660 669LUXE Options : Chrome Finish Terminals : Screw Number Of Poles : Four Poles 669LUXE 660 661/2LUXE Options : Chrome Finish Terminals : Solder Lug Number Of Poles : Four Poles 661/2LUXE 660 669/3GK Options : Black Finish Front Panel Sealing Terminals : Quick Connect Number Of Poles : Four Poles 669/3GK 660 667LUXE Options : Chrome Finish Terminals : Screw Number Of Poles : Four Poles 667LUXE 660 665/3GK Options : Black Finish Front Panel Sealing Terminals : Quick Connect Number Of Poles : Four Poles 665/3GK 660 666/2G Options : Black Finish Terminals : Solder Lug Number Of Poles : Four Poles 666/2G 660 668/3LUXE Options : Chrome Finish Terminals : Quick Connect Number Of Poles : Four Poles 668/3LUXE 660 661G Options : Black Finish Terminals : Screw Number Of Poles : Four Poles 661G 660 666G Options : Black Finish Terminals : Screw Number Of Poles : Four Poles 666G 660 667/3LUXE Options : Chrome Finish Terminals : Quick Connect Number Of Poles : Four Poles 667/3LUXE 660 667/3T

Key Features

• Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut
• Panel thickness: 4.5 mm (.177) max. Datasheet Name Last Updated File Type File Size toggle_switches_serie_660 16/08/2024
• Insulation resistance: 1,000 MΩ min. at 500 VDC
• Dielectric strength: 2,500 Vrms 50 Hz min. between terminals 2,500 Vrms 50 Hz min. between terminals and frame
• Initial contact resistance: 10 mΩ max.
• Electrical life: 10,000 cycles at full load Decrease by 50 % for inductive load
• Operating temperature: -20 °C to +55 °C (-20 °F to 131 °F) Four pole models
• Max. current/voltage rating with resistive load: 10 A 30 VDC Decrease by 50 % for inductive load
• Datasheet Name Last Updated File Type File Size toggle_switches_serie_660 16/08/2024
• Case: melamine/polyester
• Actuator: brass, nickel plated Bushing : brass, nickel plated Contacts silver
• Number Of Poles: Four Poles
• Options: Chrome Finish
• Terminals: Solder Lug
• Electrical Functions: ON OFF
• Four pole models High current/voltage rating Screw terminals
• High current/voltage rating Screw terminals
• Screw terminals
• Contacts silver
