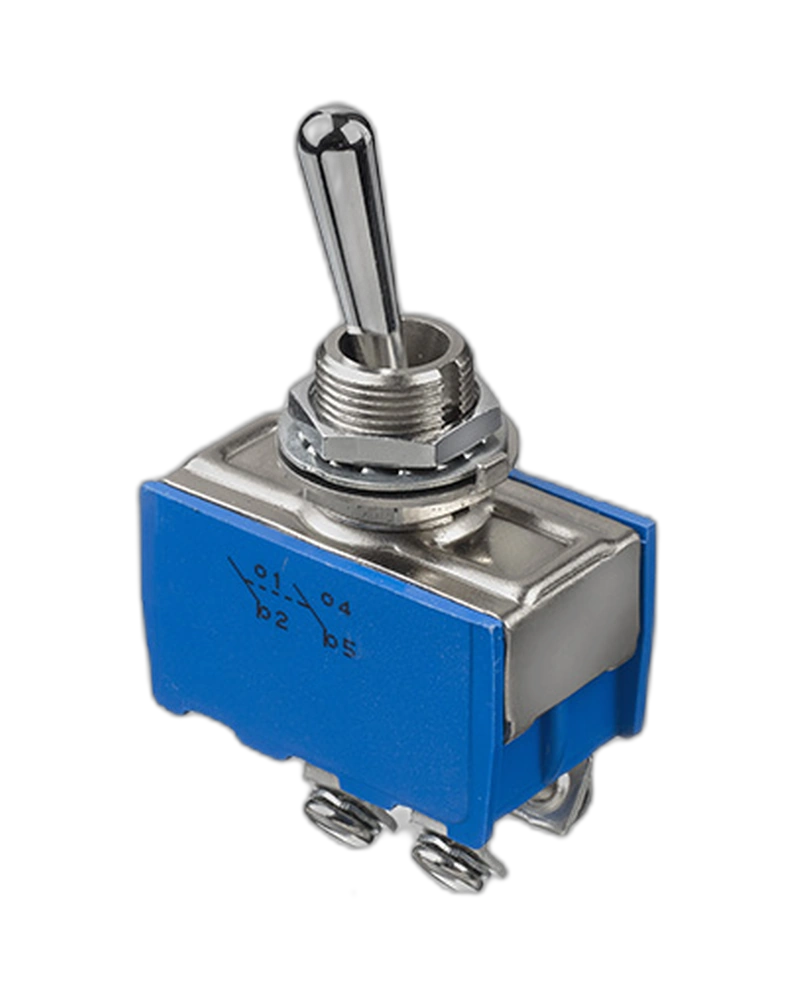

The APEM Panel Switches 6421A-038K-2V is a Switches and Pushbutton with documented product-specific characteristics including Insulation resistance: 1,000 MΩ min. at 500 VDC; Dielectric strength: 2,000 Vrms 50 Hz min. between terminals3,000 Vrms 50 Hz min. between terminals and frame; Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut.
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals3,000 Vrms 50 Hz min. between terminals and frame |
| Torque | 1.50 Nm (1.10 Ft.lb) max. applied to nut |
| Operating temperature | -40 °C to +85 °C |
| Sealing | Front Panel Sealing with One O-Ring and Sealing Washer |
| Electrical Functions | ON OFF |
