Explore performance details, construction highlights, applications, and technical information in one clear overview.

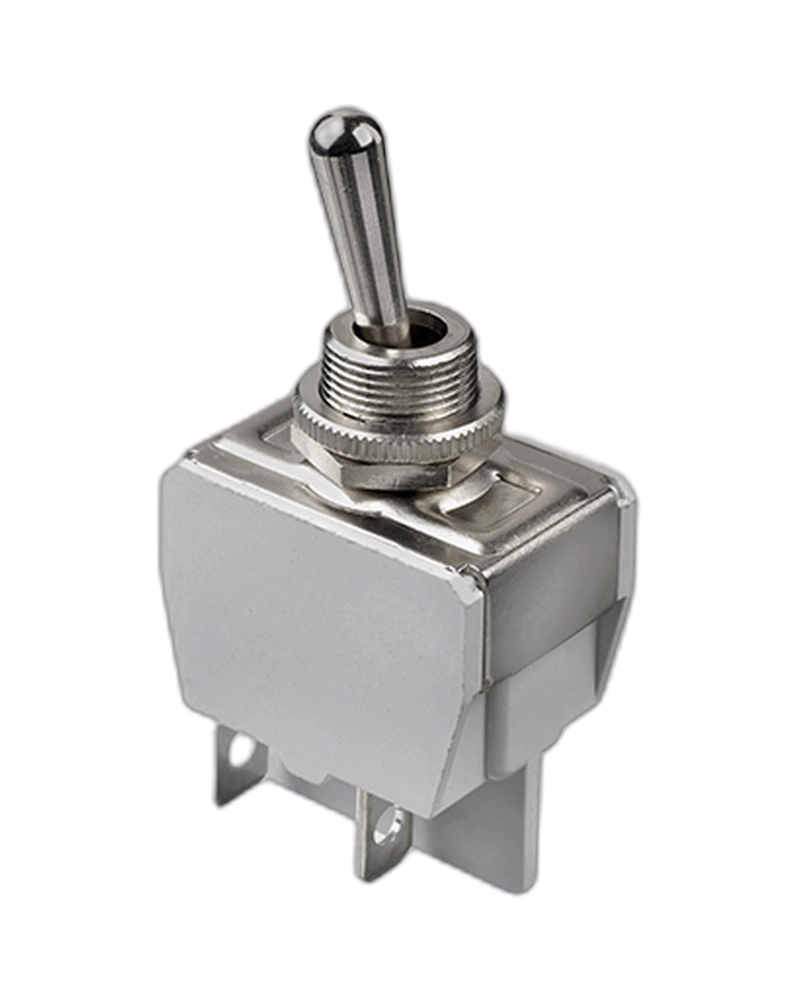

The APEM Panel Switches 639H/2T-3V is a Switches and Pushbutton with documented product-specific characteristics including Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut; Panel thickness: 4.5 mm (.177) max. between 2 nuts; Peak current: 30 A max. during 1/2 sine, 250 VAC.
The Panel Switches 639H/2T-3V is a Switches and Pushbutton. The overview below is based on the verified product information available for this model.
Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.
Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.
| Feature | Specification |
|---|---|
| Torque | 1.50 Nm (1.10 Ft.lb) max. applied to nut |
| Panel thickness | 4.5 mm (.177) max. between 2 nuts |
| Peak current | 30 A max. during 1/2 sine, 250 VAC |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals2,500 Vrms 50 Hz min. between terminals and frame |
| Electrical Functions | ON OFF ON |
| Max. current/voltage ratings | see full data sheet |
| Feature | Specification |
|---|---|
| Specifications Operating temperature | -20 °C to +55 °C (-20 °F to 131 °F) |
| current | 30 A |
| Operating temperature | -20 °C |
The APEMPanel Switches 639H/2T-3V is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Torque | 1.50 Nm (1.10 Ft.lb) max. applied to nut |
| Panel thickness | 4.5 mm (.177) max. between 2 nuts |
| Peak current | 30 A max. during 1/2 sine, 250 VAC |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals2,500 Vrms 50 Hz min. between terminals and frame |
| Electrical Functions | ON OFF ON |
| Max. current/voltage ratings | see full data sheet |
| Feature | Specification |
|---|---|
| Specifications Operating temperature | -20 °C to +55 °C (-20 °F to 131 °F) |
| current | 30 A |
| Operating temperature | -20 °C |
