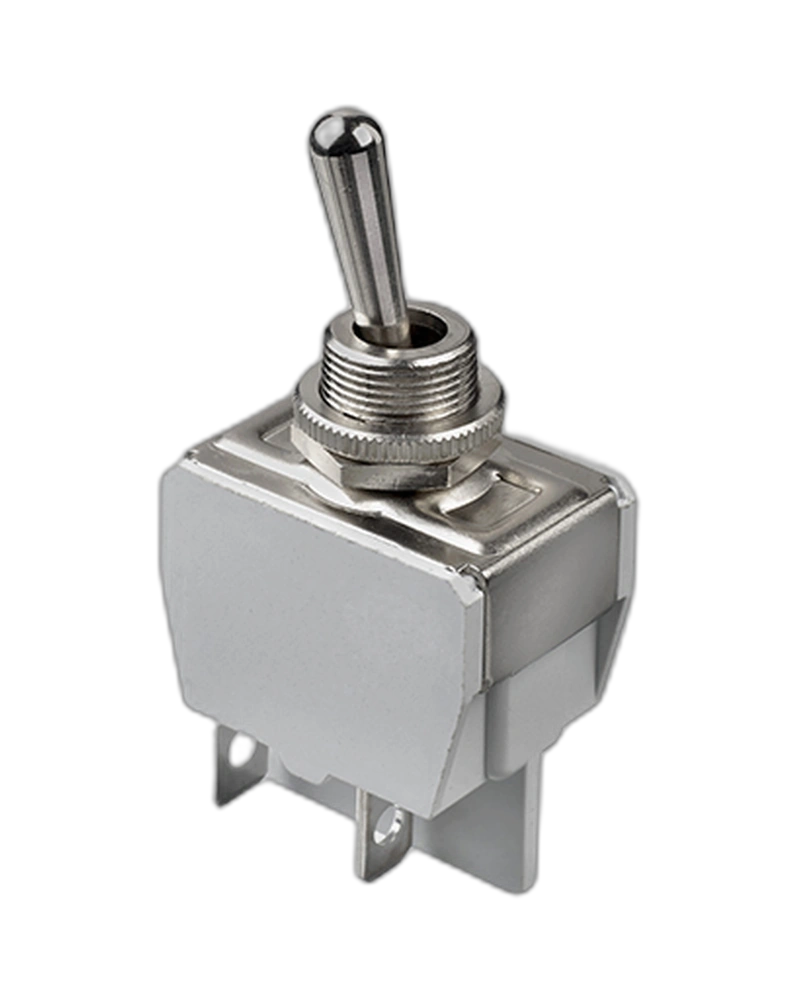

The APEM Panel Switches 639H/2K is a Switches and Pushbutton with documented product-specific characteristics including Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut; Panel thickness: 4.5 mm (.177) max. between 2 nuts; Peak current: 30 A max. during 1/2 sine, 250 VAC.
| Feature | Specification |
|---|---|
| Torque | 1.50 Nm (1.10 Ft.lb) max. applied to nut |
| Panel thickness | 4.5 mm (.177) max. between 2 nuts |
| Peak current | 30 A max. during 1/2 sine, 250 VAC |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals2,500 Vrms 50 Hz min. between terminals and frame |
| Electrical Functions | ON OFF ON |
| Max. current/voltage ratings | see full data sheet |
