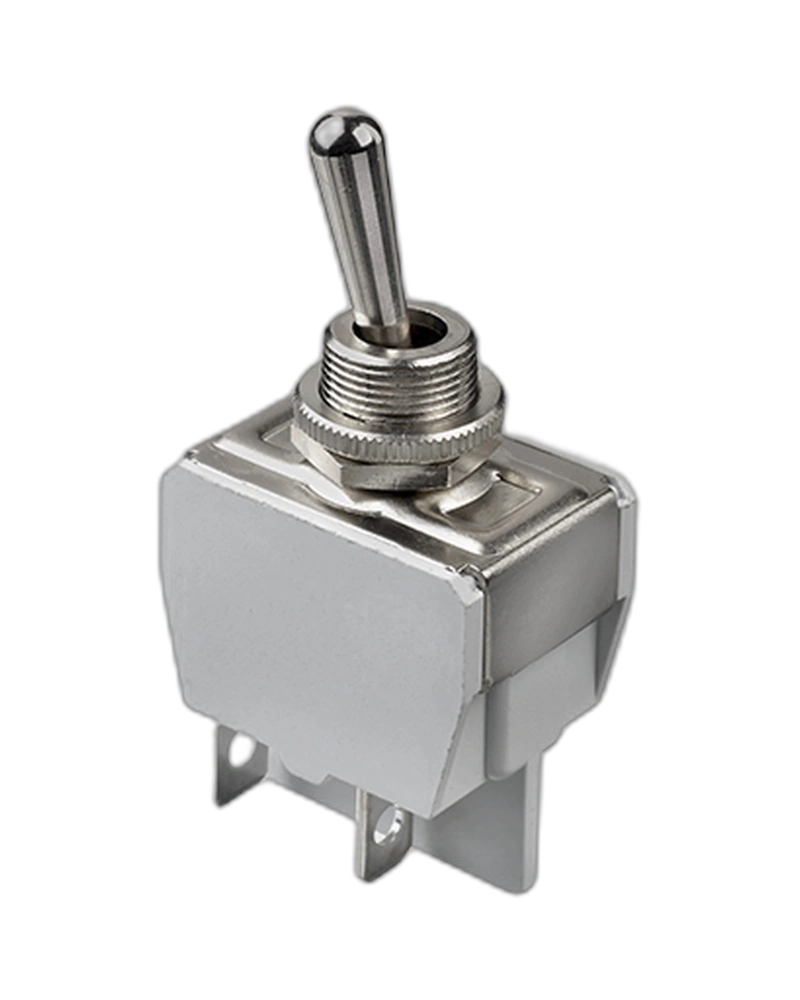

The APEM Panel Switches 636H/2G is a Switches and Pushbutton with documented product-specific characteristics including Number Of Poles: Single Pole; Options: Black Finish Luminous Tip On Lever; Terminals: Metal Lever Solder Lug Quick Connect Terminals.
| Feature | Specification |
|---|---|
| Peak current | 30 A max. during 1/2 sine, 250 VAC |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals2,500 Vrms 50 Hz min. between terminals and frame |
| Initial contact resistance | 10 mΩ max. |
| Electrical life | 10,000 cycles at full load |
| Max. current/voltage ratings | see full data sheet |
| Feature | Specification |
|---|---|
| Operating temperature | -20 °C to +55 °C (-20 °F to 131 °F) |
| Feature | Specification |
|---|---|
| Torque | 1.50 Nm (1.10 Ft.lb) max. applied to nut |
| Panel thickness | 4.5 mm (.177) max. between 2 nuts |
| Feature | Specification |
|---|---|
| Configuration | single pole configuration |
| Feature | Specification |
|---|---|
| Peak current | 30 A max. during 1/2 sine, 250 VAC |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals2,500 Vrms 50 Hz min. between terminals and frame |
| Max. current/voltage ratings | see full data sheet |
| Feature | Specification |
|---|---|
| Operating temperature | -20 °C to +55 °C (-20 °F to 131 °F) |
| Feature | Specification |
|---|---|
| Torque | 1.50 Nm (1.10 Ft.lb) max. applied to nut |
| Panel thickness | 4.5 mm (.177) max. between 2 nuts |
| Feature | Specification |
|---|---|
| Configuration | single pole configuration |
| Feature | Specification |
|---|---|
| Electrical Functions | ON ON |
