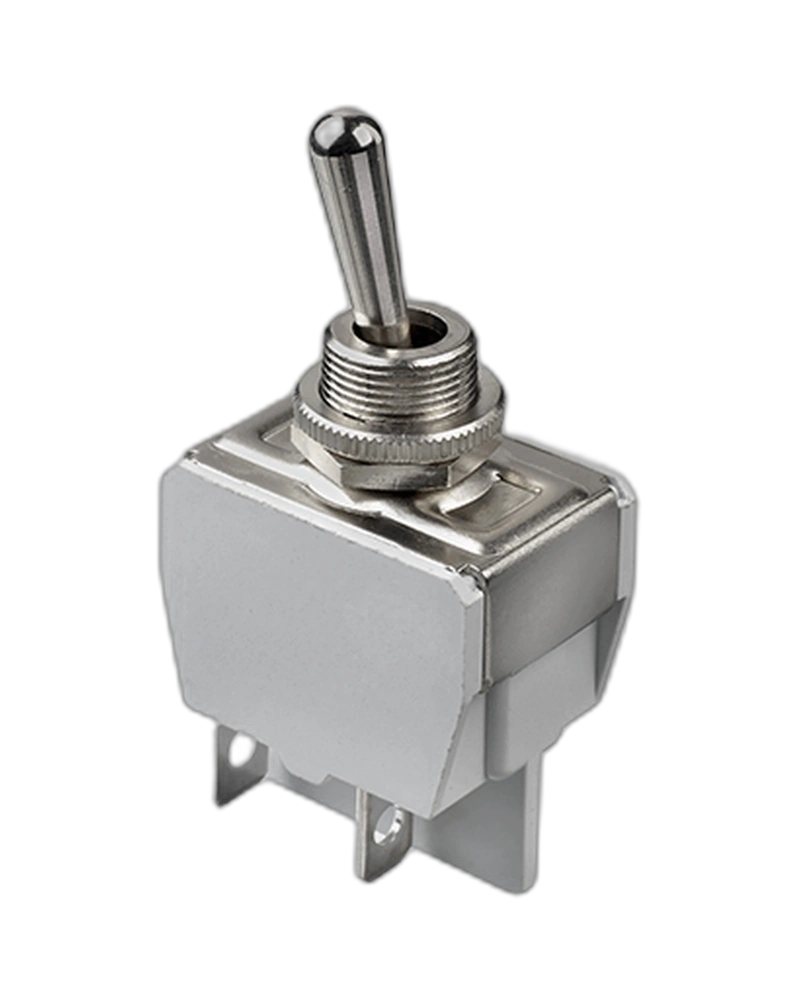

Panel Switches 635HLUXE-6
The APEM Panel Switches 635HLUXE-6 is a Switches and Pushbutton with documented product-specific characteristics including Terminals: Metal Lever Screw Terminals; Peak current: 30 A max. during 1/2 sine, 250 VAC; Insulation resistance: 1,000 MΩ min. at 500 VDC.
Key Features
- Terminals: Metal Lever Screw Terminals
- Peak current: 30 A max. during 1/2 sine, 250 VAC
- Insulation resistance: 1,000 MΩ min. at 500 VDC
- Dielectric strength: 2,000 Vrms 50 Hz min. between terminals 2,500 Vrms 50 Hz min. between terminals and frame
- Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut
- Panel thickness: 4.5 mm (.177) max. between 2 nuts
- Initial contact resistance: 10 mΩ max.
- Electrical life: 10,000 cycles at full load
- Operating temperature: -20 °C to +55 °C (-20 °F to 131 °F)
- Number Of Poles: Single Pole,Actuator Option:Retro-Style Actuator
- Options: Chrome Finish
- Electrical Functions: MOM ON
- Max. current/voltage ratings: see full data sheet
- The contacts are resistance-welded to the terminal for increased mechanical strength.
Technical Specifications
Product Description
| Feature | Specification |
|---|
| Configuration | single pole configuration |
Specifications
| Feature | Specification |
|---|
| current | 30 A |
