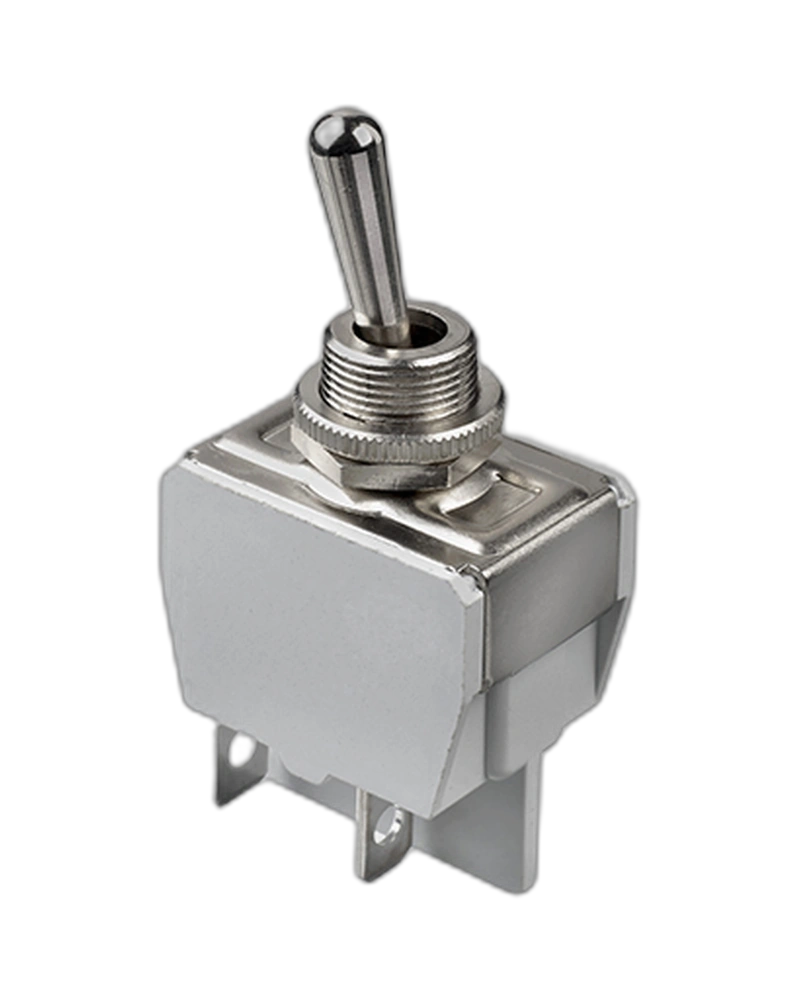

The APEM Panel Switches 635H/2G are single pole industrial toggle switches designed for military-grade reliability. These switches feature 5-10 amp power toggle functionality with 10,000 cycle electrical life, 1,000 MΩ insulation resistance, and operate within -20°C to +55°C temperature ranges. Ideal for demanding applications requiring robust contact performance and high dielectric strength.
The APEM Panel Switches 635H/2G represent a high-performance single pole toggle switch solution engineered for industrial and military applications. These switches deliver precise control with 5-10 amp power toggle functionality, featuring resistance-welded contacts for enhanced mechanical strength and reliable operation. With electrical life rated at 10,000 cycles at full load, the 635H/2G ensures consistent performance in challenging environments while maintaining robust electrical characteristics including 1,000 MΩ insulation resistance at 500 VDC and 2,000 Vrms dielectric strength. The switches are designed to withstand extreme temperature variations from -20°C to +55°C, making them suitable for applications where environmental conditions may impact switch reliability.
The APEM Panel Switches 635H/2G deliver reliable electrical performance with a peak current rating of 30 A max. during 1/2 sine at 250 VAC. These switches maintain high dielectric strength with 2,000 Vrms (50 Hz) between terminals and 2,500 Vrms (50 Hz) between terminals and frame. The initial contact resistance remains below 10 mΩ, ensuring minimal voltage drop during operation.
Engineered for extreme conditions, the 635H/2G operates effectively across a wide temperature range from -20°C to +55°C (-20°F to 131°F). This robust thermal performance ensures consistent functionality in both cold and hot environments, making the switches suitable for industrial and military applications where temperature fluctuations are common.
The switches feature metal lever solder lug or quick connect terminals, providing flexible installation options. The resistance-welded contacts enhance mechanical strength, while the 4.5 mm panel thickness (max. between 2 nuts) ensures secure mounting in industrial panels. Optional black finish with luminous tip on lever improves visibility in low-light conditions.
| Feature | Specification |
|---|---|
| Configuration | single pole configuration |
| Feature | Specification |
|---|---|
| Peak current | 30 A max. during 1/2 sine, 250 VAC |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals2,500 Vrms 50 Hz min. between terminals and frame |
| Torque | 1.50 Nm (1.10 Ft.lb) max. applied to nut |
| Panel thickness | 4.5 mm (.177) max. between 2 nuts |
| Operating temperature | -20 °C to +55 °C (-20 °F to 131 °F) |
| Electrical Functions | MOM ON |
| Max. current/voltage ratings | see full data sheet |
The APEMPanel Switches 635H/2G is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Configuration | single pole configuration |
| Feature | Specification |
|---|---|
| Peak current | 30 A max. during 1/2 sine, 250 VAC |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals2,500 Vrms 50 Hz min. between terminals and frame |
| Torque | 1.50 Nm (1.10 Ft.lb) max. applied to nut |
| Panel thickness | 4.5 mm (.177) max. between 2 nuts |
| Operating temperature | -20 °C to +55 °C (-20 °F to 131 °F) |
| Electrical Functions | MOM ON |
| Max. current/voltage ratings | see full data sheet |
