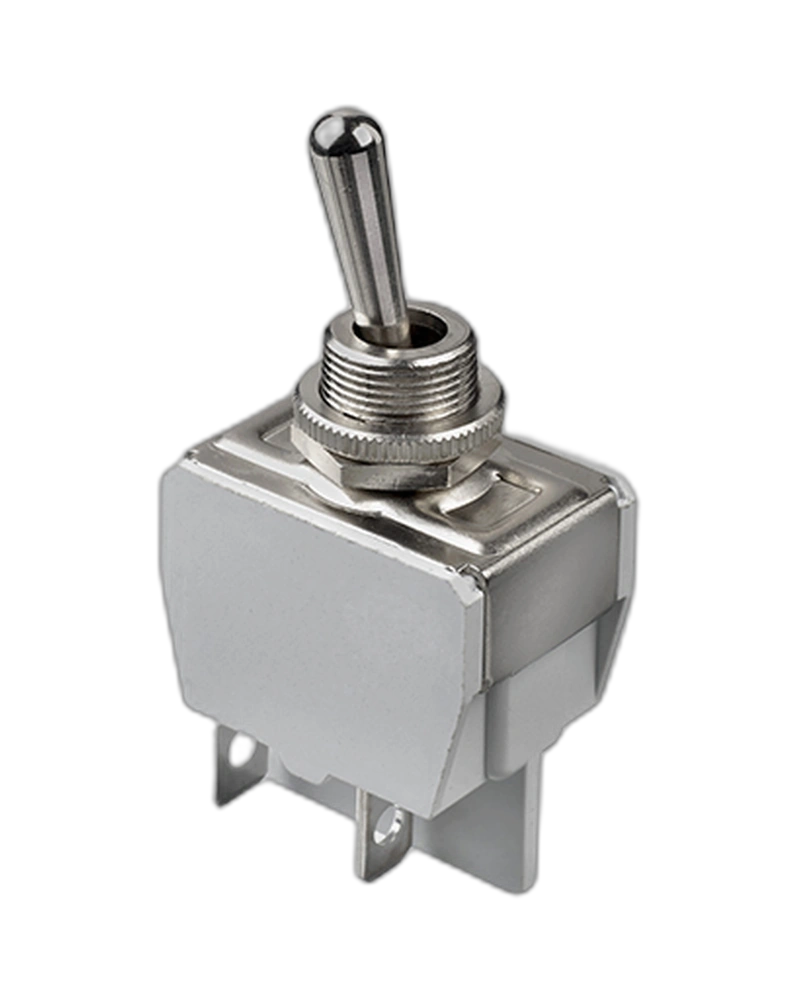

The APEM Panel Switches 635H/2-5 are single pole autoswitches with 30 A max. current capacity, designed for industrial applications. Featuring metal lever solder lug quick connect terminals, these switches offer 10,000 cycle electrical life, -20°C to +55°C operating temperature, and 1,000 MΩ insulation resistance at 500 VDC. Ideal for robust control systems requiring high reliability.

Product Overview

The APEM Panel Switches 635H/2-5 are single pole autoswitches engineered for demanding industrial environments. These switches deliver reliable operation with a peak current capacity of 30 A max. during 1/2 sine at 250 VAC, ensuring robust performance in high-load applications. The product features metal lever solder lug quick connect terminals, providing secure and efficient installation while maintaining high electrical integrity. With an electrical life of 10,000 cycles at full load and an operating temperature range from -20°C to +55°C, these switches are designed to withstand harsh conditions and deliver consistent performance in critical industrial control systems.

Electrical Performance

The APEM Panel Switches 635H/2-5 deliver high electrical reliability with a peak current capacity of 30 A max. during 1/2 sine at 250 VAC. The switches maintain robust insulation with a minimum of 1,000 MΩ at 500 VDC and exhibit strong dielectric strength: 2,000 Vrms 50 Hz between terminals and 2,500 Vrms 50 Hz between terminals and frame. These specifications ensure the switches can handle demanding electrical loads without compromising safety or performance.

Mechanical Durability

Engineered for industrial use, the Panel Switches 635H/2-5 feature a robust construction with metal lever solder lug quick connect terminals. The switches withstand a maximum torque of 1.50 Nm (1.10 Ft.lb) when tightening the nut, ensuring secure connections without damage. The panel thickness is limited to 4.5 mm max. between nuts, optimizing installation flexibility while maintaining structural integrity.

Environmental Resilience

Operating within a temperature range of -20°C to +55°C (-20°F to 131°F), the APEM Panel Switches 635H/2-5 are suitable for extreme environmental conditions. This wide operational range makes them ideal for use in industrial settings where temperature fluctuations are common, ensuring consistent performance without degradation.

Reliability and Longevity

With an electrical life of 10,000 cycles at full load, these switches provide long-term reliability in high-demand applications. The resistance-welded contacts enhance mechanical strength, reducing the risk of failure over time. This feature ensures the switches maintain consistent performance even after extensive use in critical industrial processes.

Technical Specifications

Product Description

Specifications

Product Summary

The APEMPanel Switches 635H/2-5 is presented using the documented product characteristics available for this model.
