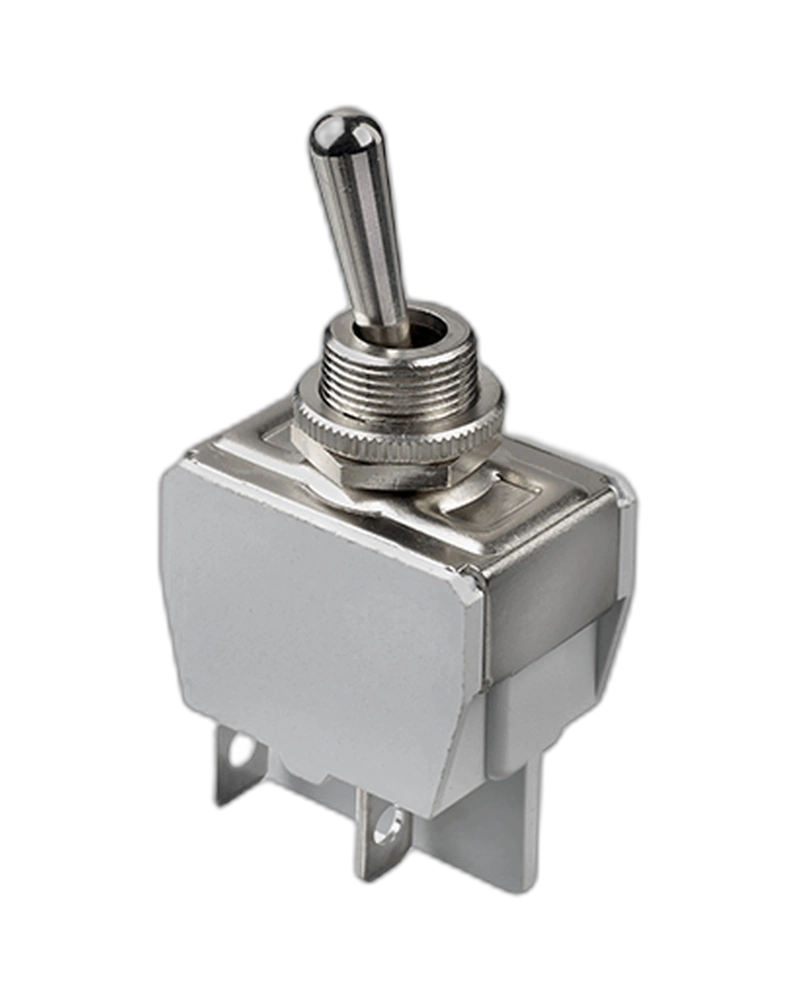

631H-5 Versatile 631H-5 toggle switch with single pole configuration and metal lever screw terminals for secure connections. Ideal for enhancing electrical control panels. Select Quantity
| Feature | Specification |
|---|---|
| Configuration | single pole configuration |
| Feature | Specification |
|---|---|
| current | 30 A |
| Feature | Specification |
|---|---|
| Configuration | single pole configuration |
| Feature | Specification |
|---|---|
| Peak current | 30 A max. during 1/2 sine, 250 VAC |
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals2,500 Vrms 50 Hz min. between terminals and frame |
| Torque | 1.50 Nm (1.10 Ft.lb) max. applied to nut |
| Panel thickness | 4.5 mm (.177) max. between 2 nuts |
| Operating temperature | -20 °C to +55 °C (-20 °F to 131 °F) |
| Number Of Poles | Single Pole,Actuator Option:40mm (1.574in) actuator |
| Electrical Functions | ON OFF |
| Max. current/voltage ratings | see full data sheet |
| Feature | Specification |
|---|---|
| current | 30 A |
