Panel Switches 5646AG-2V

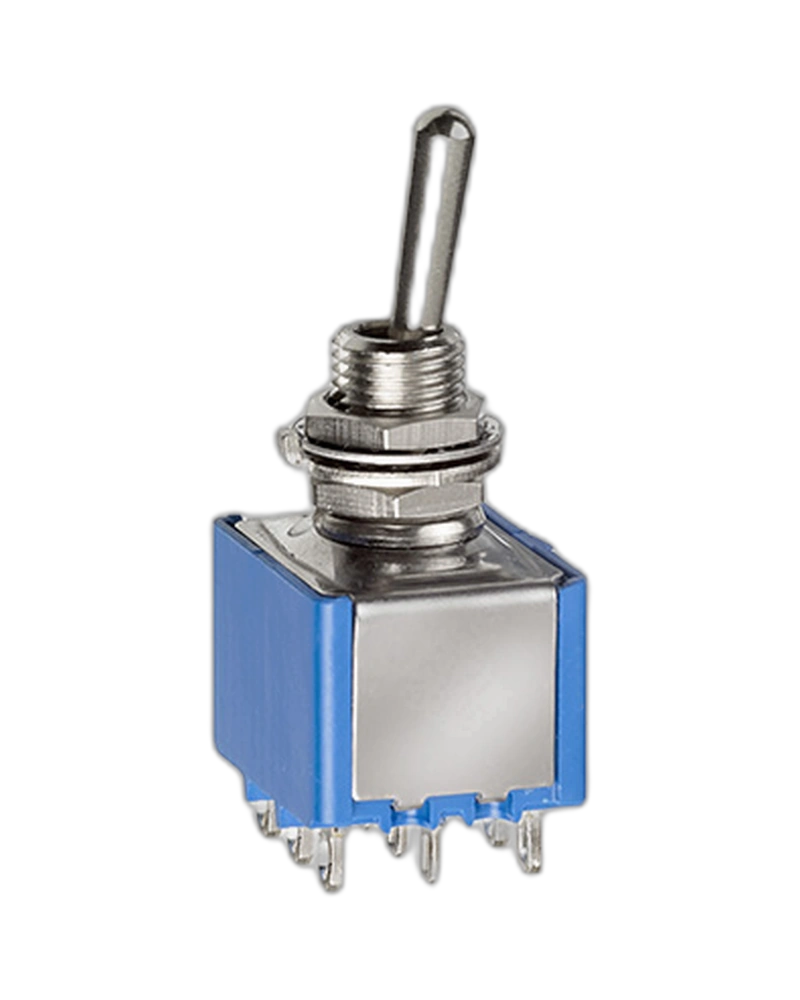

The 5646AG-2V Panel Switch features a sleek design, double pole configuration, and ON ON function for reliable control over multiple circuits with two locked positions. Select Quantity
Key Features
- Dielectric strength: 1.000 Vrms 50 Hz min. between terminals1.500 Vrms 50 Hz min. between poles1.500 Vrms 50 Hz min. between terminals and frame Contact bounce : 2 ms max. Electrical life at full load :50.000 cycles for single and double pol
- Operating temperature: -40°C to +85°C
- Torque: 1,25 Nm (.922 Ft.lb) max. applied to nut
- Panel thickness: 2,5 mm (.098) with 2 nuts - 4 mm (.157) with 1 nut Low level or mechanical life : 100.000 cycles Low level or mechanical life : 100.000 cycles 17 actuators including toggles, paddle levers and locking levers in different
- Finish: Black Finish,Fluorescent Tip:None,Levers:2 Locked Positions
- Initial contact resistance: 10 mΩ max.
- Insulation resistance: 1.000 MΩ min. at 500VDC
- Several bushing styles. 3 types of finish including military black. 3 approvals (UL - CSA - CECC). 4 types of sealing for terminal or front panel requirements. Numerous accessories available.
- 3 types of finish including military black. 3 approvals (UL - CSA - CECC). 4 types of sealing for terminal or front panel requirements. Numerous accessories available.
- 3 approvals (UL - CSA - CECC). 4 types of sealing for terminal or front panel requirements. Numerous accessories available.
- 4 types of sealing for terminal or front panel requirements. Numerous accessories available.
- 17 actuators including toggles, paddle levers and locking levers
- Number Of Poles: Double Pole,Contact Materials:Silver
- Sealing: No Sealing Except Where Standard,Terminals And Bushing:Solder Lug Terminals
- Electrical Functions: ON ON,Contact Materials:Silver
- Numerous accessories available.
Technical Specifications
Product Description
| Feature | Specification |
|---|
| Configuration | double pole configuration |
Specifications
| Feature | Specification |
|---|
| Environmental Specifications Operating temperature | -40°C to +85°C |
