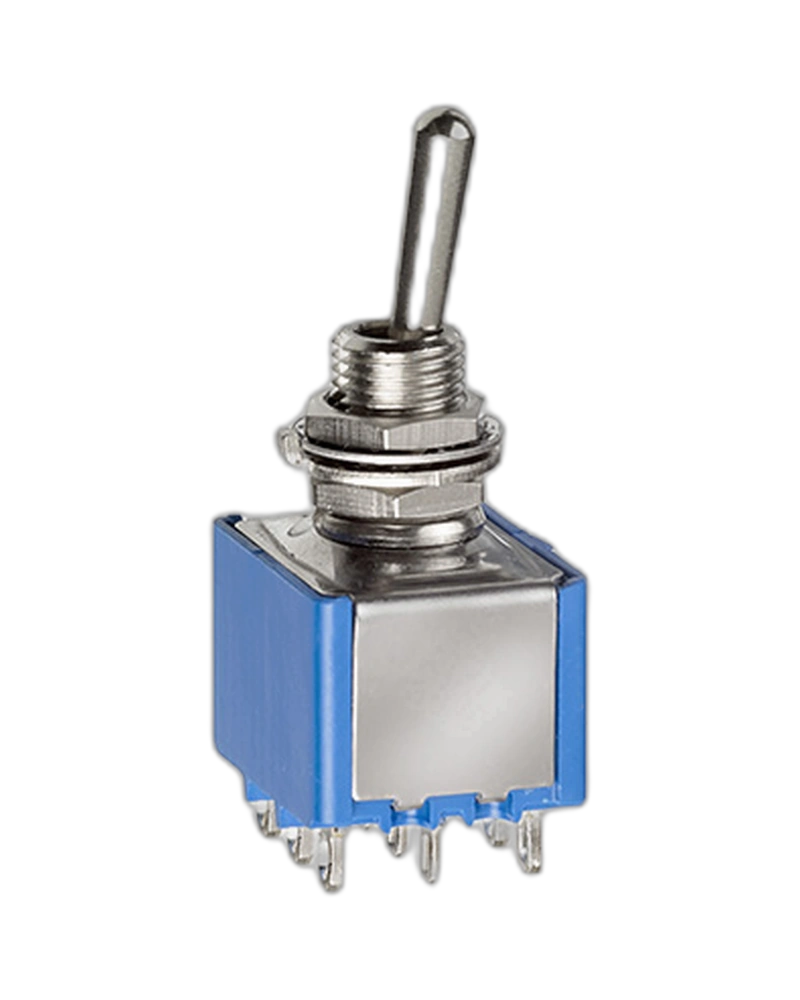

Panel Switches 5646AD-2V

The APEM Panel Switches 5646AD-2V is a Switches and Pushbutton with documented product-specific characteristics including Dielectric strength: 1.000 Vrms 50 Hz min. between terminals1.500 Vrms 50 Hz min. between poles1.500 Vrms 50 Hz min. between terminals and frame Contact bounce : 2 ms max. Electrical life at full load :50.000 cycles for single and double pol; Operating temperature: -40°C to +85°C; Torque: 1,25 Nm (.922 Ft.lb) max. applied to nut.

Product Overview

5646AD-2V Select Quantity

Key Features

• Number Of Poles: Double Pole,Contact Materials:Silver (Gold-Plated)
• Finish: Nickel-Plated,Fluorescent Tip:None,Levers:2 Locked Positions
• Sealing: No Sealing Except Where Standard,Terminals And Bushing:Solder Lug Terminals
• Electrical Functions: ON ON
• Initial contact resistance: 10 mΩ max.
• Insulation resistance: 1.000 MΩ min. at 500VDC
• Dielectric strength: 1.000 Vrms 50 Hz min. between terminals1.500 Vrms 50 Hz min. between poles1.500 Vrms 50 Hz min. between terminals and frame Contact bounce : 2 ms max. Electrical life at full load :50.000 cycles for single and double pole 40.000 cycles for 3 pole30.000 cycles for 4 pole
• Dielectric strength: 1.000 Vrms 50 Hz min. between terminals1.500 Vrms 50 Hz min. between poles1.500 Vrms 50 Hz min. between terminals and frame Contact bounce : 2 ms max. Electrical life at full load :50.000 cycles for single and double pole 40.000 cycles for 3 pole30.000 cycles for 4 pole Contact bounce : 2 ms max. Electrical life at full load :50.000 cycles for single and double pole 40.000 cycles for 3 pole30.000 cycles for 4 pole Electrical life at full load :50.000 cycles for single and double pole 40.000 cycles for 3 pole30.000 cycles for 4 pole
• Operating temperature: -40°C to +85°C
• Torque: 1,25 Nm (.922 Ft.lb) max. applied to nut
• Panel thickness: 2,5 mm (.098) with 2 nuts - 4 mm (.157) with 1 nut Low level or mechanical life : 100.000 cycles
• Panel thickness: 2,5 mm (.098) with 2 nuts - 4 mm (.157) with 1 nut Low level or mechanical life : 100.000 cycles Low level or mechanical life : 100.000 cycles 17 actuators including toggles, paddle levers and locking levers in different lengths. Various contact materials for low and high currents. 8 functions including maintained and momentary versions. 1 to 4 pole configurations. 12 terminal types including 9 for PC board mounting. Other types include quick-connect and wire-wrap. Several bushing styles. 3 types of finish including military black. 3 approvals (UL - CSA - CECC). 4 types of sealing for terminal or front panel requirements. Numerous accessories available. in different lengths. Various contact materials for low and high currents. 8 functions including maintained and momentary versions. 1 to 4 pole configurations. 12 terminal types including 9 for PC board mounting. Other types include quick-connect and wire-wrap. Several bushing styles. 3 types of finish including military black. 3 approvals (UL - CSA - CECC). 4 types of sealing for terminal or front panel requirements. Numerous accessories available. Various contact materials for low and high currents. 8 functions including maintained and momentary versions. 1 to 4 pole configurations. 12 terminal types including 9 for PC board mounting. Other types include quick-connect and wire-wrap. Several bushing styles. 3 types of finish including military black. 3 approvals (UL - CSA - CECC). 4 types of sealing for terminal or front panel requirements. Numerous accessories available. 8 functions including maintained and momentary versions. 1 to 4 pole configurations. 12 terminal types including 9 for PC board mounting. Other types include quick-connect and wire-wrap. Several bushing styles. 3 types of finish including military black. 3 approvals (UL - CSA - CECC). 4 types of sealing for terminal or front panel requirements. Numerous accessories available. 1 to 4 pole configurations. 12 terminal types including 9 for PC board mounting. Other types include quick-connect and wire-wrap. Several bushing styles. 3 types of finish including military black. 3 approvals (UL - CSA - CECC). 4 types of sealing for terminal or front panel requirements. Numerous accessories available. 12 terminal types including 9 for PC board mounting. Other types include quick-connect and wire-wrap. Several bushing styles. 3 types of finish including military black. 3 approvals (UL - CSA - CECC). 4 types of sealing for terminal or front panel requirements. Numerous accessories available. Other types include quick-connect and wire-wrap. Several bushing styles. 3 types of finish including military black. 3 approvals (UL - CSA - CECC). 4 types of sealing for terminal or front panel requirements. Numerous accessories available. Several bushing styles. 3 types of finish including military black. 3 approvals (UL - CSA - CECC). 4 types of sealing for terminal or front panel requirements. Numerous accessories available. 3 types of finish including military black. 3 approvals (UL - CSA - CECC). 4 types of sealing for terminal or front panel requirements. Numerous accessories available. 3 approvals (UL - CSA - CECC). 4 types of sealing for terminal or front panel requirements. Numerous accessories available. 4 types of sealing for terminal or front panel requirements. Numerous accessories available. Numerous accessories available.
