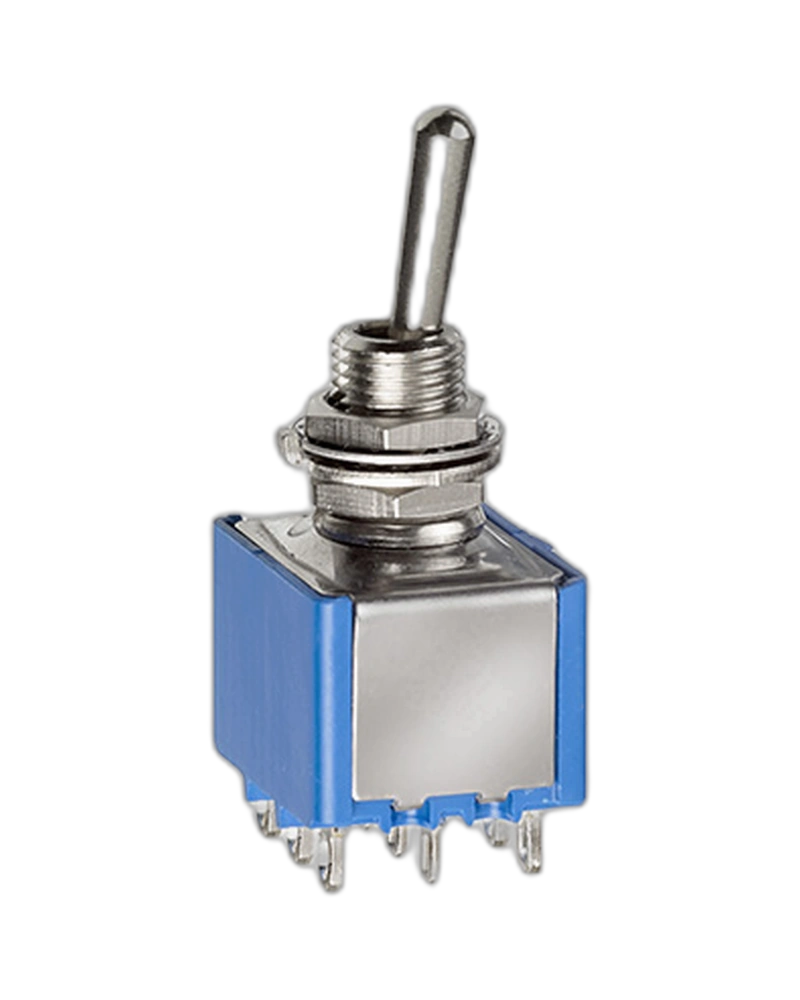

5639CDKB-4N 5639CDKB-4N Panel Switch: A reliable single pole toggle with ON/OFF functionality and smooth operation via threaded bushing levers. Select Quantity
| Feature | Specification |
|---|---|
| Force | 4N |
| Feature | Specification |
|---|---|
| Dielectric strength | 1.000 Vrms 50 Hz min. between terminals1.500 Vrms 50 Hz min. between poles1.500 Vrms 50 Hz min. between terminals and frame Contact bounce : 2 ms max. Electrical life at full load :50.000 cycles for single and double pol |
| Operating temperature | -40°C to +85°C |
| Torque | 1,25 Nm (.922 Ft.lb) max. applied to nut |
| Panel thickness | 2,5 mm (.098) with 2 nuts - 4 mm (.157) with 1 nut Low level or mechanical life : 100.000 cycles Low level or mechanical life : 100.000 cycles 17 actuators including toggles, paddle levers and locking levers in different |
| Insulation resistance | 1.000 MΩ min. at 500VDC |
| Sealing | Combined Sealings,Terminals And Bushing:Solder Lug Terminals |
| Electrical Functions | ON OFF ON |
