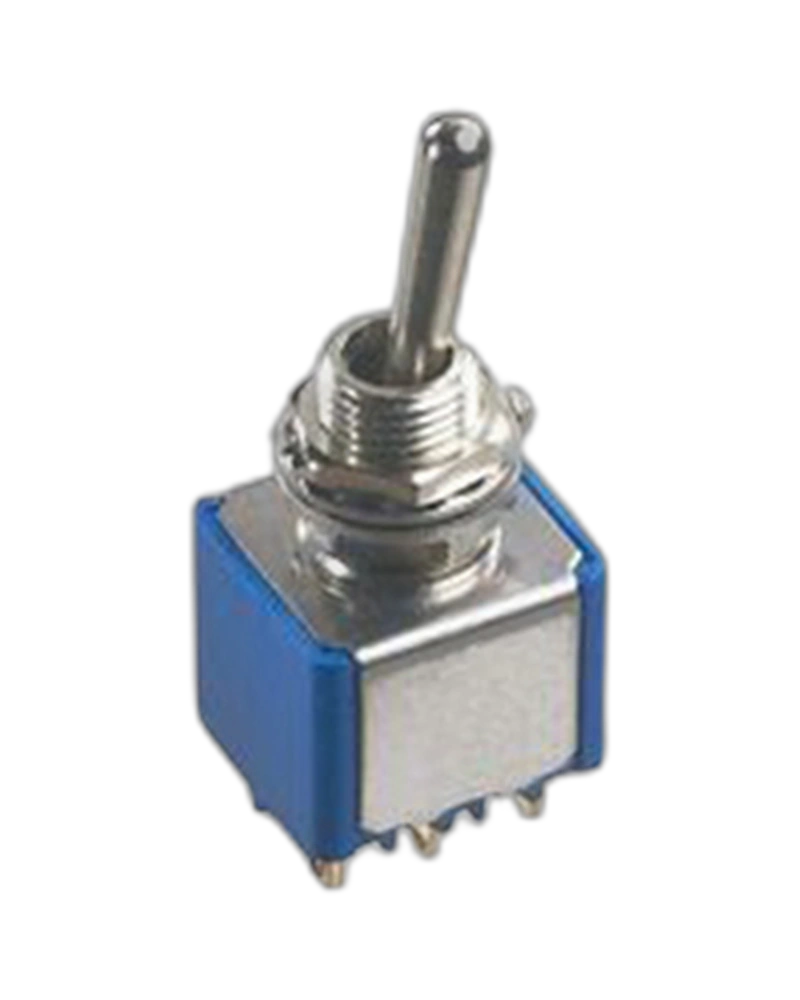

Panel Switches 5536A-4N
The APEM Panel Switches 5536A-4N is a Switches and Pushbutton with documented product-specific characteristics including Dielectric strength: 2,000 Vrms 50 Hz min. between poles and between terminals and frame1,000 Vrms 50 Hz min. between terminals Special body for increased creepage distance and air gap : 3 mm (.118) Current/voltage rating with resistive load; connector: U721 compulsory if the panel is not metallic or not connected to ground Epoxy sealed terminals standard Epoxy sealed terminals standard VDE marked as standard UL and CSA approvals also available Single and double pole co; Number Of Poles: Single Pole,Contact Materials:Silver,Levers:For Use with Paddles Only.
Key Features
- Dielectric strength: 2,000 Vrms 50 Hz min. between poles and between terminals and frame1,000 Vrms 50 Hz min. between terminals Special body for increased creepage distance and air gap : 3 mm (.118) Current/voltage rating with resistive load
- connector: U721 compulsory if the panel is not metallic or not connected to ground Epoxy sealed terminals standard Epoxy sealed terminals standard VDE marked as standard UL and CSA approvals also available Single and double pole co
- Datasheet 3D CAD Files Name Last Updated File Type File Size toggle_switches_serie_55000 16/08/2024
- Number Of Poles: Single Pole,Contact Materials:Silver,Levers:For Use with Paddles Only
- Electrical Functions: ON ON
Technical Specifications
Product Description
| Feature | Specification |
|---|
| Configuration | single pole configuration |
Specifications
| Feature | Specification |
|---|
| Force | 4N |
