Panel Switches 55000

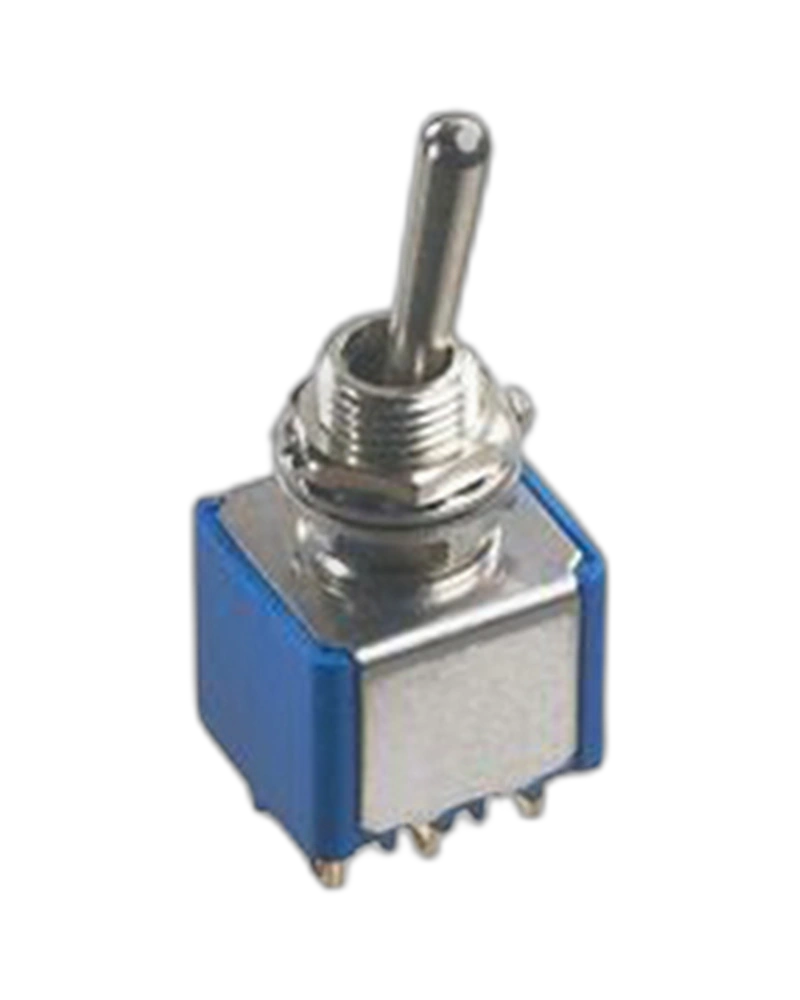

55000 5566A Versatile 5566A Panel Switch with multiple functions, secure operation, easy mounting, and efficient circuit control. Ideal for toggling various equipment. Select Quantity
Key Features
- Dielectric strength: 2,000 Vrms 50 Hz min. between poles and between terminals and frame1,000 Vrms 50 Hz min. between terminals Special body for increased creepage distance and air gap : 3 mm (.118) Current/voltage rating with resistive load
- Number Of Poles: Single Pole,Contact Materials:Silver,Insulating Caps:11433,Levers:Standard Insulating Cap - Compulsory
- connector: U721 compulsory if the panel is not metallic or not connected to ground Epoxy sealed terminals standard Epoxy sealed terminals standard Datasheet 3D CAD Files Name Last Updated File Type File Size toggle_switches_serie_5
- Datasheet 3D CAD Files Name Last Updated File Type File Size toggle_switches_serie_55000 16/08/2024
- Terminals: Quick Connect,Terminals And Bushing:Solder Lug Terminals
- Electrical Functions: ON OFF ON
- Datasheet 3D CAD Files Name Last Updated File Type File Size toggle_switches_serie_55000 16/08/2024 .PDF 1.34MB
- Epoxy sealed terminals standard
Technical Specifications
Product Description
| Feature | Specification |
|---|
| Configuration | double pole configuration |
Specifications
| Feature | Specification |
|---|
| Force | 4N |
