Panel Switches 5249WAD-4N

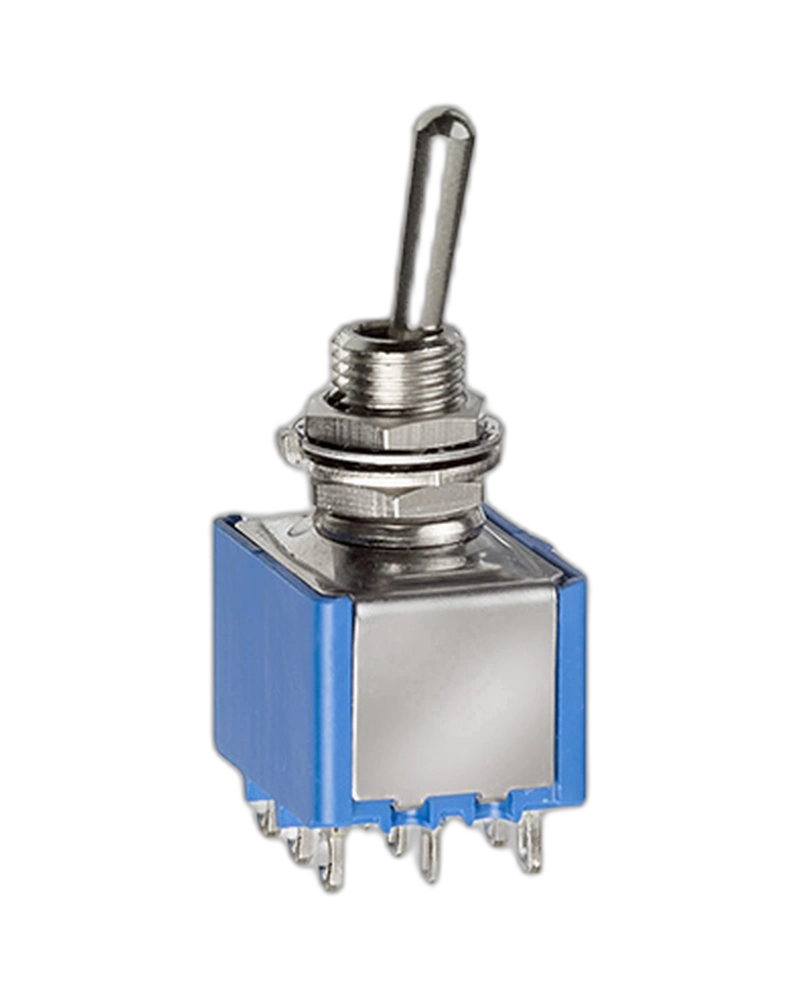

The 5249WAD-4N Panel Switch features a double pole design with ON/OFF/ON functions, high-quality levers, and a threaded bushing for easy installation and durability. Select Quantity
Key Features
- Dielectric strength: 1.000 Vrms 50 Hz min. between terminals1.500 Vrms 50 Hz min. between poles1.500 Vrms 50 Hz min. between terminals and frame Contact bounce : 2 ms max. Electrical life at full load :50.000 cycles for single and double pol
- Operating temperature: -40°C to +85°C
- Torque: 1,25 Nm (.922 Ft.lb) max. applied to nut
- Panel thickness: 2,5 mm (.098) with 2 nuts - 4 mm (.157) with 1 nut Low level or mechanical life : 100.000 cycles Low level or mechanical life : 100.000 cycles 17 actuators including toggles, paddle levers and locking levers in different
- Initial contact resistance: 10 mΩ max.
- Insulation resistance: 1.000 MΩ min. at 500VDC
- Several bushing styles. 3 types of finish including military black. 3 approvals (UL - CSA - CECC). 4 types of sealing for terminal or front panel requirements. Numerous accessories available.
- 3 types of finish including military black. 3 approvals (UL - CSA - CECC). 4 types of sealing for terminal or front panel requirements. Numerous accessories available.
- 3 approvals (UL - CSA - CECC). 4 types of sealing for terminal or front panel requirements. Numerous accessories available.
- 4 types of sealing for terminal or front panel requirements. Numerous accessories available.
- Number Of Poles: Double Pole,Contact Materials:Silver (Gold-Plated)
- Finish: Nickel-Plated,Fluorescent Tip:None,Levers:Threaded Bushing
- Sealing: No Sealing Except Where Standard,Terminals And Bushing:Straight PC
- Terminals: Right Angle or Quick Connect
- Electrical Functions: ON OFF ON
- Numerous accessories available.
Technical Specifications
Product Description
| Feature | Specification |
|---|
| Configuration | double pole configuration |
Specifications
| Feature | Specification |
|---|
| Force | 4N |
