Panel Switches 5236ADKB-2V

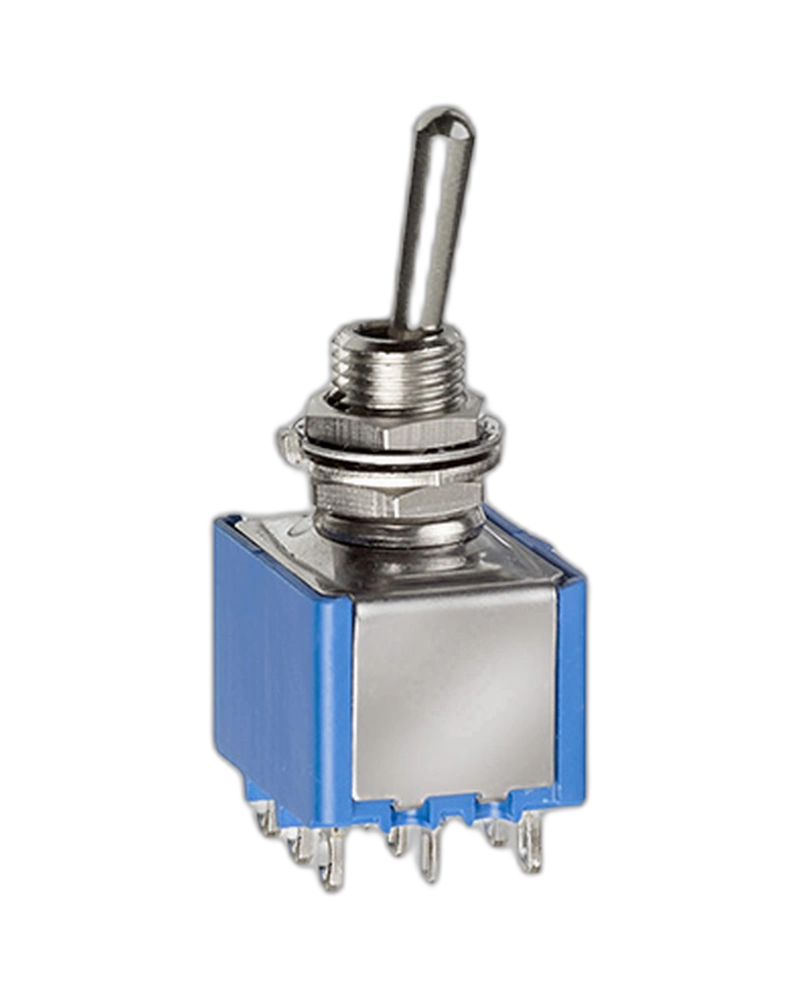

The 5236ADKB-2V Panel Switch is a reliable toggle switch with a single pole configuration and ON-ON function, featuring two lockable levers for stability and ease of use. Select Quantity
Key Features
- Dielectric strength: 1.000 Vrms 50 Hz min. between terminals1.500 Vrms 50 Hz min. between poles1.500 Vrms 50 Hz min. between terminals and frame Contact bounce : 2 ms max. Electrical life at full load :50.000 cycles for single and double pol
- Operating temperature: -40°C to +85°C
- Torque: 1,25 Nm (.922 Ft.lb) max. applied to nut
- Panel thickness: 2,5 mm (.098) with 2 nuts - 4 mm (.157) with 1 nut Low level or mechanical life : 100.000 cycles Low level or mechanical life : 100.000 cycles 17 actuators including toggles, paddle levers and locking levers in different
- Finish: Nickel-Plated,Levers:2 Locked Positions
- Initial contact resistance: 10 mΩ max.
- Insulation resistance: 1.000 MΩ min. at 500VDC
- Several bushing styles. 3 types of finish including military black. 3 approvals (UL - CSA - CECC). 4 types of sealing for terminal or front panel requirements. Numerous accessories available.
- 3 types of finish including military black. 3 approvals (UL - CSA - CECC). 4 types of sealing for terminal or front panel requirements. Numerous accessories available.
- 3 approvals (UL - CSA - CECC). 4 types of sealing for terminal or front panel requirements. Numerous accessories available.
- 4 types of sealing for terminal or front panel requirements. Numerous accessories available.
- Datasheet 3D CAD Files Name Last Updated File Type File Size toggle_switches_serie5000 22/01/2025
- 17 actuators including toggles, paddle levers and locking levers
- Number Of Poles: Single Pole,Contact Materials:Silver (Gold-Plated)
- Sealing: Combined Sealings,Terminals And Bushing:Straight PC
- Electrical Functions: ON ON
- Numerous accessories available.
Technical Specifications
Product Description
| Feature | Specification |
|---|
| Configuration | single pole configuration |
Specifications
| Feature | Specification |
|---|
| Environmental Specifications Operating temperature | -40°C to +85°C |
