Panel Switches 503

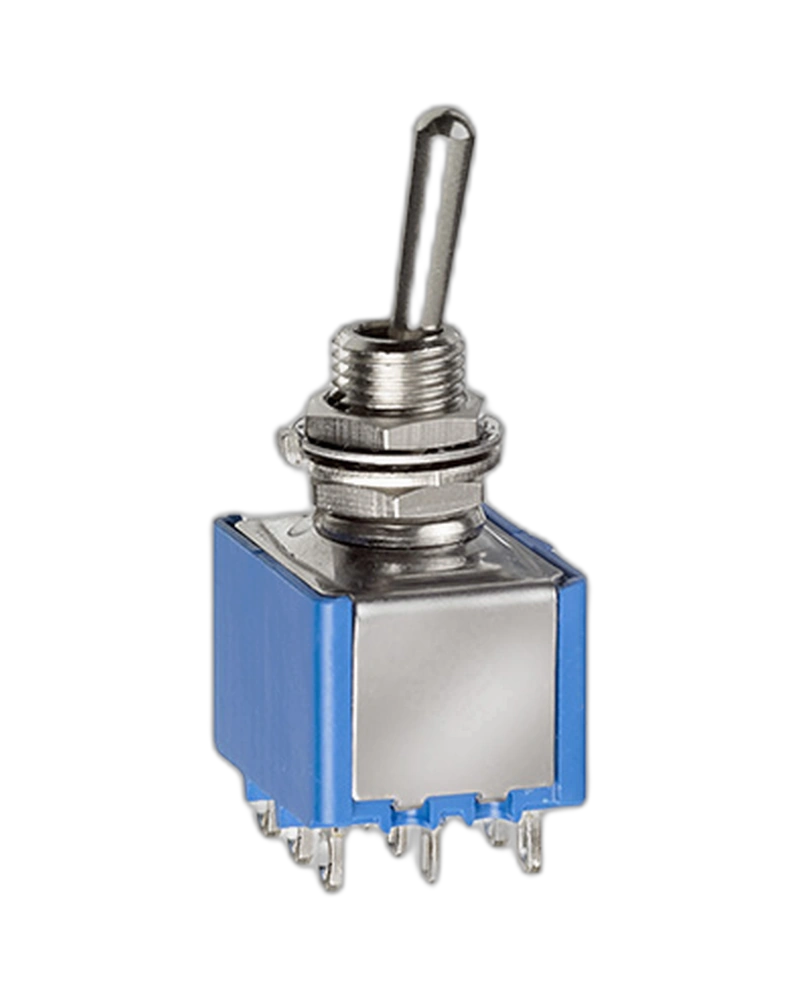

5036ADB The 5036ADB Panel Switch features a sleek design, single pole configuration, and ON ON function, making it ideal for controlling lighting and motors in various applications. Select Quantity
Key Features
- Sealing: Panel sealed to IP65, rear of panel IP40 The A1ICA00507J503 Panel Switch, also known as the Industrial Controls' Part Number A1ICA00507J503, is a versatile and reliable switch designed for various industrial applications
- Initial contact resistance: 10 mΩ max. at 1 A 2 VDC
- Dielectric strength: 1.000 Vrms 50 Hz min. between terminals1.500 Vrms 50 Hz min. between poles1.500 Vrms 50 Hz min. between terminals and frame Contact bounce : 2 ms max. Electrical life at full load :50.000 cycles for single and double pol
- Operating temperature: -20°C to +55°C Solder heat resistance : 350°C for 5 seconds
- Torque: 1,25 Nm (.922 Ft.lb) max. applied to nut
- Panel thickness: 2,5 mm (.098) with 2 nuts - 4 mm (.157) with 1 nut Low level or mechanical life : 100.000 cycles Low level or mechanical life : 100.000 cycles 17 actuators including toggles, paddle levers and locking levers in different
- Insulation resistance: 1.000 MΩ min. at 500VDC
- Moisture resistance: 56 days Datasheet 3D CAD Files Name Last Updated File Type File Size toggle_switches_serie_3500 07/11/2025
- voltage rating: 10mA 5VAC min, 6Amp 250VAC, 6Amp 12VDC
- Several bushing styles. 3 types of finish including military black. 3 approvals (UL - CSA - CECC). 4 types of sealing for terminal or front panel requirements. Numerous accessories available.
- 3 types of finish including military black. 3 approvals (UL - CSA - CECC). 4 types of sealing for terminal or front panel requirements. Numerous accessories available.
- 3 approvals (UL - CSA - CECC). 4 types of sealing for terminal or front panel requirements. Numerous accessories available.
- 4 types of sealing for terminal or front panel requirements. Numerous accessories available.
- Datasheet 3D CAD Files Name Last Updated File Type File Size toggle_switches_serie5000 22/01/2025
- Datasheet 3D CAD Files Name Last Updated File Type File Size toggle_switches_serie_3500 07/11/2025
- Number Of Poles: Single Pole,Contact Materials:Silver (Gold-Plated)
- Finish: Nickel-Plated
- Electrical Functions: Indicator
- Numerous accessories available.
Technical Specifications
Product Description
| Feature | Specification |
|---|
| Configuration | single pole configuration |
Specifications
| Feature | Specification |
|---|
| Insulation | Class 2 Lamp life : LED, 60,000 hours to 75% relative luminosity filament, approx. 5000 hours,neon, approx. 10,000 hour |
