Panel Switches 5000

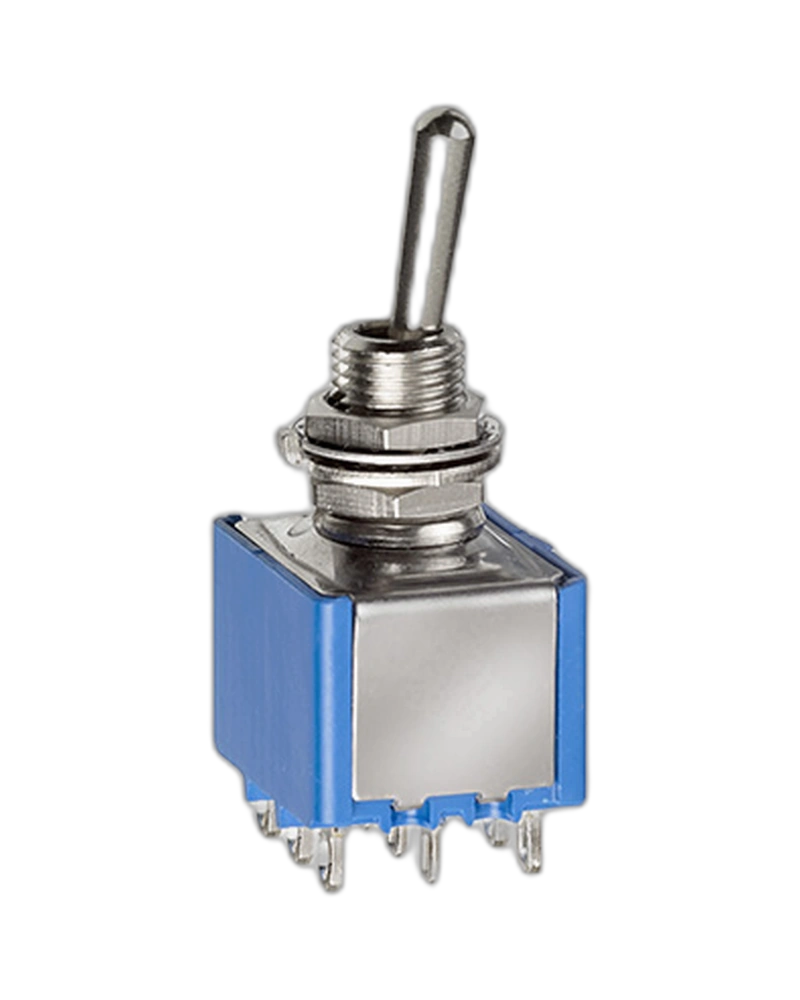

5000 5646AK The 5646AK Panel Switch features a sleek design and ergonomic shape for intuitive control. Its double pole configuration ensures reliable connections for lighting, appliances, and machinery. Select Quantity
Key Features
- Dielectric strength: 1.000 Vrms 50 Hz min. between terminals1.500 Vrms 50 Hz min. between poles1.500 Vrms 50 Hz min. between terminals and frame Contact bounce : 2 ms max. Electrical life at full load :50.000 cycles for single and double pol
- Operating temperature: -40°C to +85°C
- Torque: 1,25 Nm (.922 Ft.lb) max. applied to nut
- Panel thickness: 2,5 mm (.098) with 2 nuts - 4 mm (.157) with 1 nut Low level or mechanical life : 100.000 cycles Low level or mechanical life : 100.000 cycles Bushing Ø 11.9 (15/32) Panel mounting and PCB terminal combination available
- Initial contact resistance: 10 mΩ max.
- Insulation resistance: 1.000 MΩ min. at 500VDC
- Bushing Ø 11.9 (15/32) Panel mounting and PCB terminal combination available 1 to 4 pole configurations UL and CSA approved
- Panel mounting and PCB terminal combination available 1 to 4 pole configurations UL and CSA approved
- 1 to 4 pole configurations UL and CSA approved
- Datasheet 3D CAD Files Name Last Updated File Type File Size toggle_switches_serie5000 22/01/2025
- Jan 22, 2025 ·
- Bushing Ø 11.9 (15/32) Panel mounting and PCB terminal combination ...
- Number Of Poles: Single Pole,Contact Materials:Silver (Gold-Plated)
- Finish: Nickel-Plated
- Sealing: No Sealing Except Where Standard,Terminals And Bushing:Solder Lug Terminals
- Terminals: Right Angle or Quick Connect
- Electrical Functions: MOM OFF MOM
- UL and CSA approved
Technical Specifications
Product Description
| Feature | Specification |
|---|
| Configuration | double pole configuration |
Specifications
| Feature | Specification |
|---|
| Environmental Specifications Operating temperature | -40°C to +85°C |
| Jan 22, 2025 · Environmental Specifications Operating temperature | -40°C to +85°C |
| Silver (A) | 4 A 30 VDC 50 mA 10 VDC III and IV |
| Silver, gold plated (AD) | 4 A 30 VDC Gold plating withstands up to 100 mA 30 VDC 10 mA 50 mV 10 µA 5 V I to IV |
| Brass, gold plated (CD) | 0.4 VA at 20 VAC or DC 10 mA 50 mV 10 µA 5 V I and II |
| Contact | Maximum Minimum Level* |
| Case | diallylphthalate (DAP) or high temperature plastic material |
| Actuator | brass, nickel plated |
| Housing | stainless steel or steel tin plated |
| MATERIAL | BASIC P/N |
