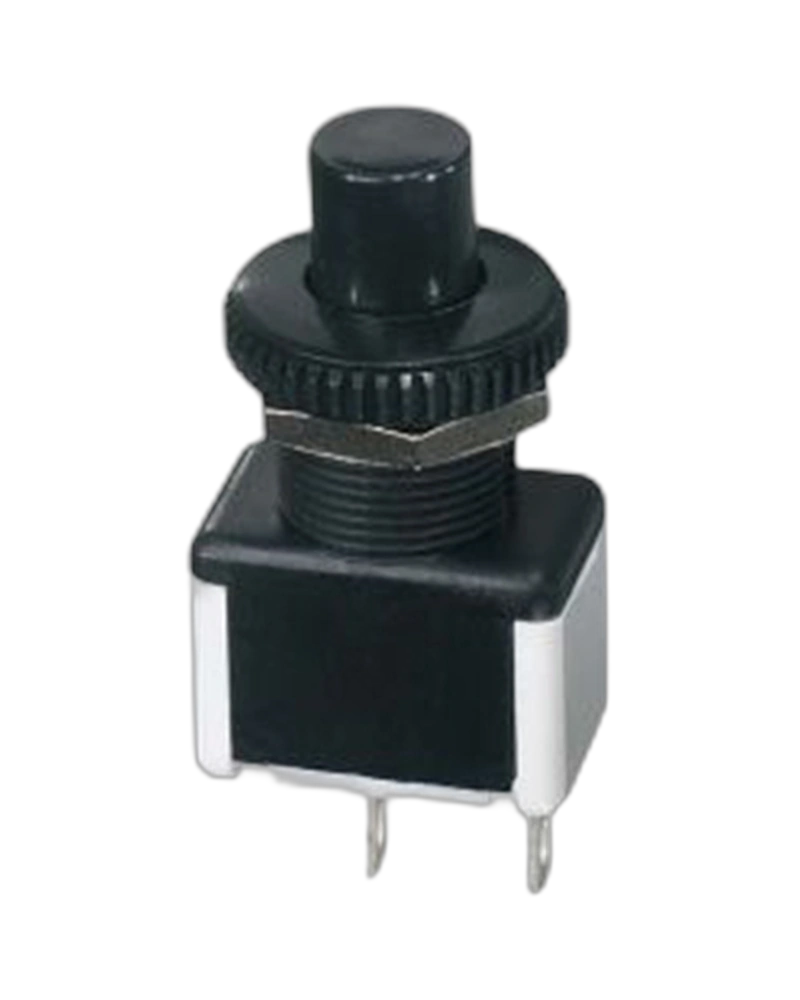

4843C06 4843C06 Panel Switch features a double pole design for versatile control of lighting and appliances. OFF MOM function ensures smooth operation and reliability. Select Quantity
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals3,000 Vrms 50 Hz min. between terminals and frame |
| Torque | 0.95 Nm (.70 Ft.lb) max. applied to nut |
| Panel thickness | 5 mm (.196) max. between 2 nuts |
| Total travel | 4.5 mm (.177) +/- 0.5 (.019) Hand soldering : 270 °C max. for 10 seconds max. - Iron Ø 3 mm (.118) Hand soldering : 270 °C max. for 10 seconds max. - Iron Ø 3 mm (.118) Momentary or alternate Butt action contacts UL, CSA |
| Operating temperature | -20 °C to +65 °C |
| Max. current/voltage rating with resistive load | - silver contacts (A) : 3 A 250 VAC - 6 A 125 VAC |
| Electrical Functions | OFF MOM |
