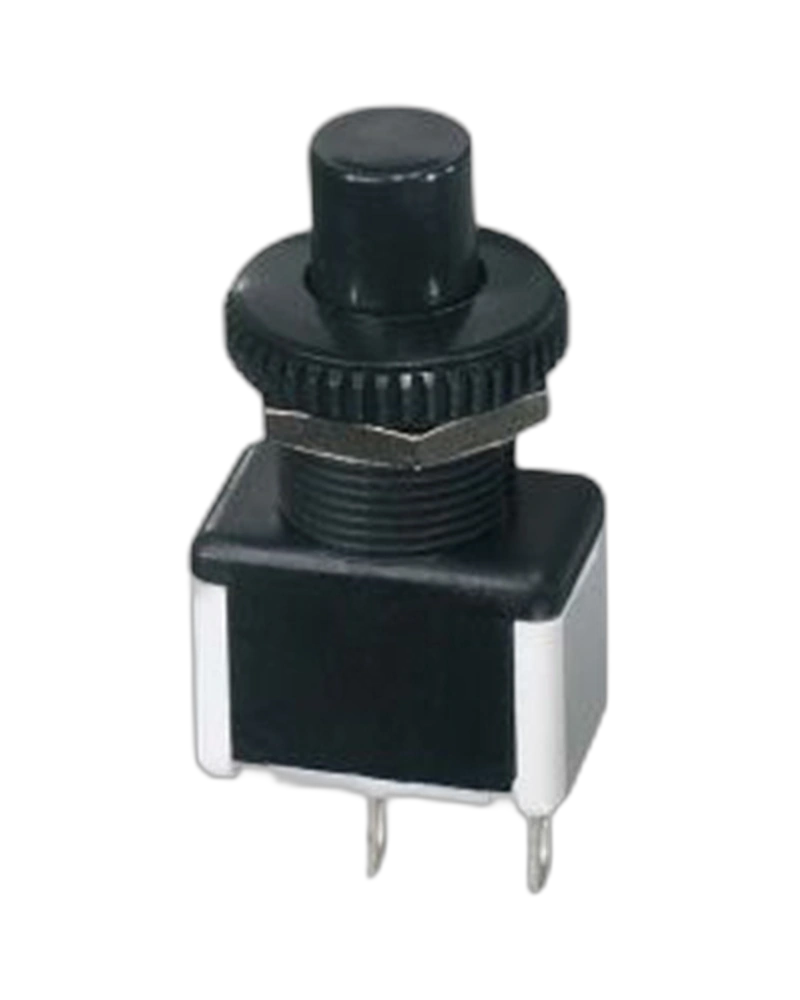

The APEM Panel Switches 4746A02 is a Switches and Pushbutton with documented product-specific characteristics including Terminals: Solder Lug Quick Connect; Insulation resistance: 1,000 MΩ min. at 500 VDC; Dielectric strength: 2,000 Vrms 50 Hz min. between terminals3,000 Vrms 50 Hz min. between terminals and frame.
The Panel Switches 4746A02 is a Switches and Pushbutton. The overview below is based on the verified product information available for this model.
Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.
Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals3,000 Vrms 50 Hz min. between terminals and frame |
| Torque | 0.95 Nm (.70 Ft.lb) max. applied to nut |
| Panel thickness | 5 mm (.196) max. between 2 nuts |
| Total travel | 4.5 mm (.177) +/- 0.5 (.019) Hand soldering: 270 °C max. for 10 seconds max. - Iron Ø 3 mm (.118) Hand soldering: 270 °C max. for 10 seconds max. - Iron Ø 3 mm (.118) Momentary or alternate Butt action contacts UL, CSA |
| Operating temperature | -20 °C to +65 °C |
| Max. current/voltage rating with resistive load | - silver contacts (A): 3 A 250 VAC - 6 A 125 VAC |
| Electrical Functions | ON ON Contact Materials: Silver Models |
The APEMPanel Switches 4746A02 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals3,000 Vrms 50 Hz min. between terminals and frame |
| Torque | 0.95 Nm (.70 Ft.lb) max. applied to nut |
| Panel thickness | 5 mm (.196) max. between 2 nuts |
| Total travel | 4.5 mm (.177) +/- 0.5 (.019) Hand soldering : 270 °C max. for 10 seconds max. - Iron Ø 3 mm (.118) Hand soldering : 270 °C max. for 10 seconds max. - Iron Ø 3 mm (.118) Momentary or alternate Butt action contacts UL, CSA |
| Operating temperature | -20 °C to +65 °C |
| Max. current/voltage rating with resistive load | - silver contacts (A) : 3 A 250 VAC - 6 A 125 VAC |
| Electrical Functions | ON ON Contact Materials: Silver Models |
