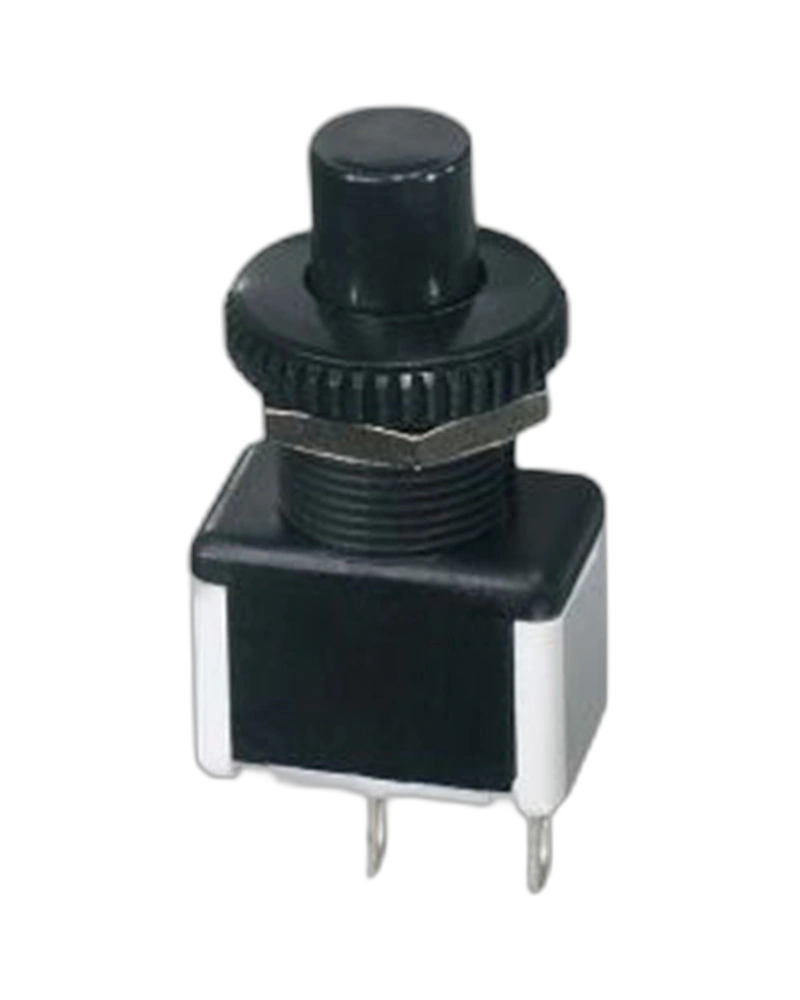

The APEM Panel Switches 4741C02 are double pole autoswitches with momentary or alternate butt action contacts, designed for industrial applications. These switches feature UL, CSA, and VDE (EN 61058-1) approval, 10,000 cycle electrical life, and robust performance across -20°C to +65°C operating temperatures. Ideal for reliable control in demanding environments.
The APEM Panel Switches 4741C02 are double pole autoswitches engineered for high-reliability industrial control systems. Featuring momentary or alternate butt action contacts with UL, CSA, and VDE (EN 61058-1) certification, these switches deliver precise electrical switching performance in harsh conditions. With an electrical life of 10,000 cycles at full load and operation across a wide temperature range from -20°C to +65°C, the 4741C02 ensures dependable functionality in critical applications where reliability and safety are paramount.
The APEM Panel Switches 4741C02 deliver robust electrical performance with a maximum current rating of 3 A at 250 VAC or 6 A at 125 VAC for resistive loads. Initial contact resistance is limited to 10 mΩ max., ensuring minimal voltage drop during operation. Insulation resistance exceeds 1,000 MΩ min. at 500 VDC, while dielectric strength meets 2,000 Vrms 50 Hz min. between terminals and 3,000 Vrms 50 Hz min. between terminals and frame, providing exceptional protection against electrical faults.
Engineered for extreme conditions, these switches operate reliably across a temperature range of -20°C to +65°C. This wide operational range ensures consistent performance in both cold industrial environments and hot climates. The switches also feature a panel thickness of 5 mm max. between nuts, accommodating standard mounting requirements without compromising structural integrity.
The 4741C02 utilizes solder lug quick connect terminals for straightforward installation. Maximum torque of 0.95 Nm (.70 ft.lb) is required for nut tightening, ensuring secure connections without damage. Hand soldering is supported up to 270°C for 10 seconds with a 3 mm iron tip, facilitating reliable soldering in industrial settings.
Compliant with UL, CSA, and VDE (EN 61058-1) standards, the Panel Switches 4741C02 meet stringent international safety requirements. This certification ensures the switches are suitable for use in critical applications where electrical safety and reliability are essential, providing peace of mind for industrial users.
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals3,000 Vrms 50 Hz min. between terminals and frame |
| Torque | 0.95 Nm (.70 Ft.lb) max. applied to nut |
| Panel thickness | 5 mm (.196) max. between 2 nuts |
| Total travel | 4.5 mm (.177) +/- 0.5 (.019) Hand soldering : 270 °C max. for 10 seconds max. - Iron Ø 3 mm (.118) Hand soldering : 270 °C max. for 10 seconds max. - Iron Ø 3 mm (.118) Momentary or alternate Butt action contacts UL, CSA |
| Operating temperature | -20 °C to +65 °C |
| Max. current/voltage rating with resistive load | - silver contacts (A) : 3 A 250 VAC - 6 A 125 VAC |
| Electrical Functions | ON OFF |
The APEMPanel Switches 4741C02 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals3,000 Vrms 50 Hz min. between terminals and frame |
| Torque | 0.95 Nm (.70 Ft.lb) max. applied to nut |
| Panel thickness | 5 mm (.196) max. between 2 nuts |
| Total travel | 4.5 mm (.177) +/- 0.5 (.019) Hand soldering : 270 °C max. for 10 seconds max. - Iron Ø 3 mm (.118) Hand soldering : 270 °C max. for 10 seconds max. - Iron Ø 3 mm (.118) Momentary or alternate Butt action contacts UL, CSA |
| Operating temperature | -20 °C to +65 °C |
| Max. current/voltage rating with resistive load | - silver contacts (A) : 3 A 250 VAC - 6 A 125 VAC |
| Electrical Functions | ON OFF |
