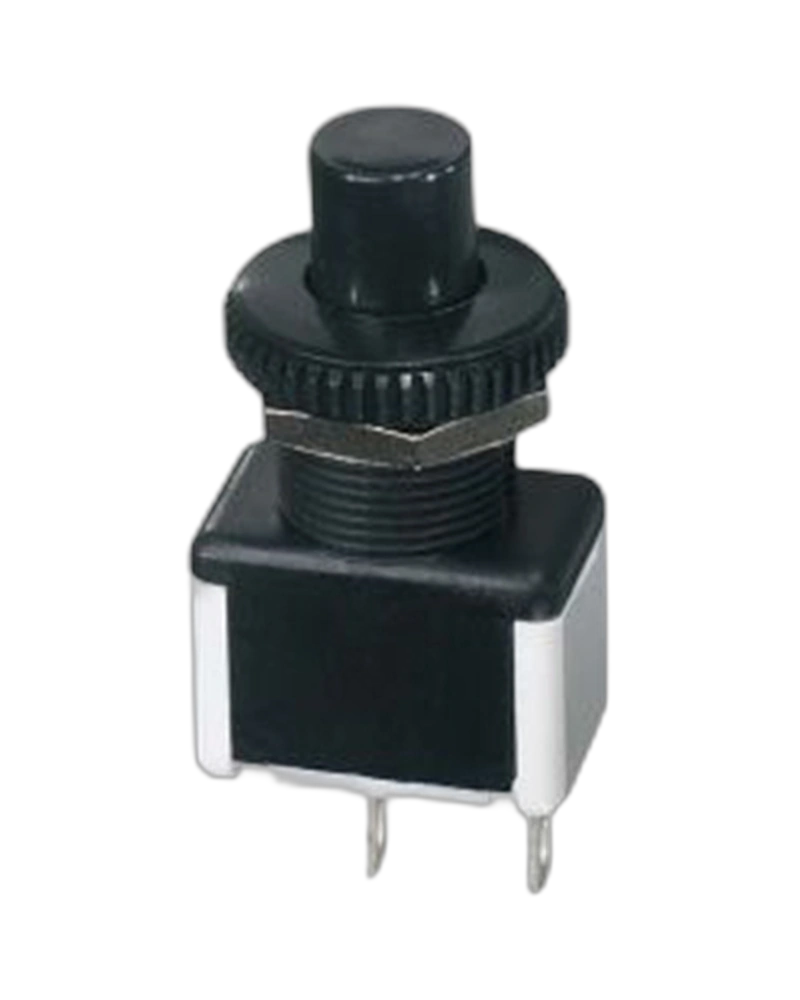

The APEM Panel Switches 4741A02 is a Switches and Pushbutton with documented product-specific characteristics including Insulation resistance: 1,000 MΩ min. at 500 VDC; Dielectric strength: 2,000 Vrms 50 Hz min. between terminals3,000 Vrms 50 Hz min. between terminals and frame; Torque: 0.95 Nm (.70 Ft.lb) max. applied to nut.
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals3,000 Vrms 50 Hz min. between terminals and frame |
| Torque | 0.95 Nm (.70 Ft.lb) max. applied to nut |
| Panel thickness | 5 mm (.196) max. between 2 nuts |
| Total travel | 4.5 mm (.177) +/- 0.5 (.019) Hand soldering : 270 °C max. for 10 seconds max. - Iron Ø 3 mm (.118) Hand soldering : 270 °C max. for 10 seconds max. - Iron Ø 3 mm (.118) Momentary or alternate Butt action contacts UL, CSA |
| Operating temperature | -20 °C to +65 °C |
| Max. current/voltage rating with resistive load | - silver contacts (A) : 3 A 250 VAC - 6 A 125 VAC |
| Electrical Functions | ON OFF |
