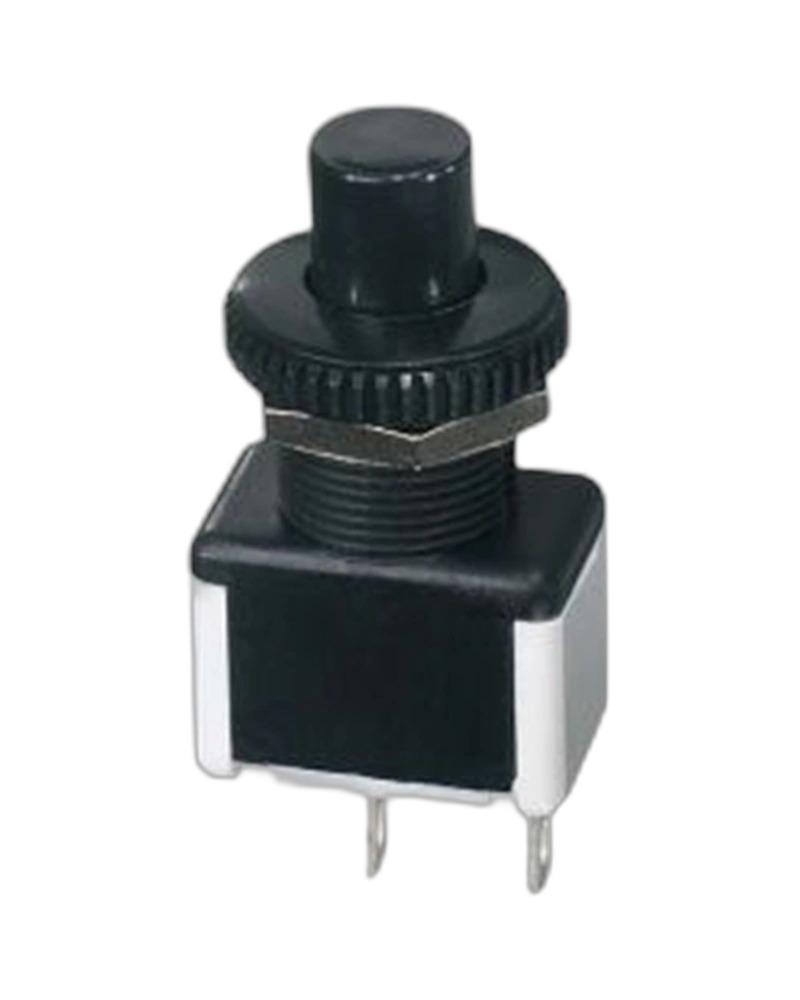

Panel Switches 4736C06
The APEM Panel Switches 4736C06 is a Switches and Pushbutton with documented product-specific characteristics including Total travel: 4.5 mm (.177) +/- 0.5 (.019) Hand soldering: 270 °C max. for 10 seconds max. - Iron Ø 3 mm (.118) Hand soldering: 270 °C max. for 10 seconds max. - Iron Ø 3 mm (.118) Momentary or alternate Butt action contacts UL, CSA; Terminals: Solder Lug Quick Connect; Max. current/voltage rating with resistive load: - silver contacts (A): 3 A 250 VAC - 6 A 125 VAC.
Key Features
- Total travel: 4.5 mm (.177) +/- 0.5 (.019) Hand soldering: 270 °C max. for 10 seconds max. - Iron Ø 3 mm (.118) Hand soldering: 270 °C max. for 10 seconds max. - Iron Ø 3 mm (.118) Momentary or alternate Butt action contacts UL, CSA
- Terminals: Solder Lug Quick Connect
- Max. current/voltage rating with resistive load: - silver contacts (A): 3 A 250 VAC - 6 A 125 VAC
- Panel cut-out: Ø 12,2 (.480) Butt action contacts Button returns in upper position after actuation. UL, CSA and VDE (EN 61058-1) approved Several actuator colors
- Momentary or alternate Butt action contacts UL, CSA and VDE (EN 61058-1) approved
- Butt action contacts UL, CSA and VDE (EN 61058-1) approved
- UL, CSA and VDE (EN 61058-1) approved
- Number Of Poles: Single Pole,Actuator Colors:Red,Contact Materials:Copper (Silver-Plated),Models
- Electrical Functions: ON ON Contact Materials: Copper (Silver-Plated) Models
Technical Specifications
Product Description
| Feature | Specification |
|---|
| Configuration | Single Pole configuration |
Specifications
| Feature | Specification |
|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals3,000 Vrms 50 Hz min. between terminals and frame |
| Torque | 0.95 Nm (.70 Ft.lb) max. applied to nut |
| Panel thickness | 5 mm (.196) max. between 2 nuts |
| Initial contact resistance | 10 mΩ max. |
| Electrical life | 10,000 cycles at full load |
| Operating temperature | -20 °C to +65 °C |
