Explore performance details, construction highlights, applications, and technical information in one clear overview.

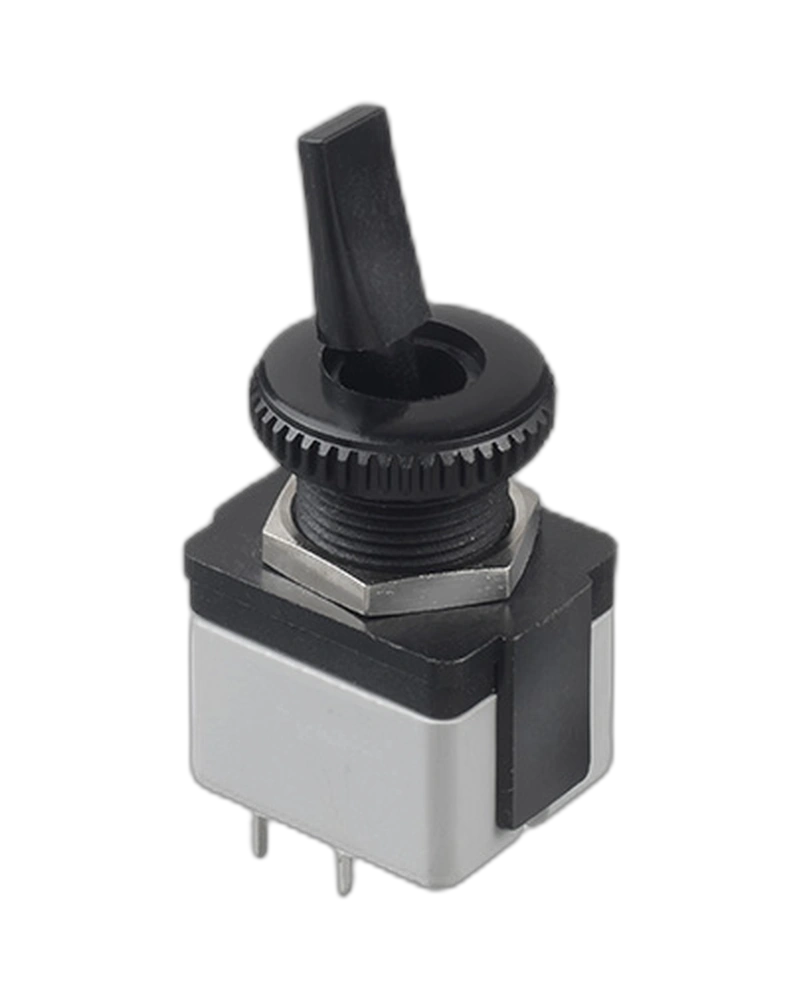

The APEM Panel Switches 4656A-32 is a Switches and Pushbutton with documented product-specific characteristics including Terminals: Solder Lug Quick Connect; Electrical Functions: ON ON; Dielectric strength: 2,000 Vrms 50 Hz min. between terminals2,500 Vrms 50 Hz min. between poles and between terminals and frame.
4656A-32 Select Quantity
| Feature | Specification |
|---|---|
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals2,500 Vrms 50 Hz min. between poles and between terminals and frame |
| Torque | 0.95 Nm (.70 Ft.lb) max. applied to nut |
| Panel thickness | 5 mm (.196) between 2 nuts Hand soldering: 270 °C max. for 10 seconds max. - iron Ø3 (.118) |
| Initial contact resistance | 10 mΩ max. |
| Insulation resistance | 1,000 MΩ min. at 500VDC |
| Electrical life | 10,000 cycles at full load |
| Operating temperature | -20 °C to +55 °C |
| Number Of Poles | Three Poles,Actuators:Insulated Round Lever Black,Contact Materials:Silver |
| Feature | Specification |
|---|---|
| Electrical Functions | ON ON |
| Feature | Specification |
|---|---|
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals2,500 Vrms 50 Hz min. between poles and between terminals and frame |
| Torque | 0.95 Nm (.70 Ft.lb) max. applied to nut |
| Panel thickness | 5 mm (.196) between 2 nuts Hand soldering: 270 °C max. for 10 seconds max. - iron Ø3 (.118) |
| Insulation resistance | 1,000 MΩ min. at 500VDC |
| Operating temperature | -20 °C to +55 °C |
