Explore performance details, construction highlights, applications, and technical information in one clear overview.

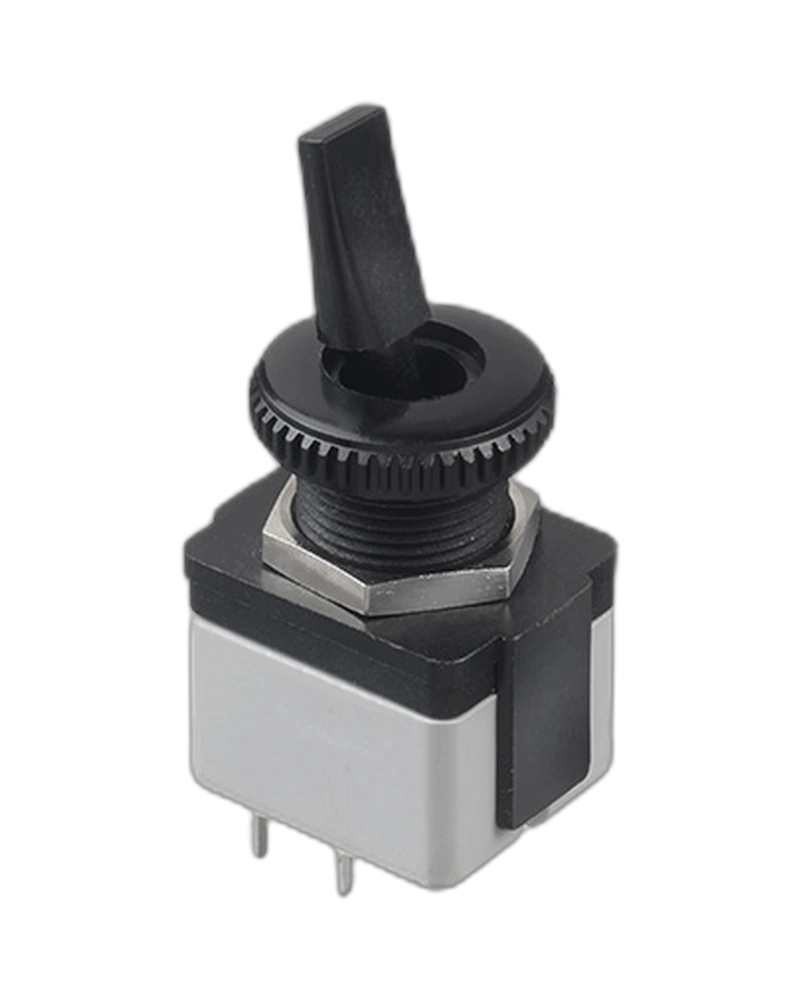

The APEM Panel Switches 4651A-32 is a Switches and Pushbutton with documented product-specific characteristics including Dielectric strength: 2,000 Vrms 50 Hz min. between terminals2,500 Vrms 50 Hz min. between poles and between terminals and frame; Torque: 0.95 Nm (.70 Ft.lb) max. applied to nut; Panel thickness: 5 mm (.196) between 2 nuts Hand soldering: 270 °C max. for 10 seconds max. - iron Ø3 (.118) Hand soldering: 270 °C max. for 10 seconds max. - iron Ø3 (.118).
The Panel Switches 4651A-32 is a Switches and Pushbutton. The overview below is based on the verified product information available for this model.
Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.
Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.
| Feature | Specification |
|---|---|
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals2,500 Vrms 50 Hz min. between poles and between terminals and frame |
| Torque | 0.95 Nm (.70 Ft.lb) max. applied to nut |
| Panel thickness | 5 mm (.196) between 2 nuts Hand soldering: 270 °C max. for 10 seconds max. - iron Ø3 (.118) Hand soldering: 270 °C max. for 10 seconds max. - iron Ø3 (.118) |
| Insulation resistance | 1,000 MΩ min. at 500VDC |
| Operating temperature | -20 °C to +55 °C |
| Electrical Functions | ON OFF |
The APEMPanel Switches 4651A-32 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals2,500 Vrms 50 Hz min. between poles and between terminals and frame |
| Torque | 0.95 Nm (.70 Ft.lb) max. applied to nut |
| Panel thickness | 5 mm (.196) between 2 nuts Hand soldering: 270 °C max. for 10 seconds max. - iron Ø3 (.118) Hand soldering: 270 °C max. for 10 seconds max. - iron Ø3 (.118) |
| Insulation resistance | 1,000 MΩ min. at 500VDC |
| Operating temperature | -20 °C to +55 °C |
| Electrical Functions | ON OFF |
