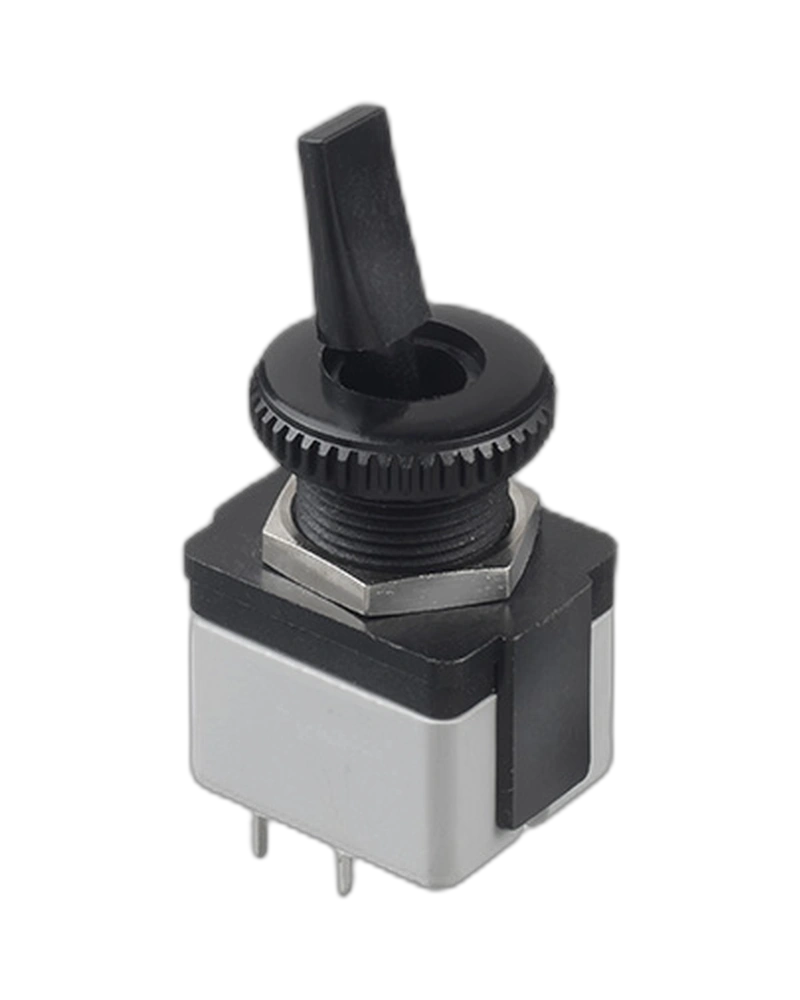

4600-4400 4651A-32 The 4651A-32 Panel Switch features a sleek design and sturdy construction, offering three poles for efficient control of lights and appliances with easy ON/OFF operation. Select Quantity
| Feature | Specification |
|---|---|
| UL/CSA | 4600A 1-2 1-6-9 3 A 250 VAC - 6 A 125 VAC |
| VDE (EN 61058-1) | 4400A 1-2 1-6 4(2) A 250 VAC |
| 4600A | 1-2-3 1-6 4(2) A 250 VAC |
| Actuator | - insulated : polyamide 6-6 |
| Case | melamine phenolic |
| MATERIAL | BASIC P/N |
| Feature | Specification |
|---|---|
| Dielectric strength | 2,000 Vrms 50 Hz min. between terminals2,500 Vrms 50 Hz min. between poles and between terminals and frame |
| Torque | 0.95 Nm (.70 Ft.lb) max. applied to nut |
| Panel thickness | 5 mm (.196) between 2 nuts Hand soldering: 270 °C max. for 10 seconds max. - iron Ø3 (.118) Hand soldering: 270 °C max. for 10 seconds max. - iron Ø3 (.118) |
| Insulation resistance | 1,000 MΩ min. at 500VDC |
| Operating temperature | -20 °C to +55 °C |
| Electrical Functions | ON OFF |
| Feature | Specification |
|---|---|
| UL/CSA | 4600A 1-2 1-6-9 3 A 250 VAC - 6 A 125 VAC |
| VDE (EN 61058-1) | 4400A 1-2 1-6 4(2) A 250 VAC |
| 4600A | 1-2-3 1-6 4(2) A 250 VAC |
