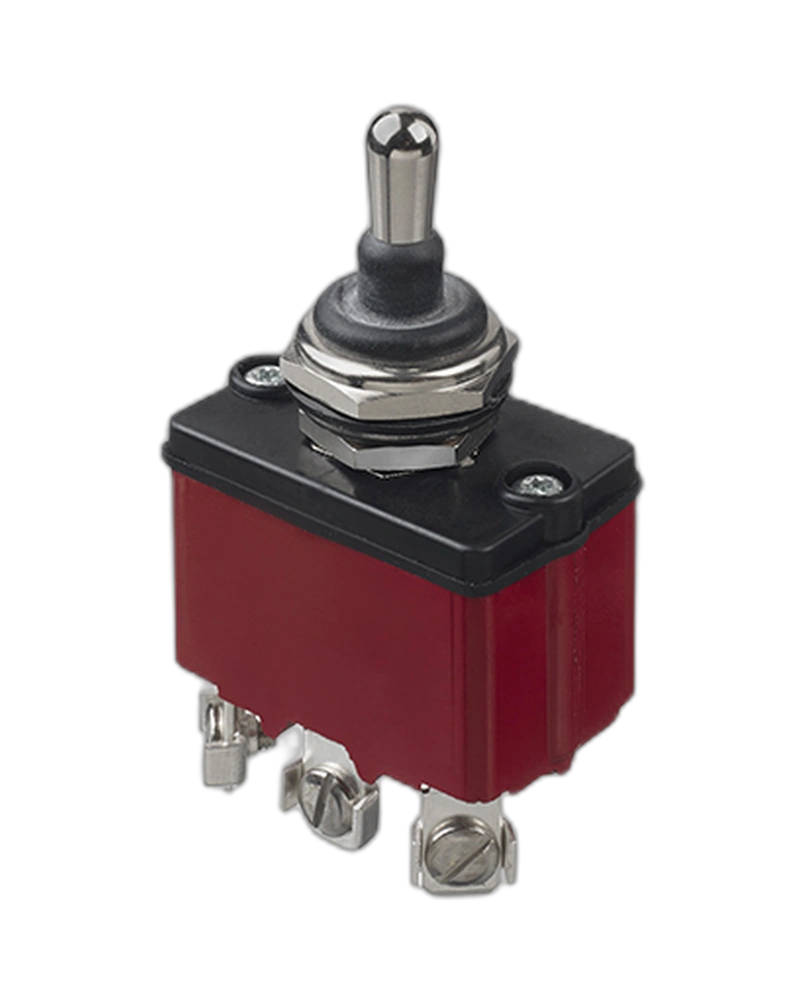

The APEM Panel Switches 3648NF/2 is a Switches and Pushbutton with documented product-specific characteristics including Terminals: Solder lugquickconnect Special Lever: Long lever; Dielectric strength: 2.500 Vrms 50 Hz min. between terminals3.000 Vrms 50 Hz min. between terminals and frame; Operating temperature: -40°C to +85°C Sealing to IP67 according to IEC 60529.
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Dielectric strength | 2.500 Vrms 50 Hz min. between terminals3.000 Vrms 50 Hz min. between terminals and frame |
| Operating temperature | -40°C to +85°C Sealing to IP67 according to IEC 60529 |
| Torque | 1,50 Nm (1.10 Ft.lb) max. applied to nut |
| Panel thickness | 2 mm (.079) max. with all accessories |
| Insulation resistance | 1.000 MΩ min. at 500VDC |
| Max. current/voltage rating with resistive load | 12A 28VDC |
| Electrical Functions | ON OFF MOM |
