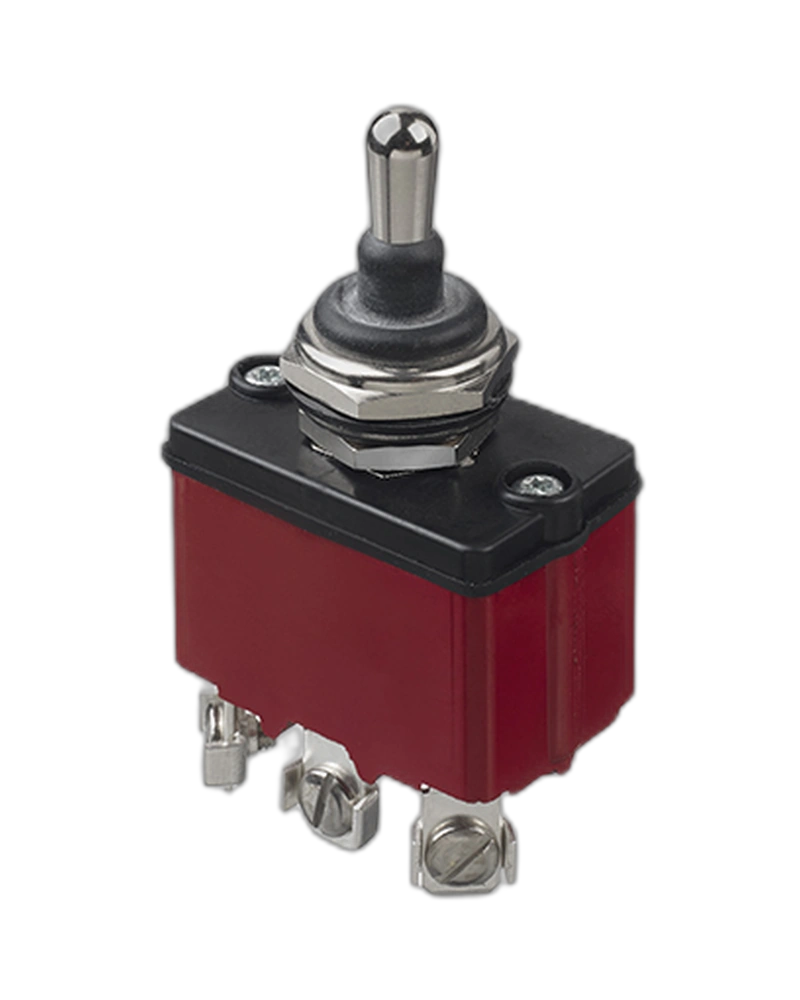

Panel Switches 3648NF

3600NF 3648NFX1052 Terminals: Screw Special Lever: Long Lever Number Of Poles: Double Pole 3600NF 3648NFX1052 Terminals: Screw Special Lever: Long Lever Number Of Poles: Double Pole 3600NF 3631NFGX1052 Finish: Black Terminals: Screw Special Lever: Long Lever 3631NFGX1052 Finish: Black 3600NF 3635NF/2GX1052 Finish: Black Terminals: Solder Lug Quick Connect Special Lever: Long Lever 3635NF/2GX1052 Terminals: Solder Lug Quick Connect 3600NF 3631NFGUL Finish: Black Terminals: Screw Number Of Poles: Single Pole 3631NFGUL Number Of Poles: Single Pole 3600NF 3644NFGX1052 Finish: Black Terminals: Screw Special Lever: Long Lever 3644NFGX1052 3600NF 3646NF/2GX1052UL Finish: Black Terminals: Solder Lug Quick Connect Special Lever: Long Lever 3646NF/2GX1052UL 3600NF 3639NFGUL Finish: Black Terminals: Screw Number Of Poles: Single Pole 3639NFGUL 3600NF 3649NFGX1052 Finish: Black Terminals: Screw Special Lever: Long Lever 3649NFGX1052 3600NF 3645NFGX1052UL Finish: Black Terminals: Screw Special Lever: Long Lever 3645NFGX1052UL 3600NF 3634NFG Finish: Black Terminals: Screw Number Of Poles: Single Pole 3634NFG 3600NF 3647NF/2UL Terminals: Solder Lug Quick Connect Number Of Poles: Double Pole Electrical Functions: MOM OFF MOM 3647NF/2UL Electrical Functions: MOM OFF MOM 3600NF 3646NFGX1052UL Finish: Black Terminals: Screw Special Lever: Long Lever 3646NFGX1052UL 3600NF 3648NFGX1052UL Finish: Black Terminals: Screw Special Lever: Long Lever 3648NFGX1052UL 3600NF 3646NF/2X1052UL Terminals: Solder Lug Quick Connect Special Lever: Long Lever Number Of Poles: Double Pole 3646NF/2X1052UL 3600NF 3644NFX1052UL Terminals: Screw Special Lever: Long Lever Number Of Poles: Double Pole 3644NFX1052UL 3600NF 3639NF/2X1052UL Terminals: Solder Lug Quick Connect Special Lever: Long Lever Number Of Poles: Single Pole 3639NF/2X1052UL 3600NF 3631NF/2GX1052UL Finish: Black Terminals: Solder Lug Quick Connect Special Lever: Long Lever 3631NF/2GX1052UL 3600NF 3638NFGX1052UL Finish: Black Terminals: Screw Special Lever: Long Lever 3638NFGX1052UL 3600NF 3649NF/2G Finish: Black Terminals: Solder Lug Quick Connect Number Of Poles: Double Pole

Key Features

• Terminals: Solder Lug Quick Connect
• Dielectric strength: 2.500 Vrms 50 Hz min. between terminals3.000 Vrms 50 Hz min. between terminals and frame
• Operating temperature: -40°C to +85°C Sealing to IP67 according to IEC 60529
• Torque: 1,50 Nm (1.10 Ft.lb) max. applied to nut
• Panel thickness: 2 mm (.079) max. with all accessories Datasheet 3D CAD Files Name Last Updated File Type File Size toggle_switches_serie_3600NF 16/08/2024
• Initial contact resistance: 10 mΩ max.
• Insulation resistance: 1.000 MΩ min. at 500VDC
• Electrical life: 10.000 cycles at full load
• Max. current/voltage rating with resistive load: 12A 28VDC
• Sealed to IP67 Solid silver contacts UL approved
• Datasheet 3D CAD Files Name Last Updated File Type File Size toggle_switches_serie_3600NF 16/08/2024
• Number Of Poles: Double Pole
• Electrical Functions: ON OFF MOM
• Finish: Black
• Solid silver contacts UL approved
• UL approved
