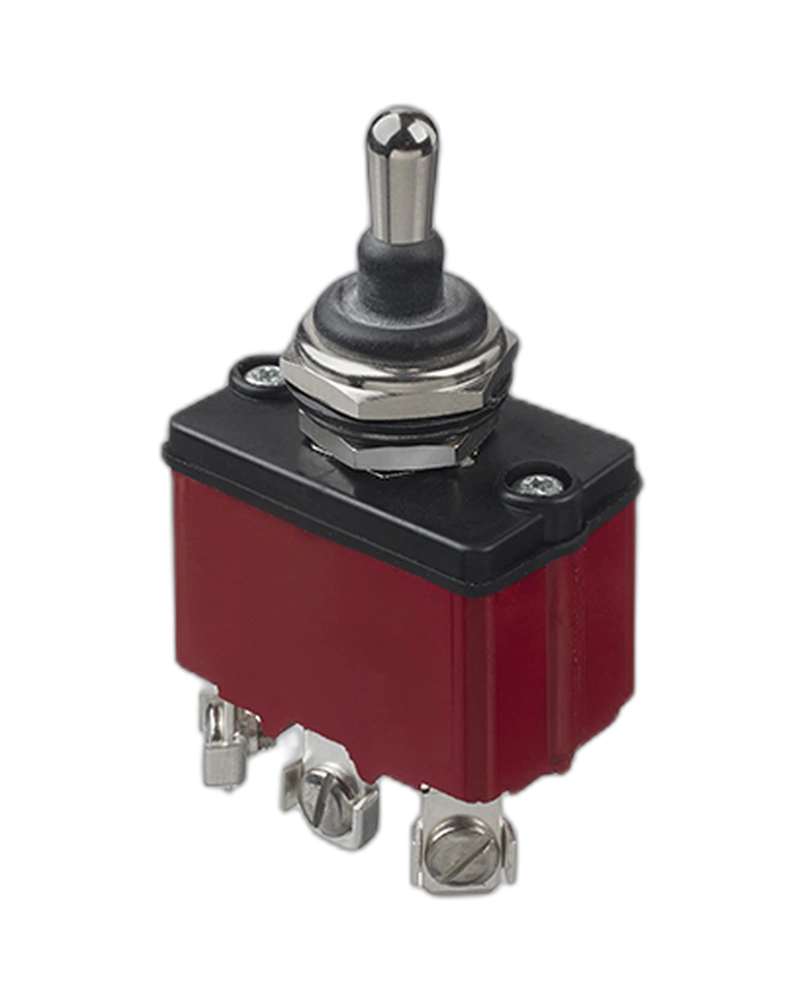

Panel Switches 3647NF
The 3647NF/2X1052 Panel Switch features a double pole design for reliable control of multiple circuits, ensuring durability and ease of use for demanding electrical applications. Select Quantity
Key Features
- Operating temperature: -40°C to +85°C Sealing to IP67 according to IEC 60529
- Panel thickness: 2 mm (.079) max. with all accessories Sealed to IP67 Solid silver contacts UL approved Solid silver contacts UL approved UL approved The 3647NF Panel Switch features a sleek design, double pole configuration, and momenta
- Max. current/voltage rating with resistive load: 12A 28VDC
- Sealed to IP67 Solid silver contacts UL approved
- The 3647NF Panel Switch features a sleek design, double pole configuration, and momentary on-off-momentary operation for precise control and enhanced safety in electrical systems.
- The 3647NF/2G Panel Switch features a double pole design for safety, with MOM OFF MOM functionality for efficient circuit control and reliable performance.
- Terminals: Solder Lug Quick Connect,Special Lever:Long Lever
- Electrical Functions: MOM OFF MOM
- Finish: Black
- Solid silver contacts UL approved
- UL approved
Technical Specifications
Product Description
| Feature | Specification |
|---|
| Configuration | double pole configuration |
Specifications
| Feature | Specification |
|---|
| Sealing | IP67 |
| Dielectric strength | 2.500 Vrms 50 Hz min. between terminals3.000 Vrms 50 Hz min. between terminals and frame |
| Torque | 1,50 Nm (1.10 Ft.lb) max. applied to nut |
| Initial contact resistance | 10 mΩ max. |
| Insulation resistance | 1.000 MΩ min. at 500VDC |
| Electrical life | 10.000 cycles at full load |
| Number Of Poles | Double Pole |
