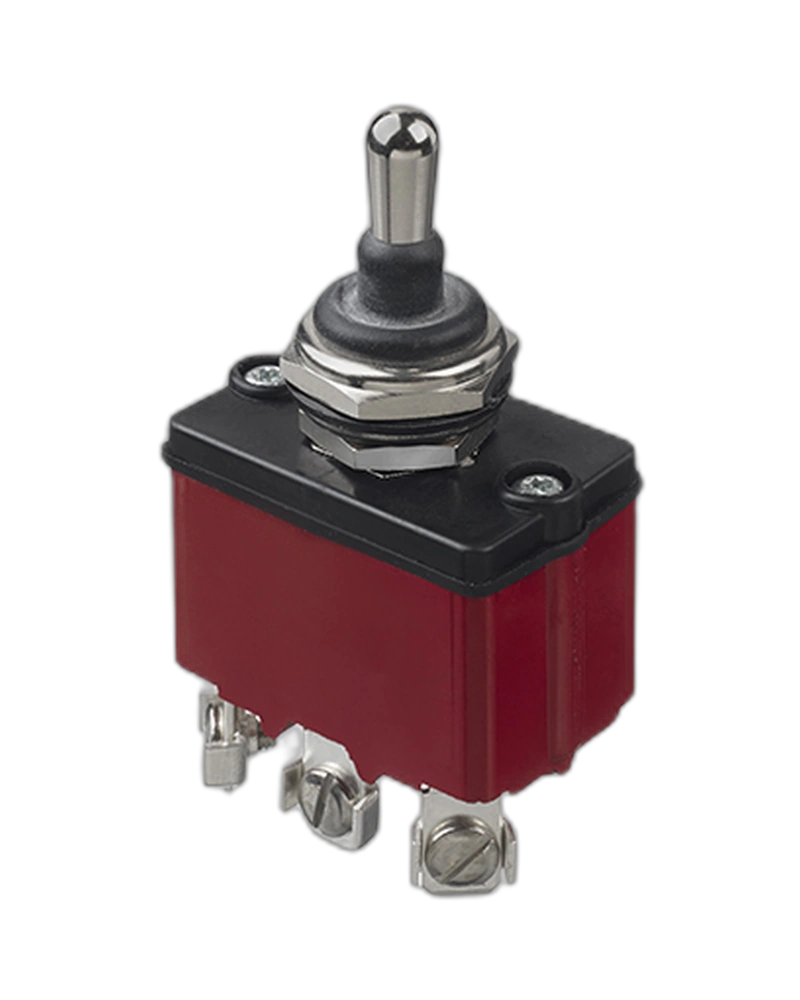

Panel Switches 3646NFX1052UL
The APEM Panel Switches 3646NFX1052UL is a Switches and Pushbutton with documented product-specific characteristics including Dielectric strength: 2.500 Vrms 50 Hz min. between terminals3.000 Vrms 50 Hz min. between terminals and frame; Operating temperature: -40°C to +85°C Sealing to IP67 according to IEC 60529; Torque: 1,50 Nm (1.10 Ft.lb) max. applied to nut.
Key Features
- Dielectric strength: 2.500 Vrms 50 Hz min. between terminals3.000 Vrms 50 Hz min. between terminals and frame
- Operating temperature: -40°C to +85°C Sealing to IP67 according to IEC 60529
- Torque: 1,50 Nm (1.10 Ft.lb) max. applied to nut
- Panel thickness: 2 mm (.079) max. with all accessories
- Initial contact resistance: 10 mΩ max.
- Insulation resistance: 1.000 MΩ min. at 500VDC
- Electrical life: 10.000 cycles at full load
- Max. current/voltage rating with resistive load: 12A 28VDC
- Sealed to IP67 Solid silver contacts UL approved
- Number Of Poles: Double Pole
- Terminals: Screw,Special Lever:Long Lever
- Electrical Functions: ON ON
- Solid silver contacts UL approved
- UL approved
Technical Specifications
Product Description
| Feature | Specification |
|---|
| Configuration | double pole configuration |
Specifications
| Feature | Specification |
|---|
| Sealing | IP67 |
