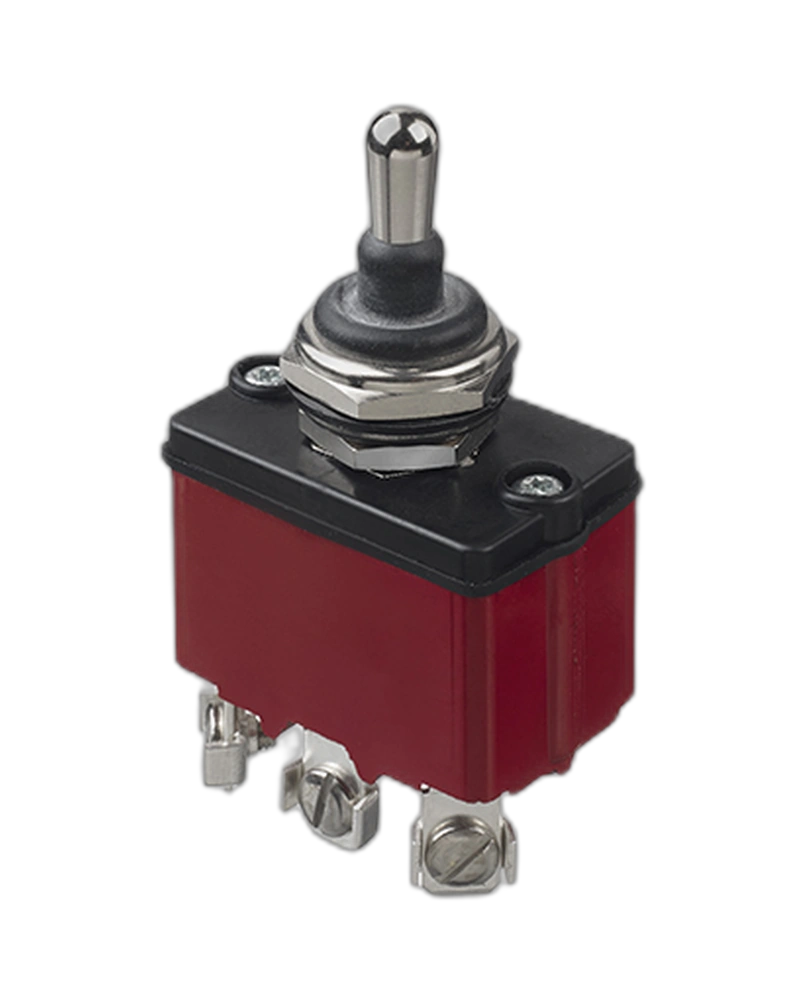

Panel Switches 3646NF

3646NF/2GX1052UL Finish : Black Terminals : Solder Lug Quick Connect Special Lever : Long Lever 3600NF 3646NF/2GX1052UL Finish : Black Terminals : Solder Lug Quick Connect Special Lever : Long Lever 3600NF 3639NFGUL Finish : Black Terminals : Screw Number Of Poles : Single Pole 3639NFGUL Terminals : Screw Number Of Poles : Single Pole 3600NF 3649NFGX1052 Finish : Black Terminals : Screw Special Lever : Long Lever 3649NFGX1052 3600NF 3645NFGX1052UL Finish : Black Terminals : Screw Special Lever : Long Lever 3645NFGX1052UL 3600NF 3634NFG Finish : Black Terminals : Screw Number Of Poles : Single Pole 3634NFG 3600NF 3647NF/2UL Terminals : Solder Lug Quick Connect Number Of Poles : Double Pole Electrical Functions : MOM OFF MOM 3647NF/2UL Number Of Poles : Double Pole Electrical Functions : MOM OFF MOM 3600NF 3646NFGX1052UL Finish : Black Terminals : Screw Special Lever : Long Lever 3646NFGX1052UL 3600NF 3648NFGX1052UL Finish : Black Terminals : Screw Special Lever : Long Lever 3648NFGX1052UL 3600NF 3646NF/2X1052UL Terminals : Solder Lug Quick Connect Special Lever : Long Lever Number Of Poles : Double Pole 3646NF/2X1052UL 3600NF 3644NFX1052UL Terminals : Screw Special Lever : Long Lever Number Of Poles : Double Pole 3644NFX1052UL 3600NF 3639NF/2X1052UL Terminals : Solder Lug Quick Connect Special Lever : Long Lever Number Of Poles : Single Pole 3639NF/2X1052UL 3600NF 3631NF/2GX1052UL Finish : Black Terminals : Solder Lug Quick Connect Special Lever : Long Lever 3631NF/2GX1052UL 3600NF 3638NFGX1052UL Finish : Black Terminals : Screw Special Lever : Long Lever 3638NFGX1052UL 3600NF 3649NF/2G Finish : Black Terminals : Solder Lug Quick Connect Number Of Poles : Double Pole 3649NF/2G 3600NF 3635NFX1052 Terminals : Screw Special Lever : Long Lever Number Of Poles : Single Pole 3635NFX1052 3600NF 3645NFGUL Finish : Black Terminals : Screw Number Of Poles : Double Pole 3645NFGUL 3600NF 3644NFUL Terminals : Screw Number Of Poles : Double Pole Electrical Functions : ON ON ON 3644NFUL Electrical Functions : ON ON ON

Key Features

• Dielectric strength: 2.500 Vrms 50 Hz min. between terminals3.000 Vrms 50 Hz min. between terminals and frame
• Operating temperature: -40°C to +85°C Sealing to IP67 according to IEC 60529
• Torque: 1,50 Nm (1.10 Ft.lb) max. applied to nut
• Panel thickness: 2 mm (.079) max. with all accessories The 3646NF/2GX1052 Panel Switch, also known as the Toggles, is a versatile and efficient electrical component. With its double pole design, it ensures reliable and consistent perform
• Initial contact resistance: 10 mΩ max.
• Insulation resistance: 1.000 MΩ min. at 500VDC
• Electrical life: 10.000 cycles at full load
• Max. current/voltage rating with resistive load: 12A 28VDC
• Sealed to IP67 Solid silver contacts UL approved
• Versatile 3646NF/2 Panel Switch with double pole configuration, ON ON function, and quick connect mounting for easy installation and reliable circuit control.
• Sealed to IP67 Solid silver contacts UL ...
• Number Of Poles: Double Pole
• Electrical Functions: ON ON
• Mounting: Solder Lug Quick Connect
• Finish: Black
• Terminals: Solder Lug Quick Connect,Special Lever:Long Lever
• Solid silver contacts UL approved
• UL approved

Technical Specifications

Product Description

Specifications
