APEM Autoswitches Switches and Pushbutton

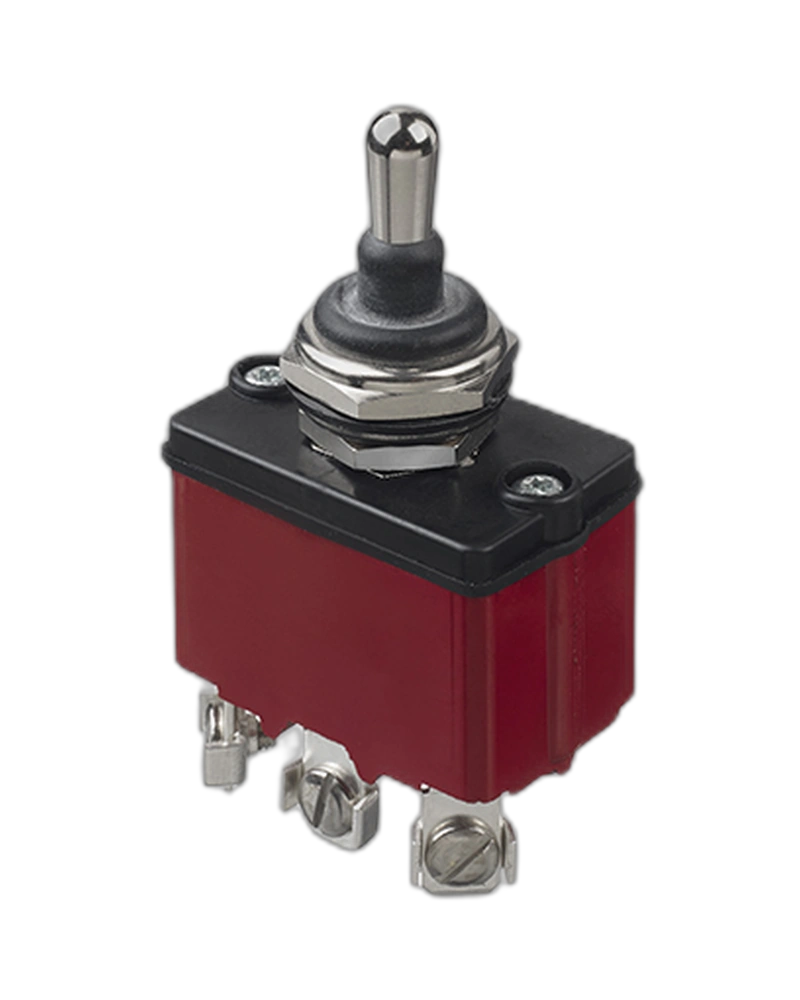

Panel Switches 3639NF/2 – Autoswitches UAE

The 3639NF/2 Panel Switch features a single pole design with ON-OFF-ON functionality, easily mountable via solder lug or quick connect for versatile electrical applications.
  • Brand APEM
  • Category Autoswitches
  • Subcategory Switches and Pushbutton
Interested in this product? Panel Switches 3639NF/2
Product insights

Everything you need to evaluate this product

Explore performance details, construction highlights, applications, and technical information in one clear overview.

Quality assured Technical details Industrial use Expert support

Panel Switches 3639NF/2

The 3639NF/2 Panel Switch features a single pole design with ON-OFF-ON functionality, easily mountable via solder lug or quick connect for versatile electrical applications. Select Quantity

Key Features

  • Dielectric strength: 2.500 Vrms 50 Hz min. between terminals3.000 Vrms 50 Hz min. between terminals and frame
  • Operating temperature: -40°C to +85°C Sealing to IP67 according to IEC 60529
  • Torque: 1,50 Nm (1.10 Ft.lb) max. applied to nut
  • Panel thickness: 2 mm (.079) max. with all accessories Sealed to IP67 Solid silver contacts UL approved Solid silver contacts UL approved UL approved Datasheet 3D CAD Files Name Last Updated File Type File Size toggle_switches_serie_3600
  • Initial contact resistance: 10 mΩ max.
  • Insulation resistance: 1.000 MΩ min. at 500VDC
  • Electrical life: 10.000 cycles at full load
  • Max. current/voltage rating with resistive load: 12A 28VDC
  • Sealed to IP67 Solid silver contacts UL approved
  • Datasheet 3D CAD Files Name Last Updated File Type File Size toggle_switches_serie_3600NF 16/08/2024
  • Datasheet 3D CAD Files Name Last Updated File Type File Size toggle_switches_serie_3600NF 27/02/2026
  • Number Of Poles: Single Pole
  • Finish: Black
  • Terminals: Solder Lug Quick Connect,Special Lever:Long Lever
  • Electrical Functions: ON OFF ON
  • Mounting: Solder Lug Quick Connect
  • Solid silver contacts UL approved
  • UL approved

Technical Specifications

Product Description

FeatureSpecification
Configurationsingle pole configuration

Product Description

FeatureSpecification
Configurationsingle pole configuration
FeatureSpecification
Dielectric strength2.500 Vrms 50 Hz min. between terminals3.000 Vrms 50 Hz min. between terminals and frame
Operating temperature-40°C to +85°C Sealing to IP67 according to IEC 60529
Torque1,50 Nm (1.10 Ft.lb) max. applied to nut
Insulation resistance1.000 MΩ min. at 500VDC
Max. current/voltage rating with resistive load12A 28VDC
Electrical FunctionsON OFF ON
MountingSolder Lug Quick Connect
