APEM Autoswitches Switches and Pushbutton

Panel Switches 3637NF/2UL – Autoswitches UAE

The 3637NF/2UL Panel Switch features a single pole design with MOM OFF MOM function, offering reliable control for lighting and electronic devices.

Brand APEM
Category Autoswitches
Subcategory Switches and Pushbutton

Interested in this product? Panel Switches 3637NF/2UL

Product insights

Everything you need to evaluate this product

Explore performance details, construction highlights, applications, and technical information in one clear overview.

Quality assured Technical details Industrial use Expert support

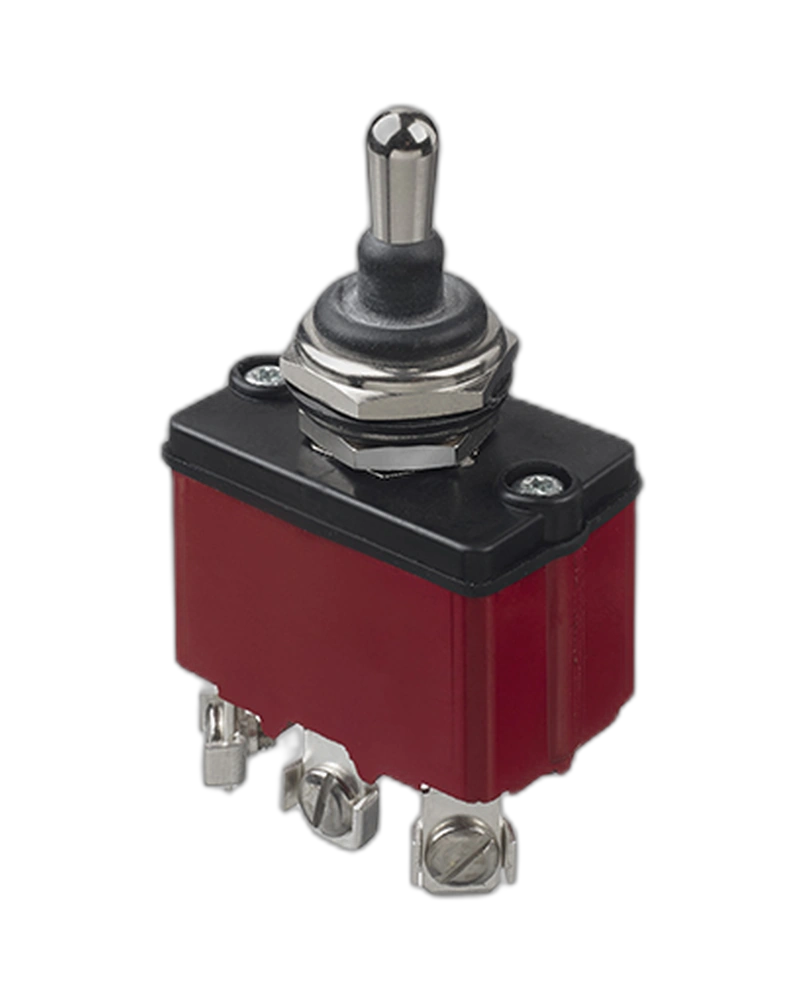

Panel Switches 3637NF/2UL

The 3637NF/2UL Panel Switch features a single pole design with MOM OFF MOM function, offering reliable control for lighting and electronic devices. Select Quantity

Key Features

Dielectric strength: 2.500 Vrms 50 Hz min. between terminals3.000 Vrms 50 Hz min. between terminals and frame
Operating temperature: -40°C to +85°C Sealing to IP67 according to IEC 60529
Torque: 1,50 Nm (1.10 Ft.lb) max. applied to nut
Panel thickness: 2 mm (.079) max. with all accessories
Initial contact resistance: 10 mΩ max.
Insulation resistance: 1.000 MΩ min. at 500VDC
Electrical life: 10.000 cycles at full load
Max. current/voltage rating with resistive load: 12A 28VDC
Sealed to IP67 Solid silver contacts UL approved
Number Of Poles: Single Pole
Terminals: Solder Lug Quick Connect
Electrical Functions: MOM OFF MOM
Solid silver contacts UL approved
UL approved

Technical Specifications

Feature	Specification
Sealing	IP67

Feature	Specification
Dielectric strength	2.500 Vrms 50 Hz min. between terminals3.000 Vrms 50 Hz min. between terminals and frame
Operating temperature	-40°C to +85°C Sealing to IP67 according to IEC 60529
Torque	1,50 Nm (1.10 Ft.lb) max. applied to nut
Panel thickness	2 mm (.079) max. with all accessories
Insulation resistance	1.000 MΩ min. at 500VDC
Max. current/voltage rating with resistive load	12A 28VDC
Electrical Functions	MOM OFF MOM
