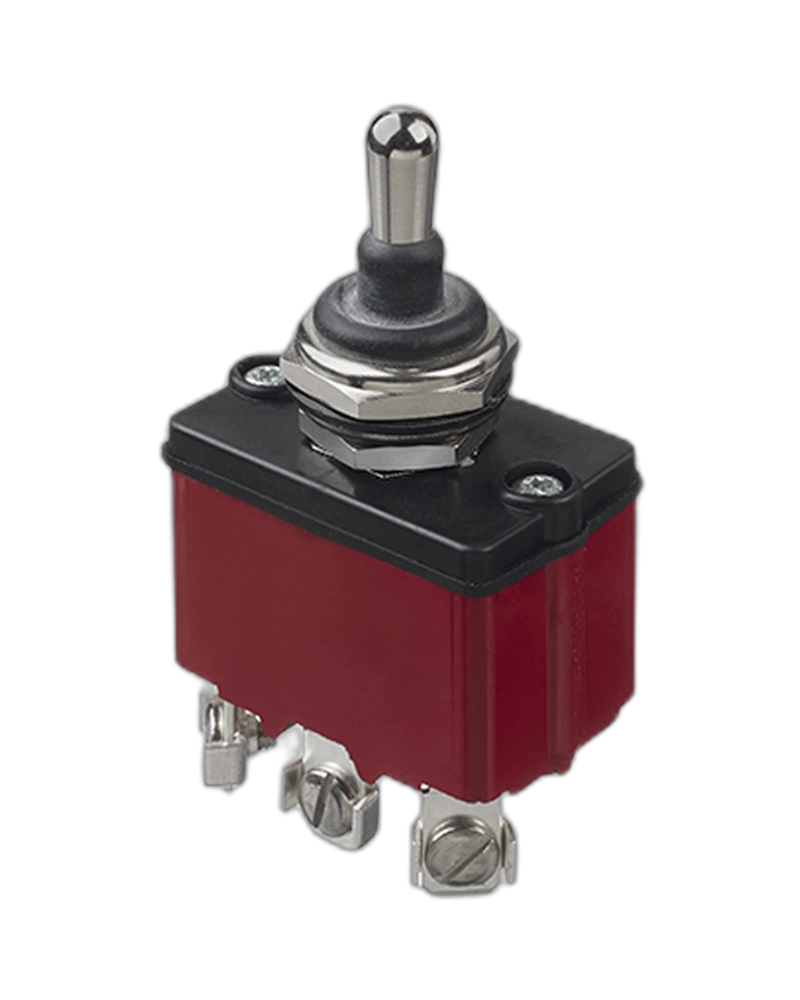

3631NFX1052 Efficient single pole toggle switch for seamless ON/OFF power control. Ideal for enhancing your electrical setup with reliable operation. Select Quantity
| Feature | Specification |
|---|---|
| Sealing | IP67 |
| Feature | Specification |
|---|---|
| Dielectric strength | 2.500 Vrms 50 Hz min. between terminals3.000 Vrms 50 Hz min. between terminals and frame |
| Operating temperature | -40°C to +85°C Sealing to IP67 according to IEC 60529 |
| Torque | 1,50 Nm (1.10 Ft.lb) max. applied to nut |
| Panel thickness | 2 mm (.079) max. with all accessories Sealed to IP67 Solid silver contacts UL approved Solid silver contacts UL approved UL approved |
| Insulation resistance | 1.000 MΩ min. at 500VDC |
| Max. current/voltage rating with resistive load | 12A 28VDC |
| Electrical Functions | ON OFF |
| Feature | Specification |
|---|---|
| Sealing | IP67 |
