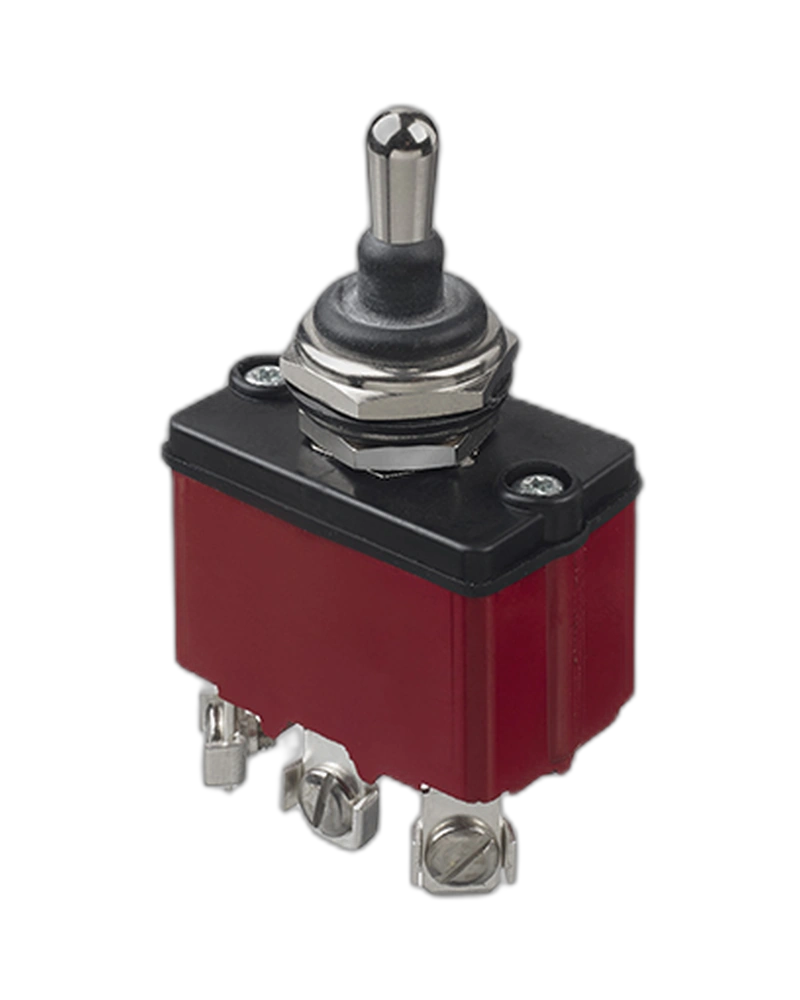

Panel Switches 3600NF
3600NF 3644NF The 3644NF Panel Switch features a sleek design, double pole configuration, and unique ON ON ON function for versatile control of lights and motors. Perfect for reliable electrical applications. Select Quantity
Key Features
- Dielectric strength: 2.500 Vrms 50 Hz min. between terminals3.000 Vrms 50 Hz min. between terminals and frame
- Operating temperature: -40°C to +85°C Sealing to IP67 according to IEC 60529
- Torque: 1,50 Nm (1.10 Ft.lb) max. applied to nut
- Panel thickness: 2 mm (.079) max. with all accessories Sealed to IP67 Solid silver contacts UL approved Solid silver contacts UL approved UL approved Datasheet 3D CAD Files Name Last Updated File Type File Size toggle_switches_serie_3600
- Initial contact resistance: 10 mΩ max.
- Insulation resistance: 1.000 MΩ min. at 500VDC
- Electrical life: 10.000 cycles at full load
- Max. current/voltage rating with resistive load: 12A 28VDC
- Sealed to IP67 Solid silver contacts UL approved
- Datasheet 3D CAD Files Name Last Updated File Type File Size toggle_switches_serie_3600NF 27/02/2026
- Number Of Poles: Double Pole
- Terminals: Screw
- Electrical Functions: MOM OFF MOM
- Finish: Black
- Solid silver contacts UL approved
- UL approved
- 12 amp rating
- Sealing to IP67 according to IEC 60529
- Datasheet 3D CAD Files Name Last Updated File Type File Size toggle_switches_serie_3600NF 27/02/2026 .PDF 1.72MB
- Mounting: Solder Lug Quick Connect
- Solder lug, quick-connect or screw terminals
- Solid silver contacts
- O-ring seal, molded–in terminals
- UL approval on select models
- numerous electrical configurations
Technical Specifications
Product Description
| Feature | Specification |
|---|
| Configuration | double pole configuration |
Specifications
| Feature | Specification |
|---|
| Sealing | IP67 |
| 6.35 (.25) | 0.80 (.031) |
| 2 | 6.35x0.80 (.25x.031) 0 1) |
| Case | phenolic resin |
| Actuator | brass, nickel plated |
