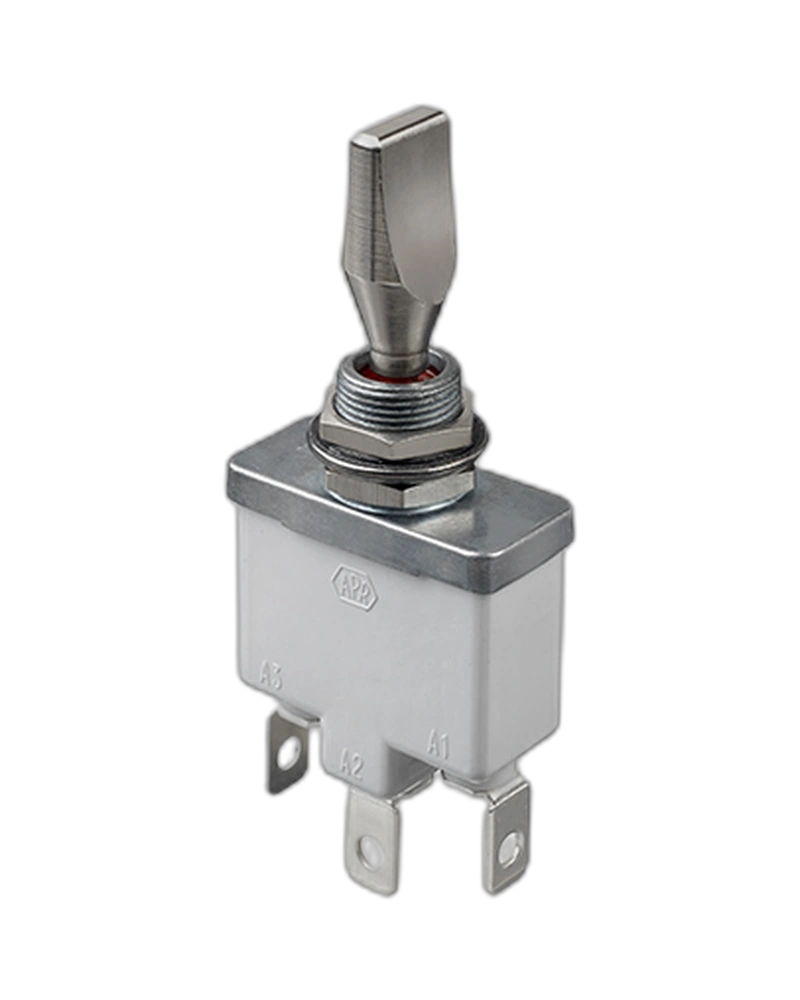

3537-021N000 Versatile 3537-021N000 Toggle Switch for single pole electrical applications, providing reliable control for various circuits. Select Quantity
| Feature | Specification |
|---|---|
| Length | 175 mm |
| Feature | Specification |
|---|---|
| finish | Bright Nickel,Lever locking styles:No Locking,Levers:Standard Length 175 mm (688) or Locking Length 20 mm (787),Accessories:2 Hex Nuts, 1 Locking Ring, and 1 Lock Washer |
| Initial contact resistance | 10 mΩ max. at 1 A 2 VDC |
| Dielectric strength | 2,500 Vrms 50 Hz min. between terminals3,000 Vrms 50 Hz min. between terminals and frame |
| Torque | 2 Nm (1.47 Ft.lb) max. applied to nut Completely sealed switches withstanding 0.1 bar pressure Approved to European standards CECC 96000 Three types of terminals Many lever styles available Approved to European standards |
| Operating temperature | -40 °c to +85 °C |
| Electrical Functions | MOM OFF MOM |
| Feature | Specification |
|---|---|
| Length | 175 mm |
