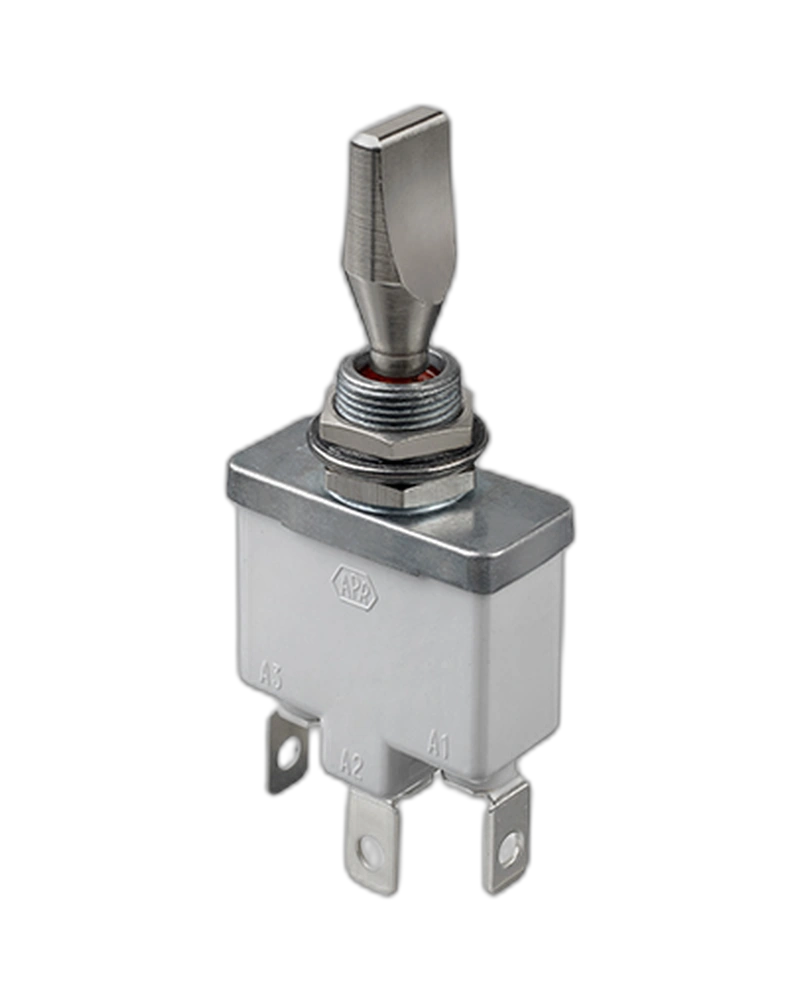

The APEM Panel Switches 3536-026ND00 is a single pole lever switch with locking functionality, designed for industrial applications. Featuring bright nickel finish, 254 mm length, and robust sealing to withstand 0.1 bar pressure, it meets CECC 96000 standards with high dielectric strength (2,500 Vrms 50 Hz) and insulation resistance (1,000 MΩ). Ideal for demanding environments requiring reliable operation from -40°C to +85°C.

Product Overview

The APEM Panel Switches 3536-026ND00 is a single pole lever switch engineered for industrial use, offering secure locking in the out-of-center position with a bright nickel finish. This switch provides exceptional durability through its completely sealed construction, capable of withstanding 0.1 bar pressure, and meets stringent European safety standards (CECC 96000). With a robust electrical performance including dielectric strength of 2,500 Vrms 50 Hz and insulation resistance of 1,000 MΩ, it ensures reliable operation across extreme temperature ranges (-40°C to +85°C) and high mechanical life (40,000 cycles). The switch features three terminal types and multiple lever styles for versatile integration into control systems.

Electrical Performance

The APEM Panel Switches 3536-026ND00 delivers reliable electrical performance with a maximum initial contact resistance of 10 mΩ at 1 A 2 VDC. It maintains high dielectric strength (2,500 Vrms 50 Hz) between terminals and withstands 3,000 Vrms 50 Hz between terminals and frame, ensuring robust electrical isolation in demanding environments. The switch also exhibits an insulation resistance of 1,000 MΩ, critical for preventing electrical faults in industrial systems.

Environmental Resilience

Engineered for extreme conditions, this switch operates effectively across a wide temperature range from -40°C to +85°C. Its completely sealed design withstands 0.1 bar pressure, making it suitable for harsh environments where moisture and dust could compromise functionality. The switch also demonstrates moisture resistance for up to 56 days, ensuring long-term reliability in industrial settings.

Mechanical Durability

With a mechanical life of 40,000 cycles, the APEM Panel Switches 3536-026ND00 is built to endure repeated use without degradation. The switch requires a maximum torque of 2 Nm (1.47 ft-lb) when tightening the nut, ensuring secure installation without damage. Its locking mechanism provides a stable, out-of-center position, reducing accidental activation in high-vibration environments.

Installation and Compatibility

The switch features solder lug quick connect levers for straightforward installation. It includes accessories such as two hex nuts, a locking ring, and a lock washer for secure mounting. The single pole configuration and three terminal types allow for versatile integration into control panels, while the bright nickel finish ensures a professional appearance in industrial applications.

Technical Specifications

Product Description

Specifications

Product Summary

The APEMPanel Switches 3536-026ND00 is presented using the documented product characteristics available for this model.
