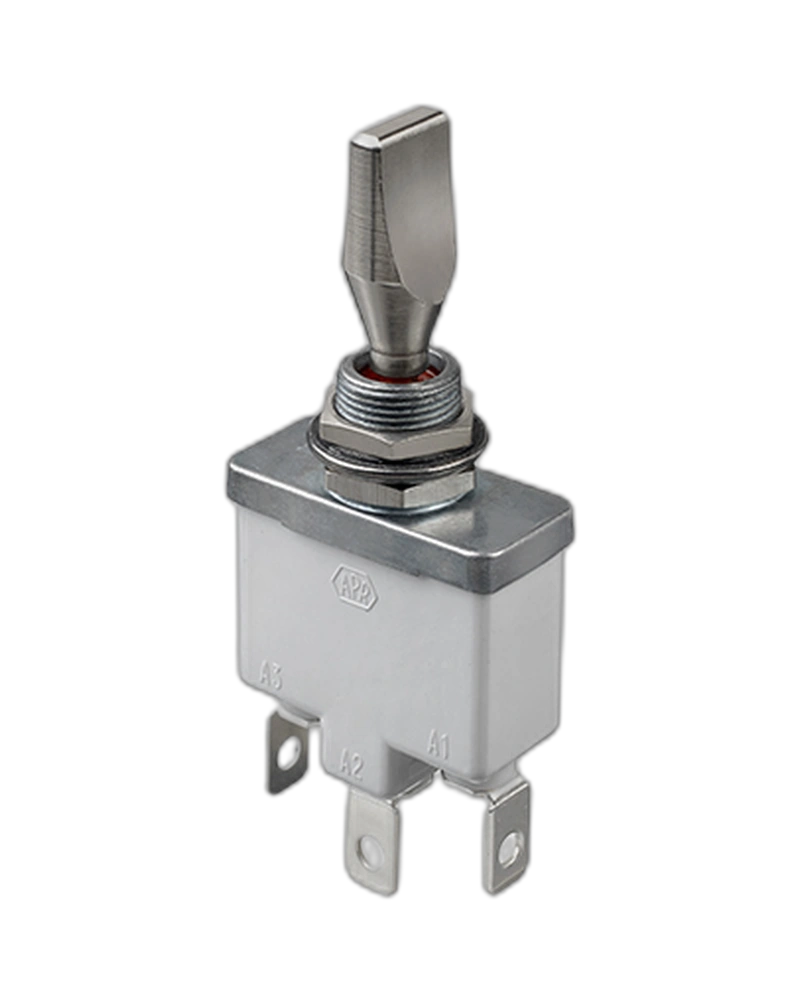

3500 3541-021N000 The 3541-021N000 Panel Switch features a double pole design for efficient power control, with levers available in standard (175 mm) or locking (20 mm) lengths for flexible handling. Select Quantity
Key Features
- finish: Bright Nickel,Lever locking styles:No Locking,Levers:Standard Length 175 mm (688) or Locking Length 20 mm (787),Accessories:2 Hex Nuts, 1 Locking Ring, and 1 Lock Washer
- Initial contact resistance: 10 mΩ max. at 1 A 2 VDC
- Dielectric strength: 2,500 Vrms 50 Hz min. between terminals3,000 Vrms 50 Hz min. between terminals and frame
- Torque: 2 Nm (1.47 Ft.lb) max. applied to nut Completely sealed switches withstanding 0.1 bar pressure Approved to European standards CECC 96000 Three types of terminals Many lever styles available Approved to European standards
- Insulation resistance: 1,000 MΩ
- Operating temperature: -40 °c to +85 °C
- Moisture resistance: 56 days Mechanical life : 40,000 cycles
- Completely sealed switches withstanding 0.1 bar pressure Approved to European standards CECC 96000 Three types of terminals Many lever styles available
- Approved to European standards CECC 96000 Three types of terminals Many lever styles available
- Datasheet 3D CAD Files Name Last Updated File Type File Size toggle_switches_serie_3500 07/11/2025 .PDF 3.68MB
- Number Of Poles: Single Pole,Lever
- Electrical Functions: MOM OFF MOM
- Three types of terminals Many lever styles available
- Many lever styles available
- Completely sealed switches withstanding 0.1 bar pressure
- Frontal sealing to IP67 and IP69K by a silicone membrane (for sealed panel mounting, add washer U60)
- Rear sealing to IP64 provided by moulded-in terminal inserts
- Approved to European standards CECC 96000
- 3 types of terminals
- Terminals: Solder Lug Quick Connect,Accessories:Sealed Mounting
Technical Specifications
Product Description
| Feature | Specification |
|---|
| Configuration | single pole configuration |
Specifications
| Feature | Specification |
|---|
| Length | 175 mm |
| ON-OFF and ON-ON | 10,000 cycles, T20 °C 15 A 28 VDC resistive 15 A 28 VDC inductive 5 A 28 VDC lamp |
| ON OFF ON | 10,000 cycles, T20 °C 15 A 28 VDC resistive 15 A 28 VDC inductive 5 A 28 VDC lamp |
| OTHER FUNCTIONS | 10,000 cycles, T20 °C 15 A 28 VDC resistive 10 A 28 VDC inductive 3 A 28 VDC lamp |
| III II I Ø11.90 32NS 15/32 32NS) | A1 |
| 00 9) III II A I Ø11.90 32NS (15/32 32NS) | A1 A3 A2 |
| Sealing | IP67 |
| Panel thickness | 5 mm (.196) max. |
| Actuator | brass, nickel or chrome plated, or anodized |
