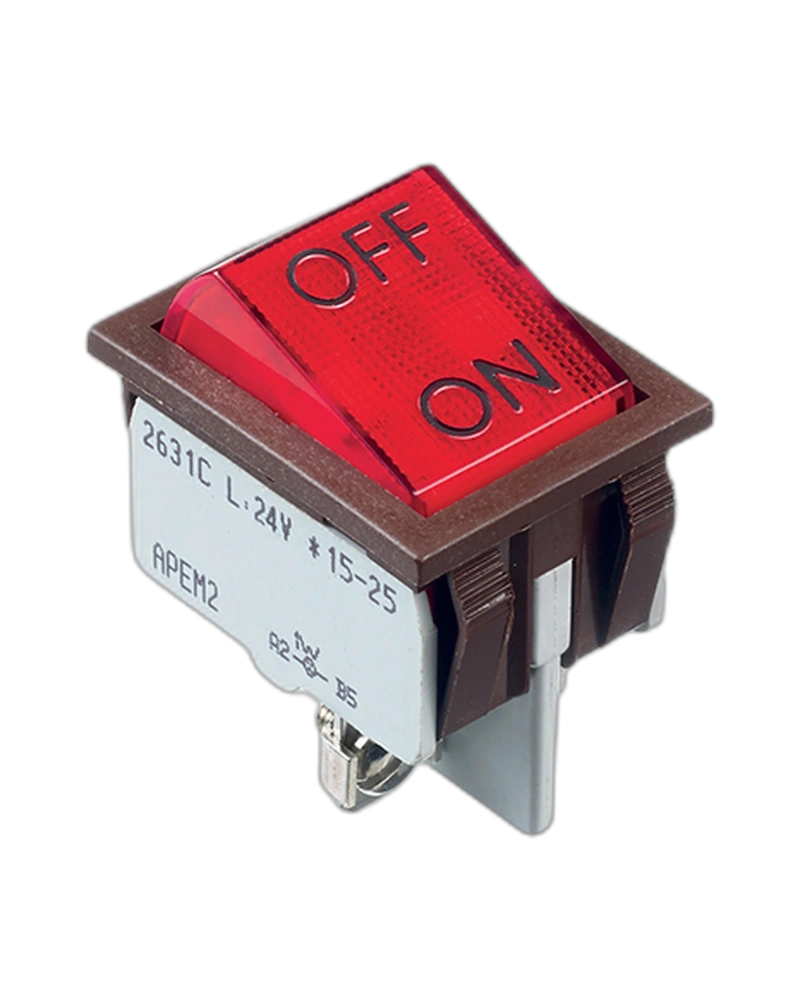

The APEM Panel Switches 2646LHA212000L0 is a double-pole autoswitch designed for industrial applications. Featuring silver contacts with an initial contact resistance of 10 mΩ max and electrical life of 10,000 cycles at full load, this switch operates reliably across temperatures from -20°C to +85°C for silver contacts. With UL, CSA, VDE, and NF (EN 61058-1) approvals, it offers robust performance for demanding environments.
The APEM Panel Switches 2646LHA212000L0 is a double-pole autoswitch engineered for industrial control systems, providing reliable switching performance in harsh conditions. This switch features silver contacts that maintain low resistance (10 mΩ max) and high durability with 10,000 cycles at full load. Its wide operating temperature range (-20°C to +85°C) ensures functionality in extreme environments, while UL, CSA, VDE, and NF (EN 61058-1) certifications guarantee compliance with international safety standards. The switch supports multiple rocker shapes and colors, with a standard black frame and plain rocker configuration, making it suitable for applications requiring precise control and robust electrical performance.
The APEM Panel Switches 2646LHA212000L0 delivers high electrical reliability with an insulation resistance of 1,000 MΩ min. at 500 VDC and dielectric strength of 2,500 Vrms 50 Hz min. between terminals, ensuring robust protection against electrical faults. Its initial contact resistance remains below 10 mΩ, minimizing energy loss during operation, while the electrical life of 10,000 cycles at full load supports long-term durability in industrial settings.
Engineered for diverse operational conditions, this switch operates within a temperature range of -20°C to +85°C for silver contacts, providing flexibility in both cold and hot environments. The robust construction ensures reliable performance across extreme temperature variations, making it ideal for applications where thermal stability is critical.
The APEM Panel Switches 2646LHA212000L0 meets stringent international safety standards, including UL, CSA, VDE, and NF (EN 61058-1) approvals. These certifications ensure the switch complies with global safety requirements, reducing risks associated with electrical hazards and ensuring safe operation in industrial systems.
With a panel thickness ranging from 0.8 mm to 4 mm (.031 to .157 inches), the switch accommodates various mounting requirements. The standard black frame with a plain rocker configuration offers versatility in color and shape options, including V-shaped and concave rocker designs, to suit different user preferences and application needs.
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,500 Vrms 50 Hz min. between terminals, 3,000 Vrms 50 Hz min. between terminals and metal panel |
| Operating temperature | - silver contacts (A) : -20 °C to +85 °C- silver plated contacts (C) : -10 °C to +55 °C |
| Panel thickness | 0.8 mm to 4 mm (.031 to .157) Three rocker shapes : plain, V-shaped or concave Various rocker colors Frame with protection guard on 2600LP models Illuminated or non-illuminated UL, CSA, VDE and NF (EN 61058-1) approved V |
| Electrical Functions | ON ON |
| Mounting | Screw Clamp |
The APEMPanel Switches 2646LHA212000L0 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,500 Vrms 50 Hz min. between terminals, 3,000 Vrms 50 Hz min. between terminals and metal panel |
| Operating temperature | - silver contacts (A) : -20 °C to +85 °C- silver plated contacts (C) : -10 °C to +55 °C |
| Panel thickness | 0.8 mm to 4 mm (.031 to .157) Three rocker shapes : plain, V-shaped or concave Various rocker colors Frame with protection guard on 2600LP models Illuminated or non-illuminated UL, CSA, VDE and NF (EN 61058-1) approved V |
| Electrical Functions | ON ON |
| Mounting | Screw Clamp |
