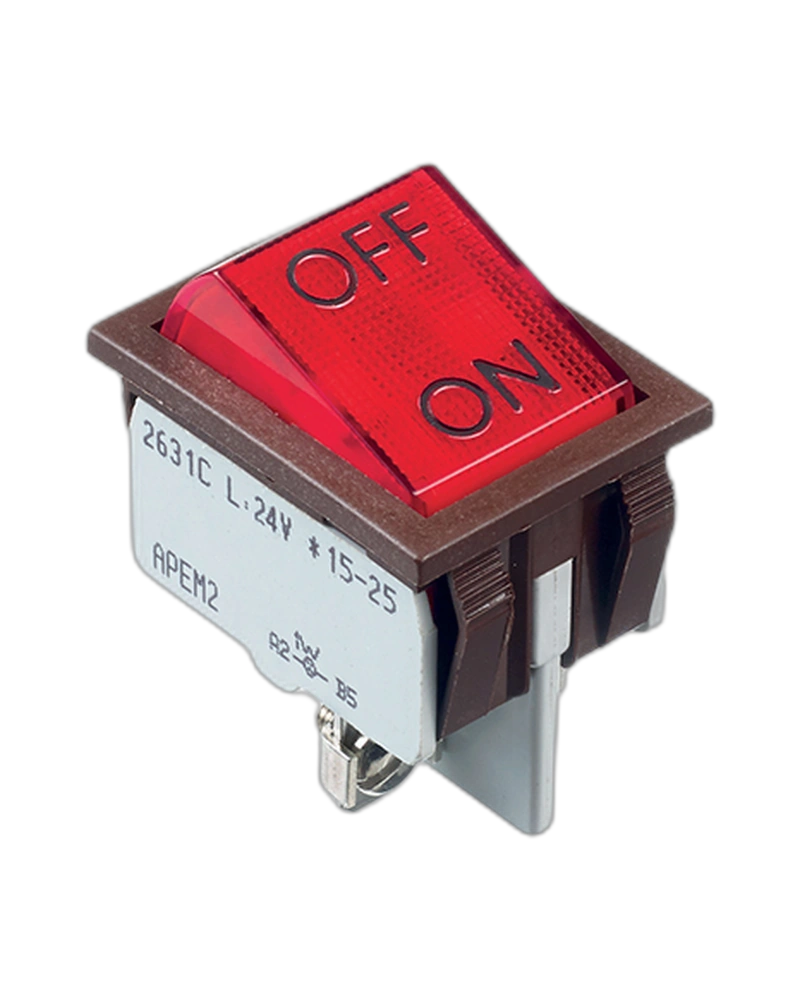

The APEM Panel Switches 2636LHA232000L0 is a single-pole autoswitch designed for industrial applications. Featuring silver contacts with an initial contact resistance of 10 mΩ max and electrical life of 10,000 cycles at full load, this switch offers robust performance in demanding environments. With UL, CSA, VDE, and NF (EN 61058-1) approvals, it ensures compliance for critical systems.
The APEM Panel Switches 2636LHA232000L0 is a single-pole autoswitch engineered for reliable operation in industrial settings. This switch delivers precise control with silver contacts that maintain low resistance (10 mΩ max) and withstand 10,000 cycles of full-load operation. Its robust construction includes a 0.8 mm to 4 mm panel thickness, three rocker shapes (plain, V-shaped, concave), and optional illumination, making it suitable for applications requiring high durability and compliance with international safety standards such as UL, CSA, VDE, and NF (EN 61058-1).
The APEM Panel Switches 2636LHA232000L0 delivers reliable electrical performance with an initial contact resistance of 10 mΩ max and electrical life of 10,000 cycles at full load. Its insulation resistance meets 1,000 MΩ min. at 500 VDC, ensuring minimal leakage current in high-voltage environments. The dielectric strength of 2,500 Vrms 50 Hz min. between terminals provides robust protection against electrical surges.
Engineered for diverse operational conditions, this switch operates within a temperature range of -20 °C to +85 °C for silver contacts, making it ideal for extreme environments. The panel thickness ranges from 0.8 mm to 4 mm (.031 to .157), accommodating various installation requirements while maintaining structural integrity.
The APEM Panel Switches 2636LHA232000L0 is certified to UL, CSA, VDE, and NF (EN 61058-1) standards, ensuring it meets stringent safety requirements for industrial applications. This certification guarantees reliable performance and user safety in critical systems where electrical safety is paramount.
Available in three rocker shapes (plain, V-shaped, concave) and multiple colors, this switch features a black frame with optional illumination. The 2600LP models include a protection guard, enhancing safety during operation. The switch is designed for both non-illuminated and illuminated configurations to suit specific application needs.
| Feature | Specification |
|---|---|
| Configuration | single pole configuration |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,500 Vrms 50 Hz min. between terminals, 3,000 Vrms 50 Hz min. between terminals and metal panel |
| Operating temperature | - silver contacts (A) : -20 °C to +85 °C- silver plated contacts (C) : -10 °C to +55 °C |
| Panel thickness | 0.8 mm to 4 mm (.031 to .157) Three rocker shapes : plain, V-shaped or concave Various rocker colors Frame with protection guard on 2600LP models Illuminated or non-illuminated UL, CSA, VDE and NF (EN 61058-1) approved V |
| Electrical Functions | ON ON |
The APEMPanel Switches 2636LHA232000L0 is presented using the documented product characteristics available for this model.
| Feature | Specification |
|---|---|
| Configuration | single pole configuration |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 2,500 Vrms 50 Hz min. between terminals, 3,000 Vrms 50 Hz min. between terminals and metal panel |
| Operating temperature | - silver contacts (A) : -20 °C to +85 °C- silver plated contacts (C) : -10 °C to +55 °C |
| Panel thickness | 0.8 mm to 4 mm (.031 to .157) Three rocker shapes : plain, V-shaped or concave Various rocker colors Frame with protection guard on 2600LP models Illuminated or non-illuminated UL, CSA, VDE and NF (EN 61058-1) approved V |
| Electrical Functions | ON ON |
