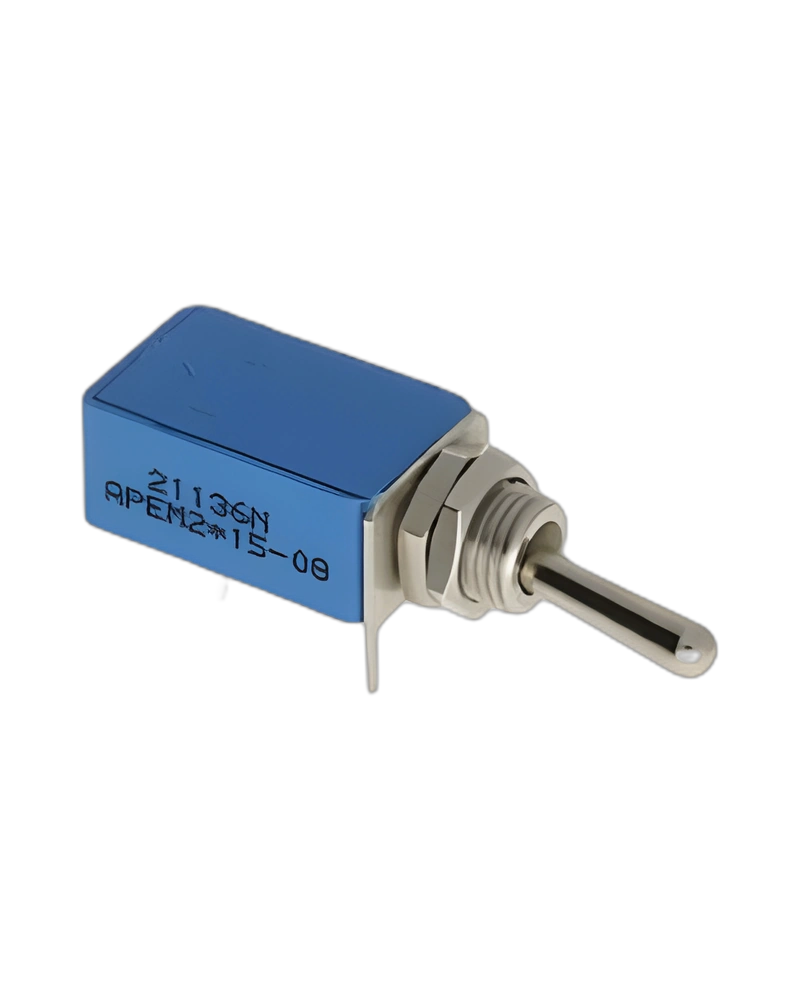

21000N 21136NA Panel Switch 21136NA: A single pole PCB switch designed for reliable on/off electrical functions. Select Quantity
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Minimum load | - silver contacts : 100 mA 10 V- gold plated brass contacts : 10 µA 5 VDC - 10 mA 50 mV |
| Force | 21000N |
| Environmental Specifications Operating temperature | -40 °C to +85 °C |
| Bottom view | III 1 2.3 2 3 4 5.6 5 6 II 1 2 3 4 5 6 I 1 1.2 2 3 4 4.5 5 6 |
| 2 5 | 1 2 3 4 5 6 |
| Version | N |
| Actuator | brass, nickel plated |
| Feature | Specification |
|---|---|
| Configuration | double pole configuration |
| Feature | Specification |
|---|---|
| Insulation resistance | 1,000 MΩ min. at 500 VDC |
| Dielectric strength | 1,000 Vrms 50 Hz min. between terminals2,000 Vrms 50 Hz min. between poles or terminals and frame Minimum load :- silver contacts : 100 mA 10 V- gold plated brass contacts : 10 µA 5 VDC - 10 mA 50 mV |
| Operating temperature | -40 °C to +85 °C Electrical life at full load :- silver contacts : 20,000 cycles- gold plated brass contacts : 50,000 cycles Low level or mechanical life : 100,000 cycles Low level or mechanical life : 100,000 cycles |
| Max. current/voltage rating with resistive load | - silver contacts : 4 A 30 VDC- gold plated brass contacts : 100 mA 30 VDC Minimum load :- silver contacts : 100 mA 10 V- gold plated brass contacts : 10 µA 5 VDC - 10 mA 50 mV |
| Sealing | Epoxy Sealed Terminals,Version:N |
| Electrical Functions | ON ON |
| Feature | Specification |
|---|---|
| Minimum load | - silver contacts : 100 mA 10 V- gold plated brass contacts : 10 µA 5 VDC - 10 mA 50 mV |
| Environmental Specifications Operating temperature | -40 °C to +85 °C |
