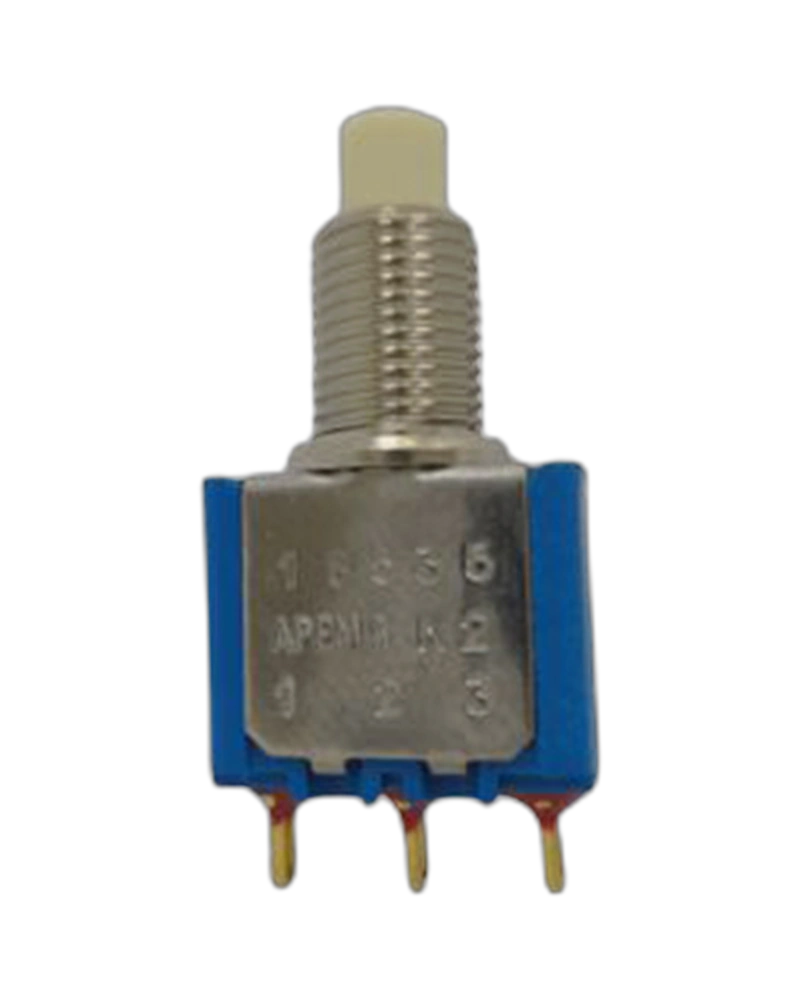

Panel Switches 18935AD

18935AD Mounting : Solder Lug or Straight PC Plungers : 4mm (0.157in) Number Of Poles : Single Pole 18000 18935AD Mounting : Solder Lug or Straight PC Plungers : 4mm (0.157in) Number Of Poles : Single Pole 18000 18845AD Mounting : Solder Lug or Straight PC Plungers : 4mm (0.157in) Number Of Poles : Double Pole 18845AD Number Of Poles : Double Pole 18000 18835CD Mounting : Solder Lug or Straight PC Number Of Poles : Single Pole Contact Materials : Brass (Gold-Plated) 18835CD Contact Materials : Brass (Gold-Plated) 18000 18835ADX662 Mounting : Solder Lug or Straight PC Number Of Poles : Single Pole Special Options : Snap-in Mounting 18835ADX662 Special Options : Snap-in Mounting 18000 18745CD-6 Mounting : Solder Lug or Straight PC Plungers : 3.1mm (0.122in), Length 5.85 mm (0.230in) Number Of Poles : Double Pole 18745CD-6 Plungers : 3.1mm (0.122in), Length 5.85 mm (0.230in) 18000 18735AD Mounting : Solder Lug or Straight PC Number Of Poles : Single Pole Contact Materials : Silver (Gold-Plated) 18735AD Contact Materials : Silver (Gold-Plated) 18000 18545CD-6 Mounting : Solder Lug or Straight PC Plungers : 3.1mm (0.122in), Length 5.85 mm (0.230in) Number Of Poles : Double Pole 18545CD-6 18000 18545CD Mounting : Solder Lug or Straight PC Number Of Poles : Double Pole Contact Materials : Brass (Gold-Plated) 18545CD 18000 18545AD Mounting : Solder Lug or Straight PC Number Of Poles : Double Pole Contact Materials : Silver (Gold-Plated) 18545AD 18000 18535CD-6 Mounting : Solder Lug or Straight PC Plungers : 3.1mm (0.122in), Length 5.85 mm (0.230in) Number Of Poles : Single Pole 18535CD-6 18000 18535CD-5 Mounting : Solder Lug or Straight PC Plungers : 3.1mm (0.122in), length 6.3 mm (0.248) Number Of Poles : Single Pole 18535CD-5 Plungers : 3.1mm (0.122in), length 6.3 mm (0.248) 18000 18535CD Mounting : Solder Lug or Straight PC Number Of Poles : Single Pole Contact Materials : Brass (Gold-Plated) 18535CD 18000 18535AD-6 Mounting : Solder Lug or Straight PC Plungers : 3.1mm (0.122in), Length 5.85 mm (0.230in) Number Of Poles : Single Pole 18535AD-6 18000 18535AD Mounting : Solder Lug or Straight PC Number Of Poles : Single Pole Contact Materials : Silver (Gold-Plated) 185

Key Features

• Dielectric strength: 1,000 Vrms 50 Hz min.
• Total travel: 0.5 mm (.019)
• Torque: 1.25 Nm (.922 Ft.lb) max. applied to nut Soldering : 300 °C, 3 sec. max. Soldering : 300 °C, 3 sec. max. Panel and PC mount models Snap-in panel mounting version Tactile feedback Snap-in panel mounting version Tactile fe
• Number Of Poles: Single Pole,Contact Materials:Silver (Gold-Plated),Plungers:4mm (0.157in),Terminals And Bushing:Straight PC Terminals with Flat Bushing
• Initial contact resistance: 50 mΩ max.
• Insulation resistance: 1,000 MΩ min.
• Electrical life: 60,000 cycles at full load
• Operating temperature: -30 °C to +65 °C
• Max. current/voltage rating with resistive load: - gold plated brass contacts : 100 mA - 30 VDC - gold plated silver contacts : 1 A 30 VDC
• Electrical Functions: ON MOM
• Panel and PC mount models Snap-in panel mounting version Tactile feedback
• Snap-in panel mounting version Tactile feedback
• Tactile feedback
