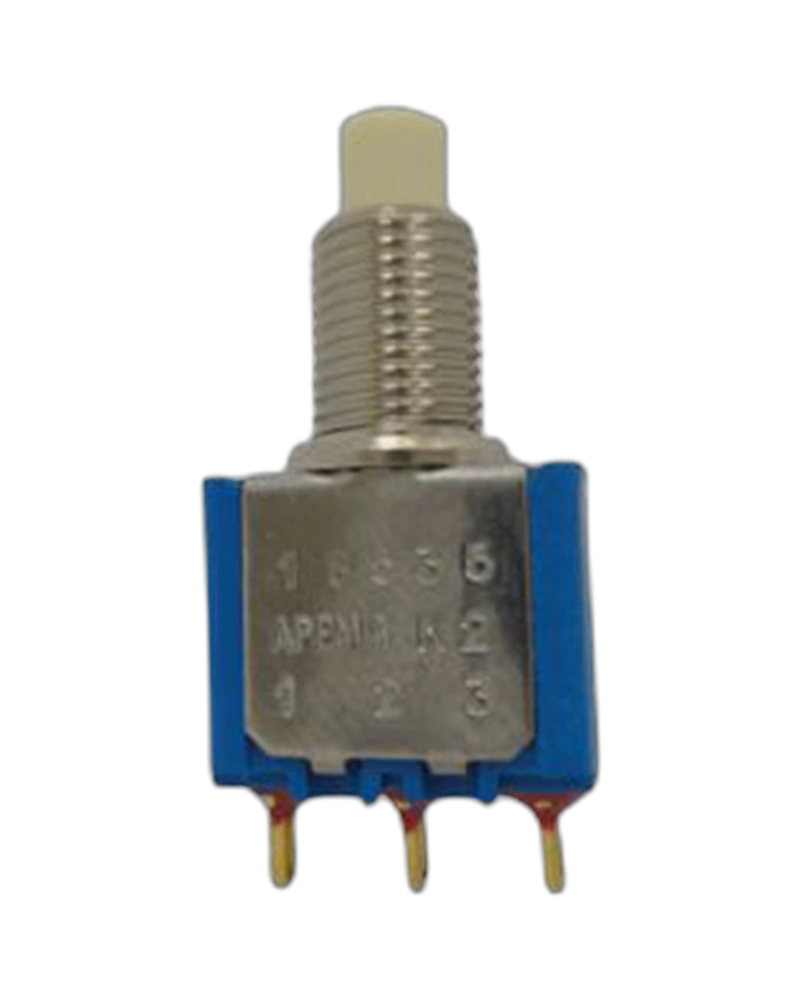

Panel Switches 18835ADX662

18835ADX662 Mounting : Solder Lug or Straight PC Number Of Poles : Single Pole Special Options : Snap-in Mounting 18000 18835ADX662 Mounting : Solder Lug or Straight PC Number Of Poles : Single Pole Special Options : Snap-in Mounting 18000 18745CD-6 Mounting : Solder Lug or Straight PC Plungers : 3.1mm (0.122in), Length 5.85 mm (0.230in) Number Of Poles : Double Pole 18745CD-6 Plungers : 3.1mm (0.122in), Length 5.85 mm (0.230in) Number Of Poles : Double Pole 18000 18735AD Mounting : Solder Lug or Straight PC Number Of Poles : Single Pole Contact Materials : Silver (Gold-Plated) 18735AD Contact Materials : Silver (Gold-Plated) 18000 18545CD-6 Mounting : Solder Lug or Straight PC Plungers : 3.1mm (0.122in), Length 5.85 mm (0.230in) Number Of Poles : Double Pole 18545CD-6 18000 18545CD Mounting : Solder Lug or Straight PC Number Of Poles : Double Pole Contact Materials : Brass (Gold-Plated) 18545CD Contact Materials : Brass (Gold-Plated) 18000 18545AD Mounting : Solder Lug or Straight PC Number Of Poles : Double Pole Contact Materials : Silver (Gold-Plated) 18545AD 18000 18535CD-6 Mounting : Solder Lug or Straight PC Plungers : 3.1mm (0.122in), Length 5.85 mm (0.230in) Number Of Poles : Single Pole 18535CD-6 18000 18535CD-5 Mounting : Solder Lug or Straight PC Plungers : 3.1mm (0.122in), length 6.3 mm (0.248) Number Of Poles : Single Pole 18535CD-5 Plungers : 3.1mm (0.122in), length 6.3 mm (0.248) 18000 18535CD Mounting : Solder Lug or Straight PC Number Of Poles : Single Pole Contact Materials : Brass (Gold-Plated) 18535CD 18000 18535AD-6 Mounting : Solder Lug or Straight PC Plungers : 3.1mm (0.122in), Length 5.85 mm (0.230in) Number Of Poles : Single Pole 18535AD-6 18000 18535AD Mounting : Solder Lug or Straight PC Number Of Poles : Single Pole Contact Materials : Silver (Gold-Plated) 18535AD 18000 18245YCD Mounting : Bracket Mounting Number Of Poles : Double Pole Contact Materials : Brass (Gold-Plated) 18245YCD Mounting : Bracket Mounting 18000 18245YAD Mounting : Bracket Mounting Number Of Poles : Double Pole Contact Materials : Silver (Gold-Plated) 18245YAD 18000 18245WCD-3 Mounting : Right Angle Horizontal Mounting Plungers : 4mm (0.157in) Number Of Poles : D

Key Features

• Dielectric strength: 1,000 Vrms 50 Hz min.
• Total travel: 0.5 mm (.019)
• Torque: 1.25 Nm (.922 Ft.lb) max. applied to nut Soldering : 300 °C, 3 sec. max. Soldering : 300 °C, 3 sec. max. Panel and PC mount models Snap-in panel mounting version Tactile feedback Snap-in panel mounting version Tactile fe
• Initial contact resistance: 50 mΩ max.
• Insulation resistance: 1,000 MΩ min.
• Electrical life: 60,000 cycles at full load
• Operating temperature: -30 °C to +65 °C
• Max. current/voltage rating with resistive load: - gold plated brass contacts : 100 mA - 30 VDC - gold plated silver contacts : 1 A 30 VDC
• The 18835ADX662 Panel Switch features a single pole design for efficient electrical control, offering reliability and a sleek, professional appearance for any panel.
• Number Of Poles: Single Pole,Contact Materials:Silver (Gold-Plated),Terminals And Bushing:Solder Lug Terminals, Snap-In Mounting,Special
• Options: Snap-in Mounting
• Electrical Functions: ON
• Panel and PC mount models Snap-in panel mounting version Tactile feedback
• Snap-in panel mounting version Tactile feedback
• Tactile feedback
