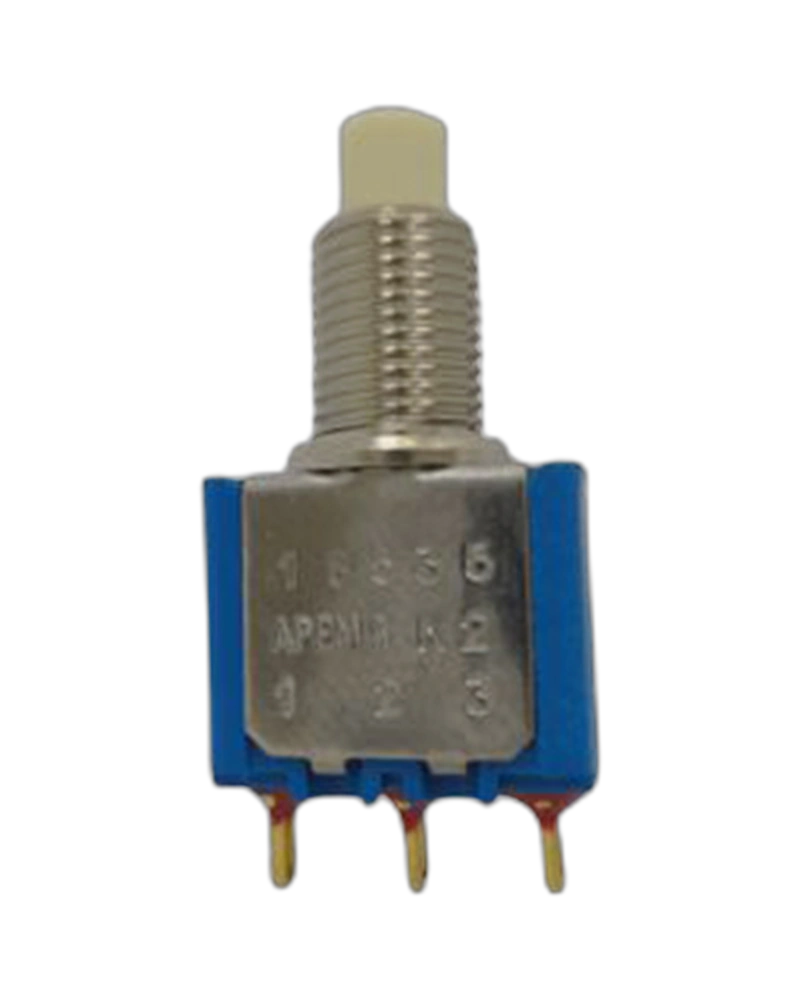

Panel Switches 18545CD-6
18545CD-6 Mounting : Solder Lug or Straight PC Plungers : 3.1mm (0.122in), Length 5.85 mm (0.230in) Number Of Poles : Double Pole 18000 18545CD-6 Mounting : Solder Lug or Straight PC Plungers : 3.1mm (0.122in), Length 5.85 mm (0.230in) Number Of Poles : Double Pole 18000 18545CD Mounting : Solder Lug or Straight PC Number Of Poles : Double Pole Contact Materials : Brass (Gold-Plated) 18545CD Contact Materials : Brass (Gold-Plated) 18000 18545AD Mounting : Solder Lug or Straight PC Number Of Poles : Double Pole Contact Materials : Silver (Gold-Plated) 18545AD Contact Materials : Silver (Gold-Plated) 18000 18535CD-6 Mounting : Solder Lug or Straight PC Plungers : 3.1mm (0.122in), Length 5.85 mm (0.230in) Number Of Poles : Single Pole 18535CD-6 Number Of Poles : Single Pole 18000 18535CD-5 Mounting : Solder Lug or Straight PC Plungers : 3.1mm (0.122in), length 6.3 mm (0.248) Number Of Poles : Single Pole 18535CD-5 Plungers : 3.1mm (0.122in), length 6.3 mm (0.248) 18000 18535CD Mounting : Solder Lug or Straight PC Number Of Poles : Single Pole Contact Materials : Brass (Gold-Plated) 18535CD 18000 18535AD-6 Mounting : Solder Lug or Straight PC Plungers : 3.1mm (0.122in), Length 5.85 mm (0.230in) Number Of Poles : Single Pole 18535AD-6 18000 18535AD Mounting : Solder Lug or Straight PC Number Of Poles : Single Pole Contact Materials : Silver (Gold-Plated) 18535AD 18000 18245YCD Mounting : Bracket Mounting Number Of Poles : Double Pole Contact Materials : Brass (Gold-Plated) 18245YCD Mounting : Bracket Mounting 18000 18245YAD Mounting : Bracket Mounting Number Of Poles : Double Pole Contact Materials : Silver (Gold-Plated) 18245YAD 18000 18245WCD-3 Mounting : Right Angle Horizontal Mounting Plungers : 4mm (0.157in) Number Of Poles : Double Pole 18245WCD-3 Mounting : Right Angle Horizontal Mounting Plungers : 4mm (0.157in) 18000 18245CD Mounting : Solder Lug or Straight PC Number Of Poles : Double Pole Contact Materials : Brass (Gold-Plated) 18245CD 18000 18245AD Mounting : Solder Lug or Straight PC Number Of Poles : Double Pole Contact Materials : Silver (Gold-Plated) 18245AD 18000 18235YCD-5 Mounting : Bracket Mounting Plungers : 3.1mm (0.122in), length 6.3 mm (0.248)
Key Features
- Torque: 1.25 Nm (.922 Ft.lb) max. applied to nut Soldering : 300 °C, 3 sec. max. Soldering : 300 °C, 3 sec. max. Panel and PC mount models Snap-in panel mounting version Tactile feedback Snap-in panel mounting version Tactile fe
- Max. current/voltage rating with resistive load: - gold plated brass contacts : 100 mA - 30 VDC - gold plated silver contacts : 1 A 30 VDC
- Electrical Functions: ON
- Panel and PC mount models Snap-in panel mounting version Tactile feedback
- Snap-in panel mounting version Tactile feedback
- Tactile feedback
Technical Specifications
Product Description
| Feature | Specification |
|---|
| Configuration | double pole configuration |
Specifications
| Feature | Specification |
|---|
| Number Of Poles | Double Pole,Contact Materials:Brass (Gold-Plated),Plungers:3.1mm (0.122in), Length 5.85 mm (0.230in),Terminals And Bushing:Solder Lug Terminals |
| Dielectric strength | 1,000 Vrms 50 Hz min. |
| Total travel | 0.5 mm (.019) |
| Initial contact resistance | 50 mΩ max. |
| Insulation resistance | 1,000 MΩ min. |
| Electrical life | 60,000 cycles at full load |
| Operating temperature | -30 °C to +65 °C |
| Length | 5.85 mm |
